Executive Summary
A.1
Alchmex – Paul Y Joint Venture (“Contractor”) commenced
the construction works of Highway Department (HyD) Central Kowloon Route
Contract No. HY/2018/02 – Section of Kai Tak East (“The Project”) on 9 September
2019. This report is the 40th monthly Environmental Monitoring and
Audit (EM&A) report presenting the EM&A works carried out during the
period from 1 December 2022 to 31 December 2022.
A.2
A summary of major Construction activities provided
by Contractor for the Project during the reporting month is listed below.
|
Construction
Activities undertaken
|
|
·
S1, S3, S4, S9, CKRE, CKRW Bridge Construction
·
Retaining Wall Construction at U-Turn &
Portion 2B
·
Excavation Work at Portion 3B
·
Bored Pile at U-Turn
|
A.3
A summary of regular construction dust
monitoring activities in this reporting period is listed below:
Construction dust
(24-hour TSP) monitoring
Construction dust (1-hour
TSP) monitoring
A.4
Joint weekly site inspections were conducted by
representatives of Environmental team (ET), Contractor and Engineer on 7, 14, 21
and 28 December 2022. A joint site inspection with Independent Environmental
Checker (IEC) was undertaken on 14 December 2022. Details of the audit findings
and implementation status are presented in Section 5.
A.5
Bi-weekly inspection of the implementation of
landscape and visual mitigation measures by ET was conducted on 7 and 21 December
2022. Details of the audit findings and implementation status are presented in
Section 5.
A.6

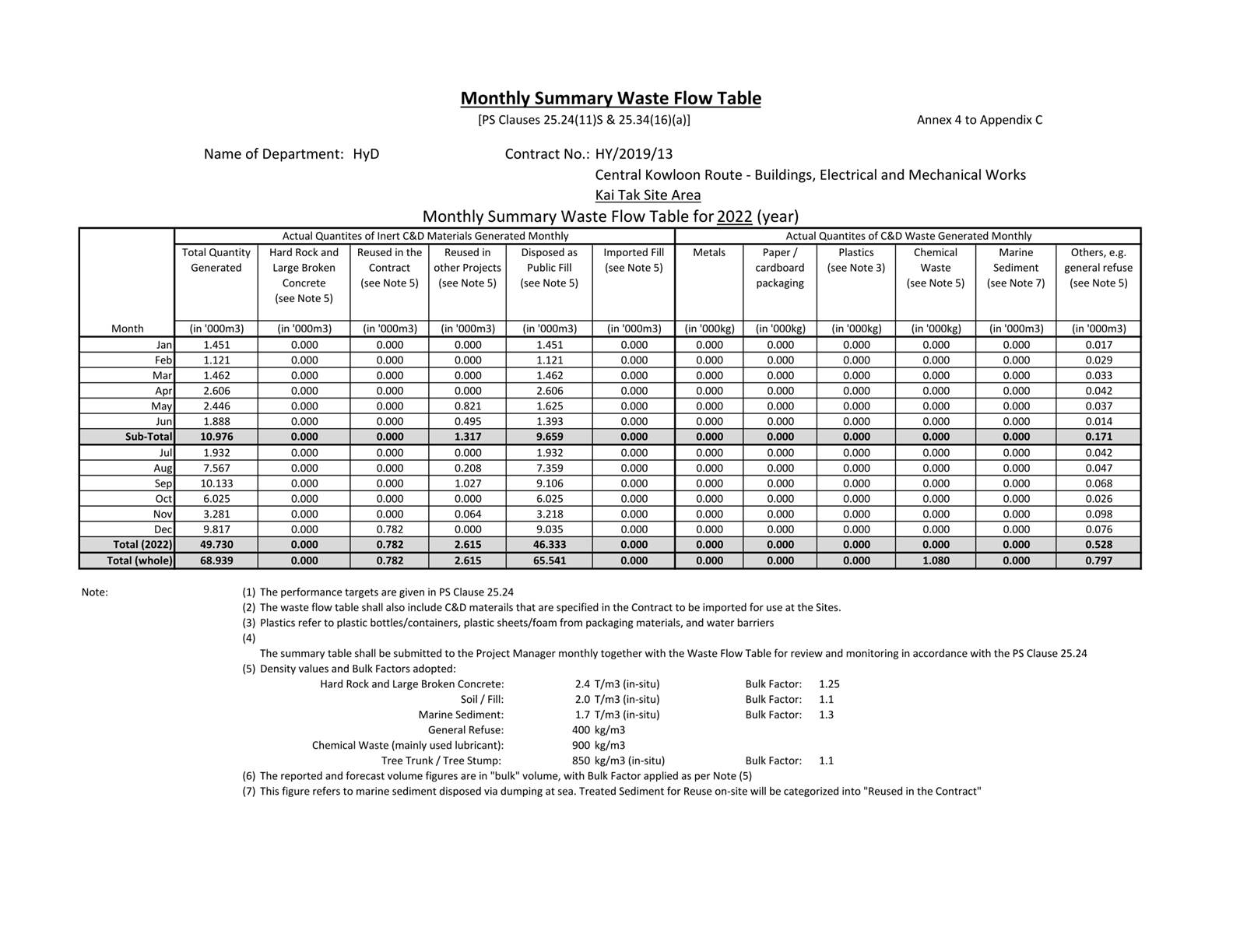

Details of waste management are presented in Section
4.
A.7
No exceedance of the Action and Limit Levels of
24-hour TSP and 1-hour TSP monitoring were recorded during the reporting month.
A.8
No complaint or non-compliance was received in
the reporting month.
A.9
No notification of summons and prosecution was
received in the reporting period.
A.10
A summary of construction activities provided by
the Contractor in next reporting month is listed below:
|
Construction
Activities to be undertaken
|
|
·
S1, S3, S4, S9 CKRE, CKRW Bridge Construction
·
Retaining Wall Construction at U-Turn & Portion
2B
·
Excavation Work at Portion 3B
·
Bored Pile at U-turn
|
1.
Basic Project
Information
1.1.
Central Kowloon Route (CKR) is a 4.7 km long
dual 3-lane trunk road in Central Kowloon linking Yau Ma Tei Interchange in
West Kowloon with the road network on Kai Tak Development and Kowloon Bay in
East Kowloon.
1.2.
The Central Kowloon Route – Design and
Construction Environmental Impact Assessment Report (Register No.:
AEIAR-171/2013) was approved with conditions by the Environmental Protection
Department (EPD) on 11 July 2013. An Environmental Permit (EP 457/2013) was
issued on 9 August 2013. Variations of EP (VEP) was
subsequently applied for and the latest EP (EP-457/2013/D) was issued by EPD on
15 June 2021.
1.3. The construction of the CKR had been divided into different
sections. This Contract No. HY/2018/02 – Section of Kai Tak East (KTE) covers
part of the construction activities located at Kai Tak under the EP which
includes:
ž
Section of Kai Tak East
i.
construction of an approximately 700m long dual
2-lane Central Kowloon Route mainline at Kai Tak, including at-grade roads and
bridges;
ii.
construction of Kai Tak Interchange, including
bridges, underpass, and associated at-grade slip roads, connecting the Central
Kowloon Route with the existing road network;
iii.
construction of a footbridge, and
demolition/backfill of an existing subway across Kai Fuk Road;
iv.
realignment of existing Kai Fuk Road, Kai Cheung
Road and Kai Cheung Road/Kai Fuk Road loop road;
v.
reconstruction of an approximately 30m long
existing multi-cell box culvert;
vi.
construction of an approximately 130m long
underground ventilation and E&M audit;
vii.
construction of Ring Road Underpass, connecting
Central Kowloon Route mainline and Central Kowloon Route Administration
Building;
viii.
junction improvement works at existing Wang
Kwong Road/Kai Cheung Road and Wang Kwong Road/Lam Hing Street junctions;
ix.
arrangement and implementation of cross boundary
disposal of construction and demolition materials; and
x.
associated roadworks, drainage, waterworks,
landscaping works, geotechnical works, and electrical and mechanical works.

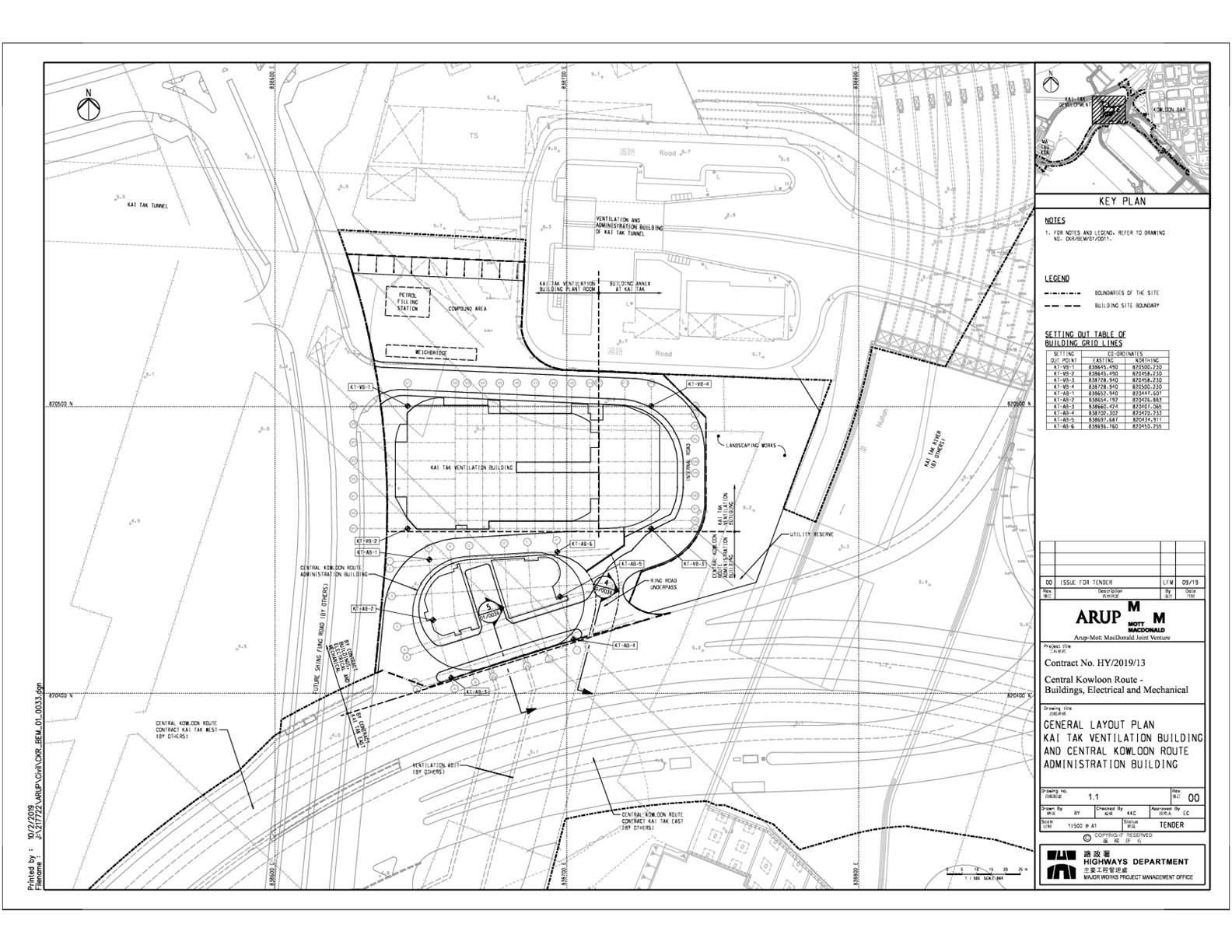

1.4.

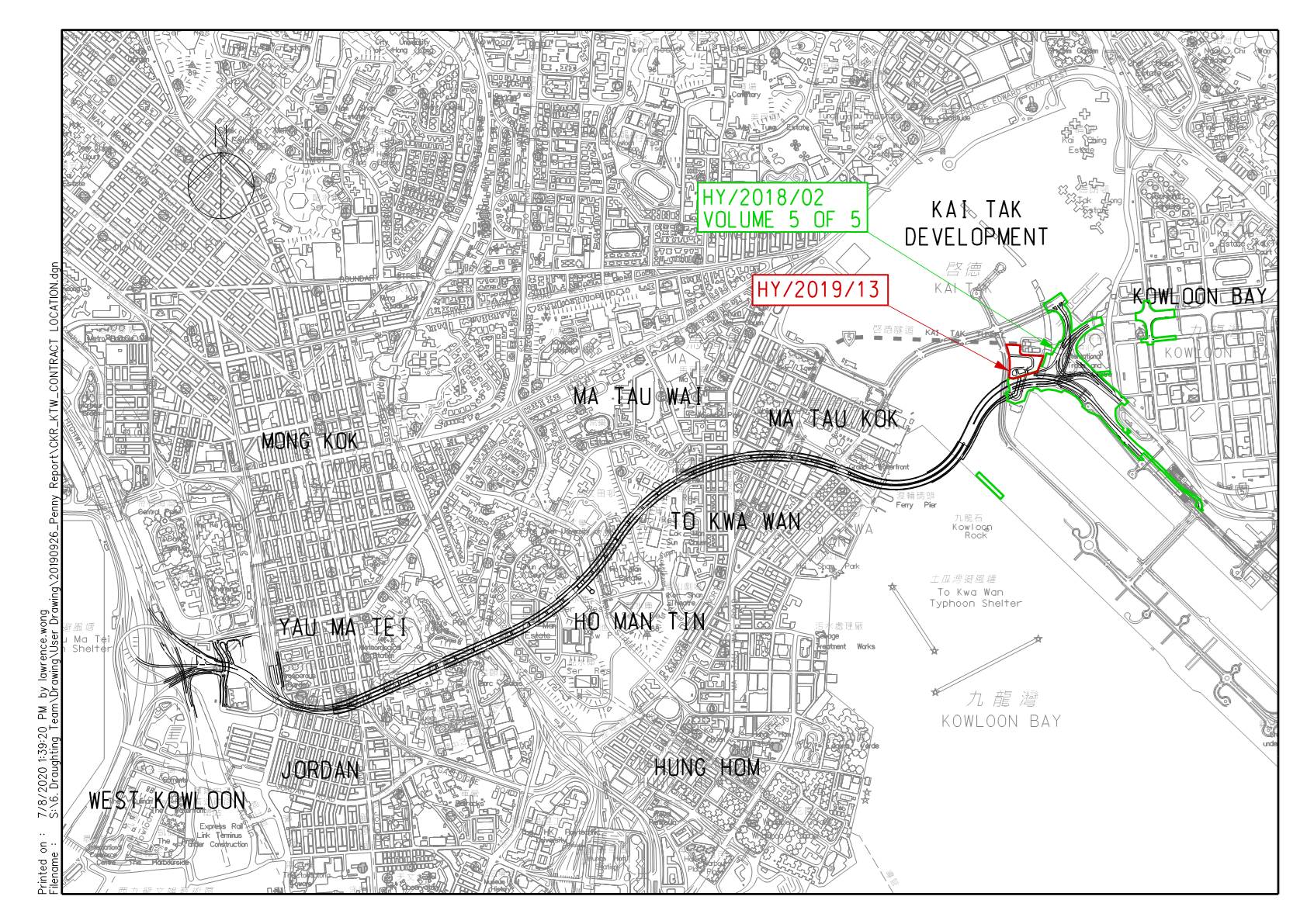

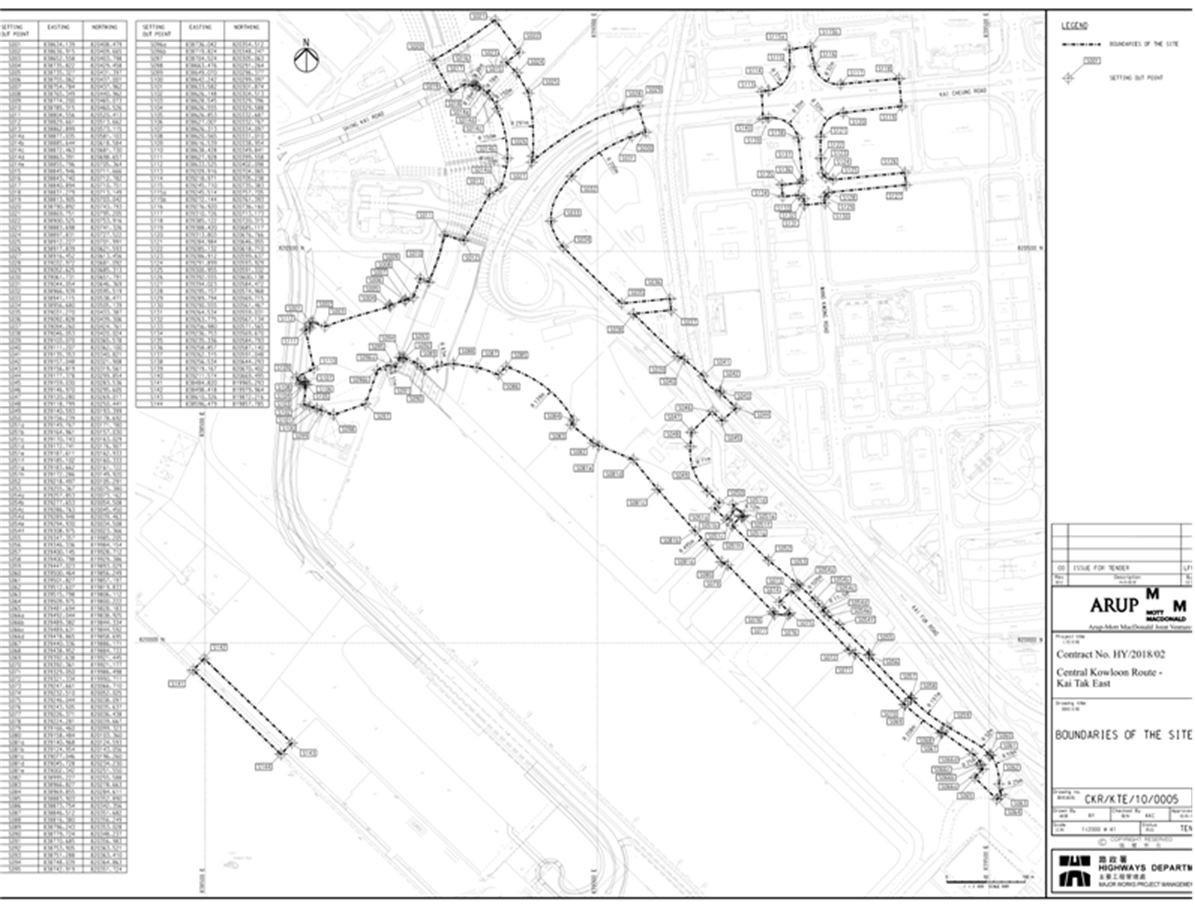

The alignment and works area for the Contract
No. HY/2018/02 - are shown in Appendix A.

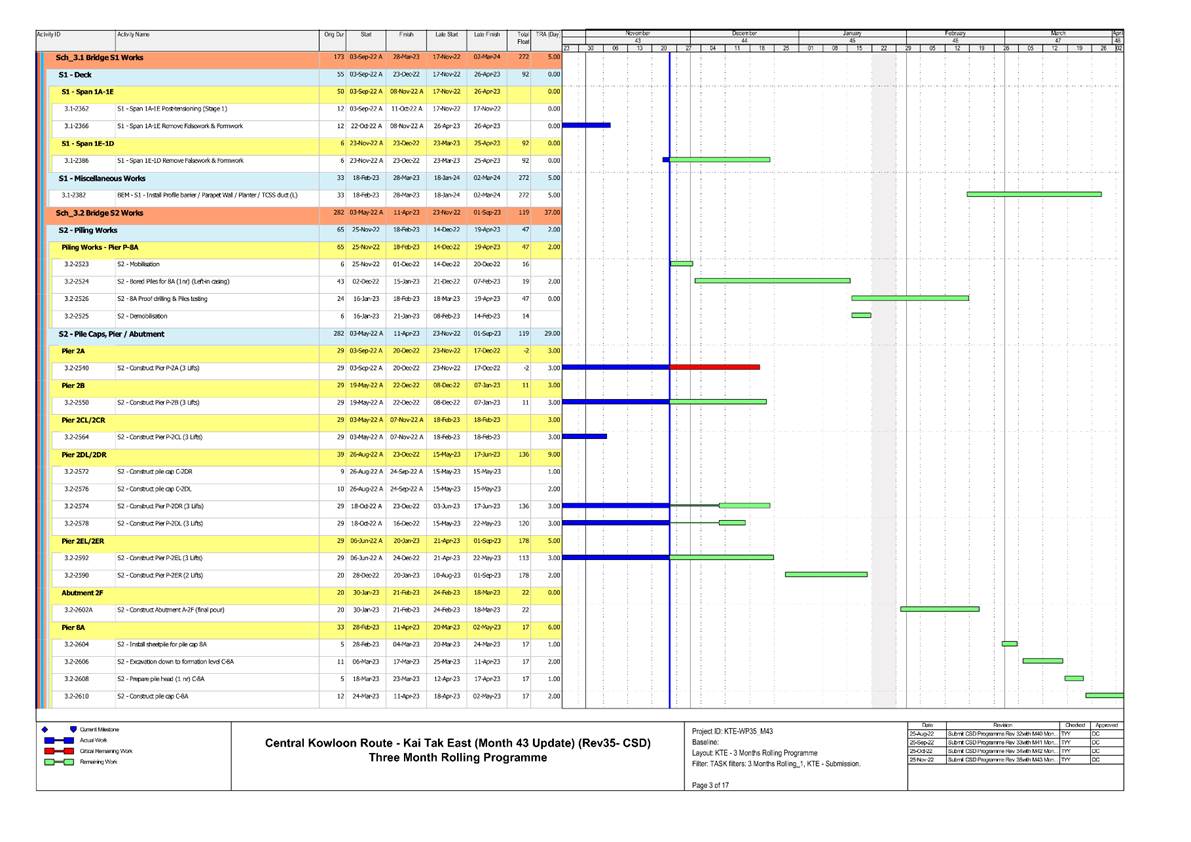

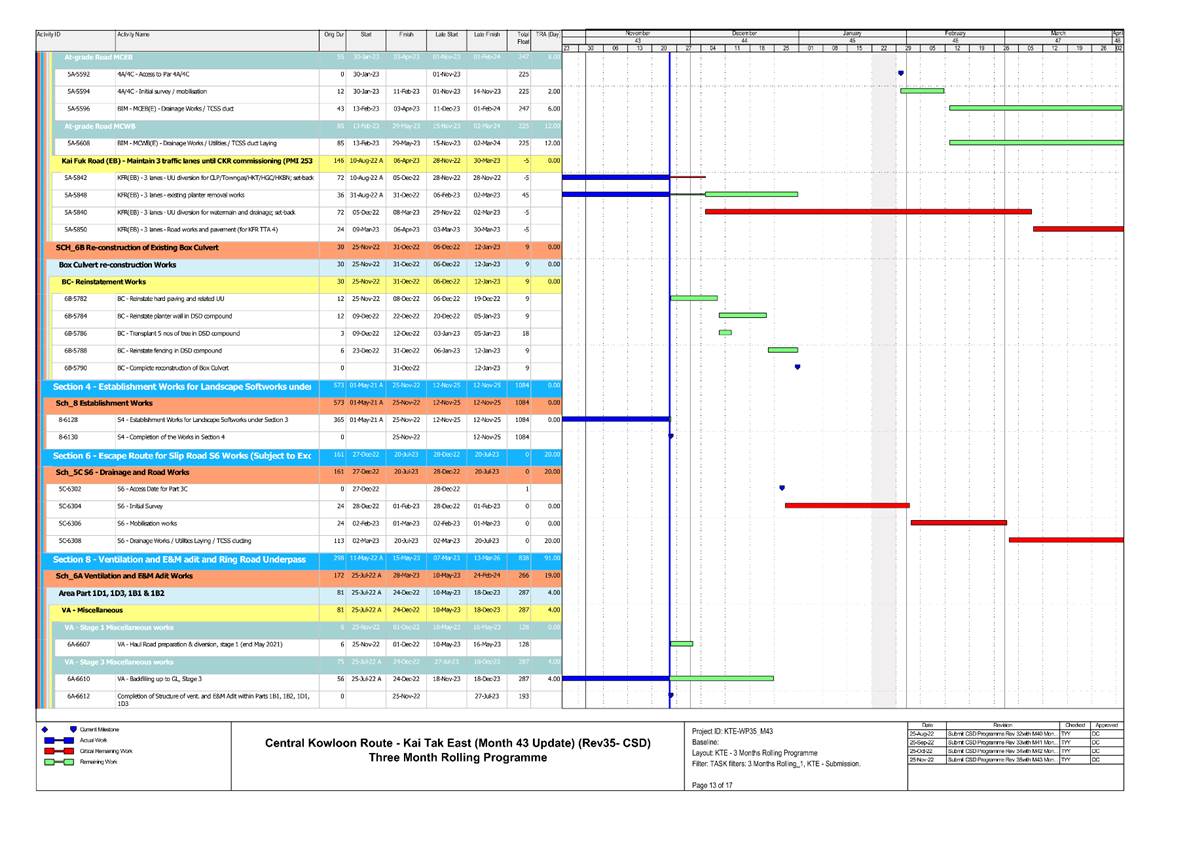

1.5.
A summary of major construction activities
provided by the Contractor in this reporting period is shown in Table 1.1.

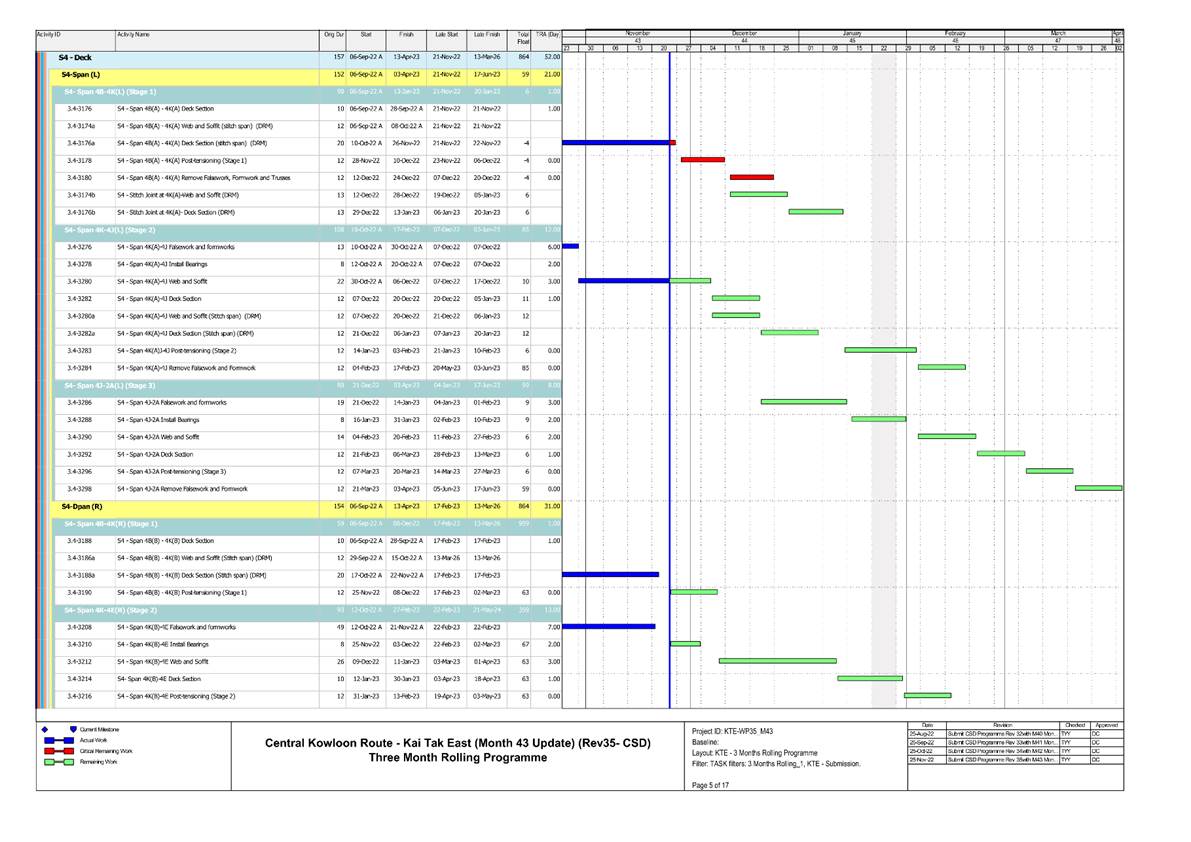

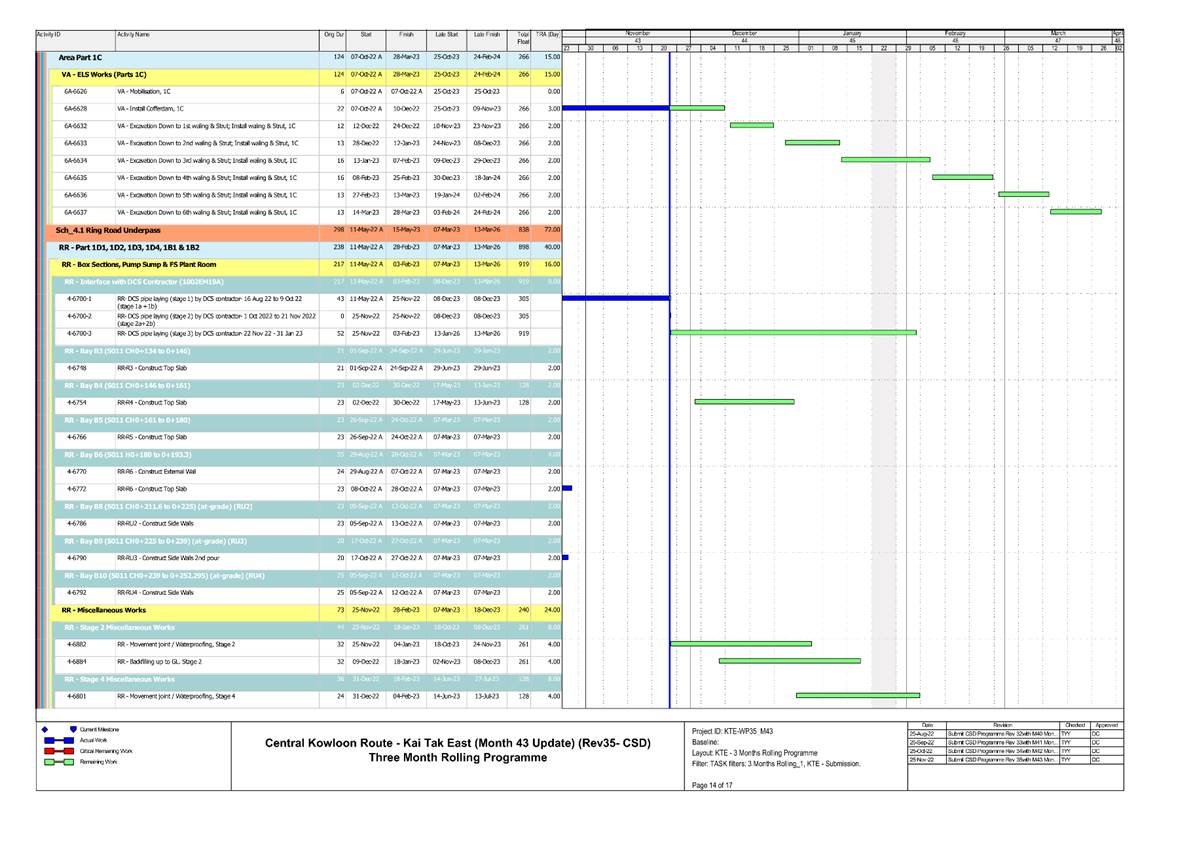

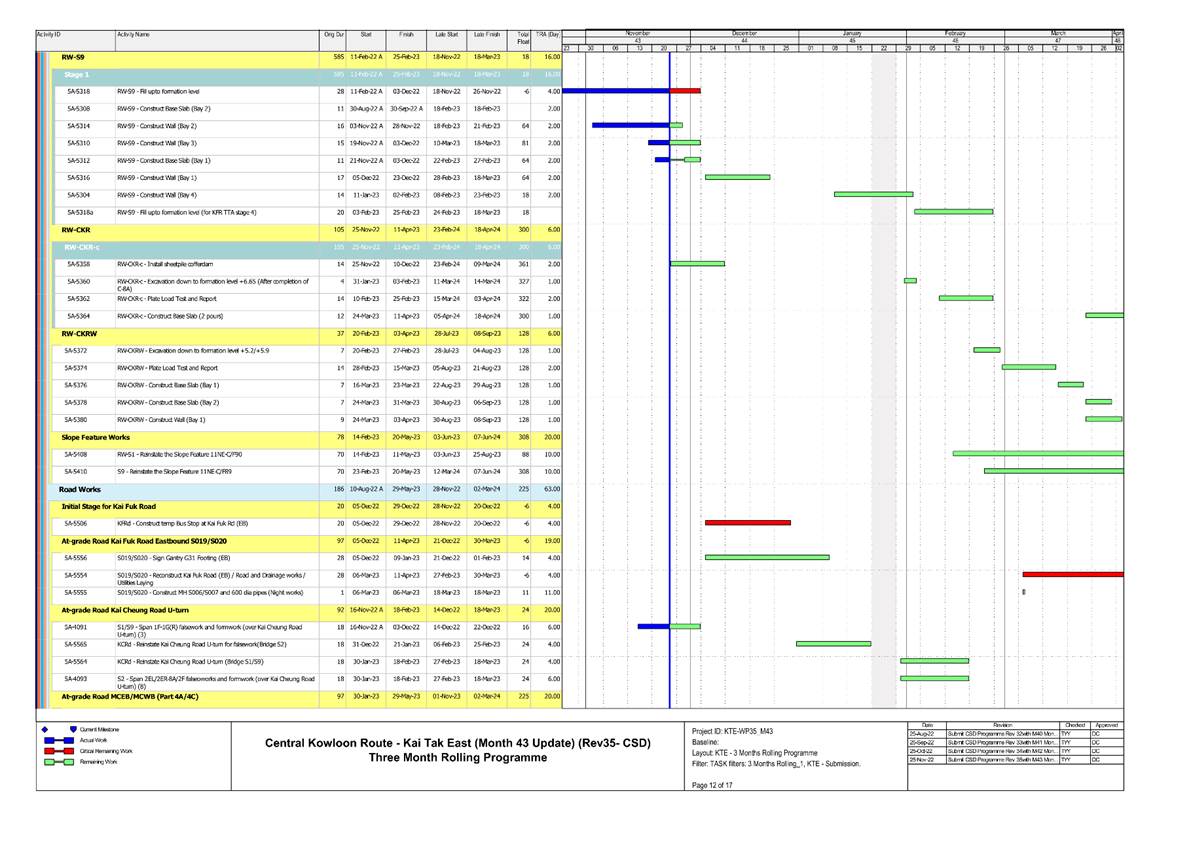

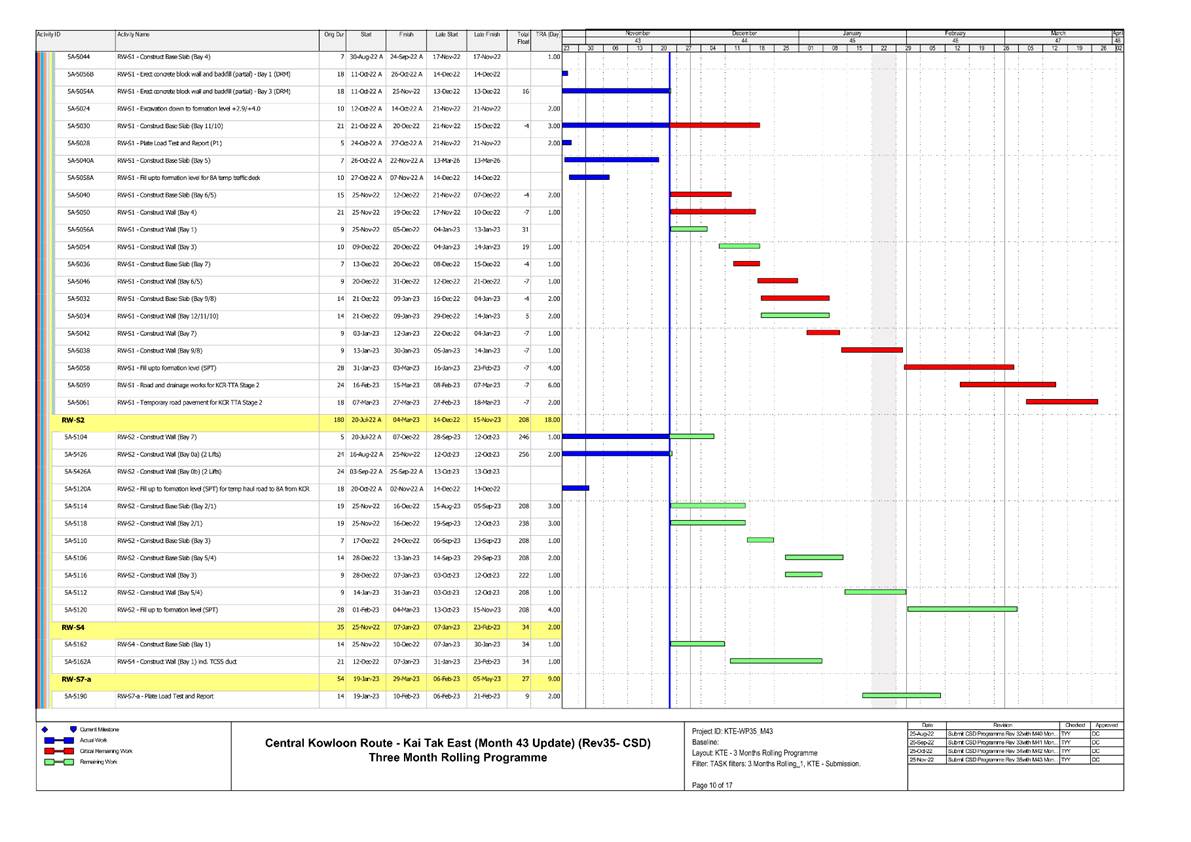

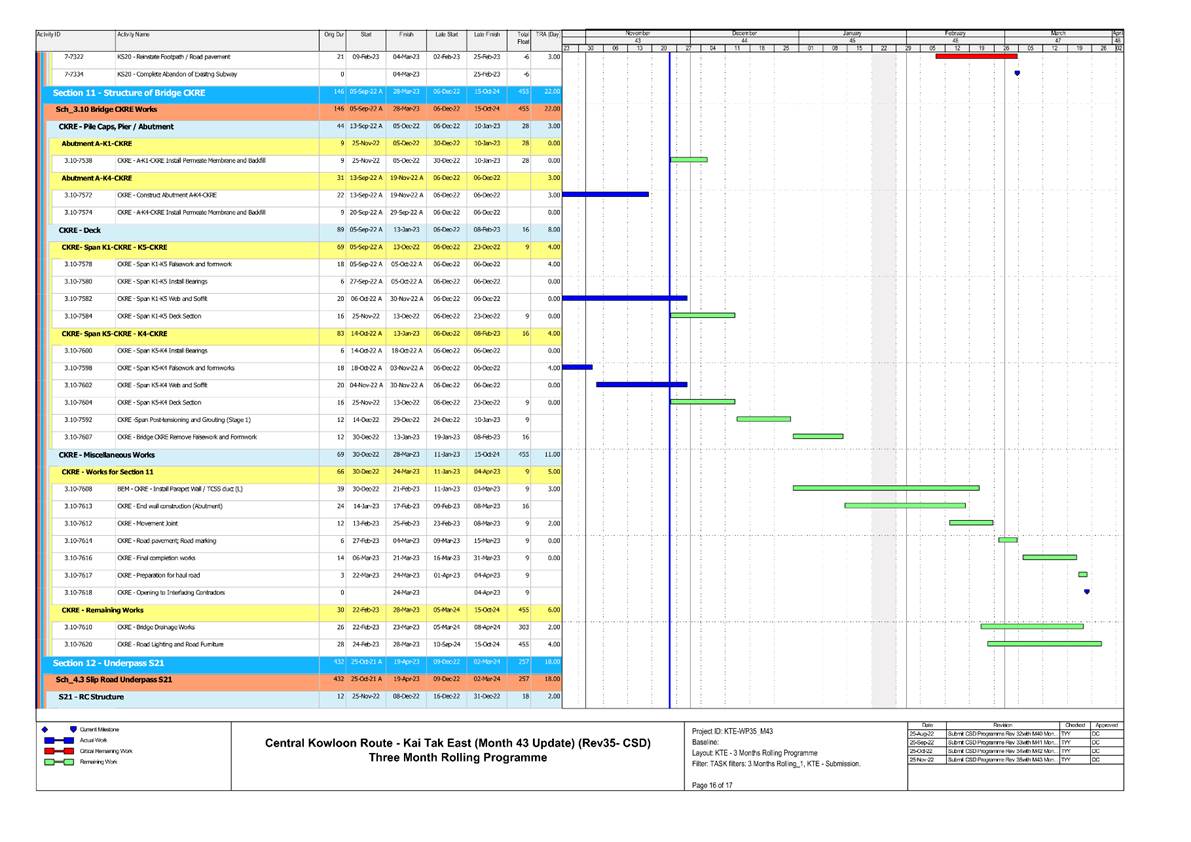

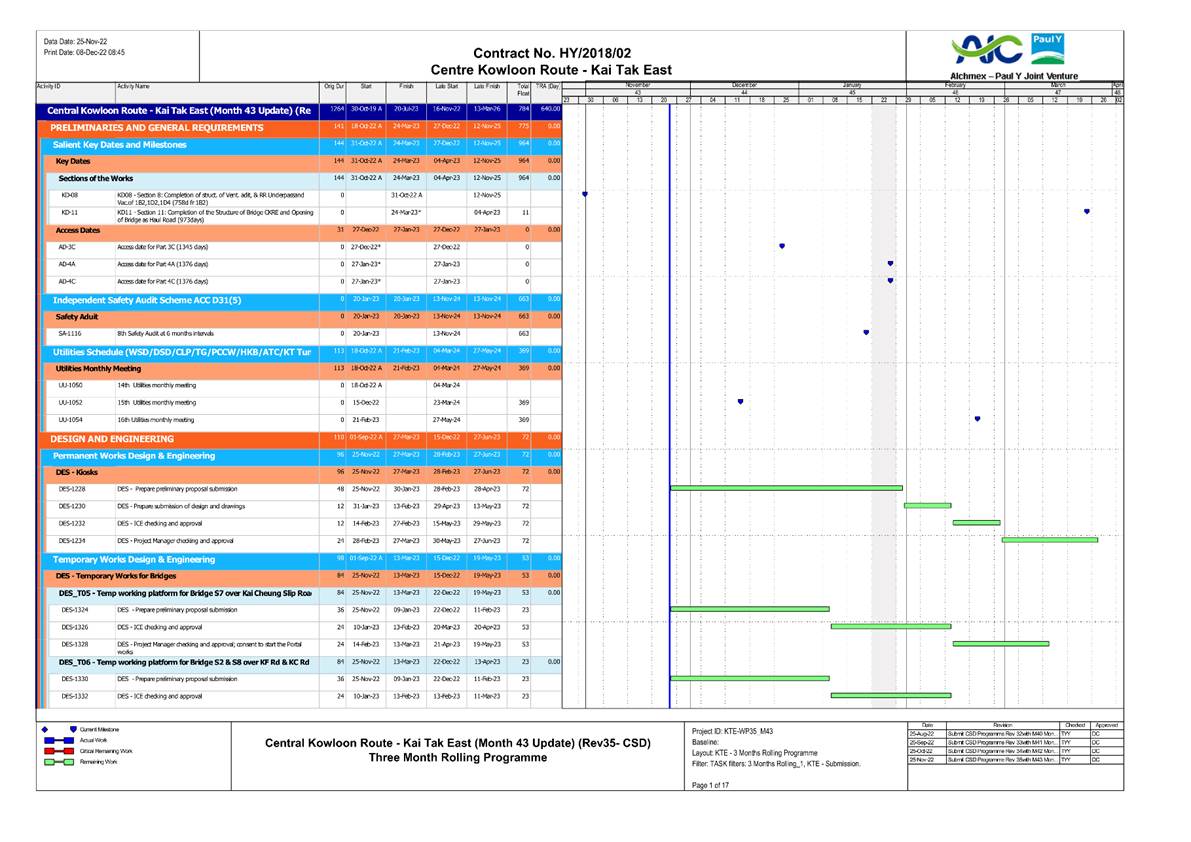

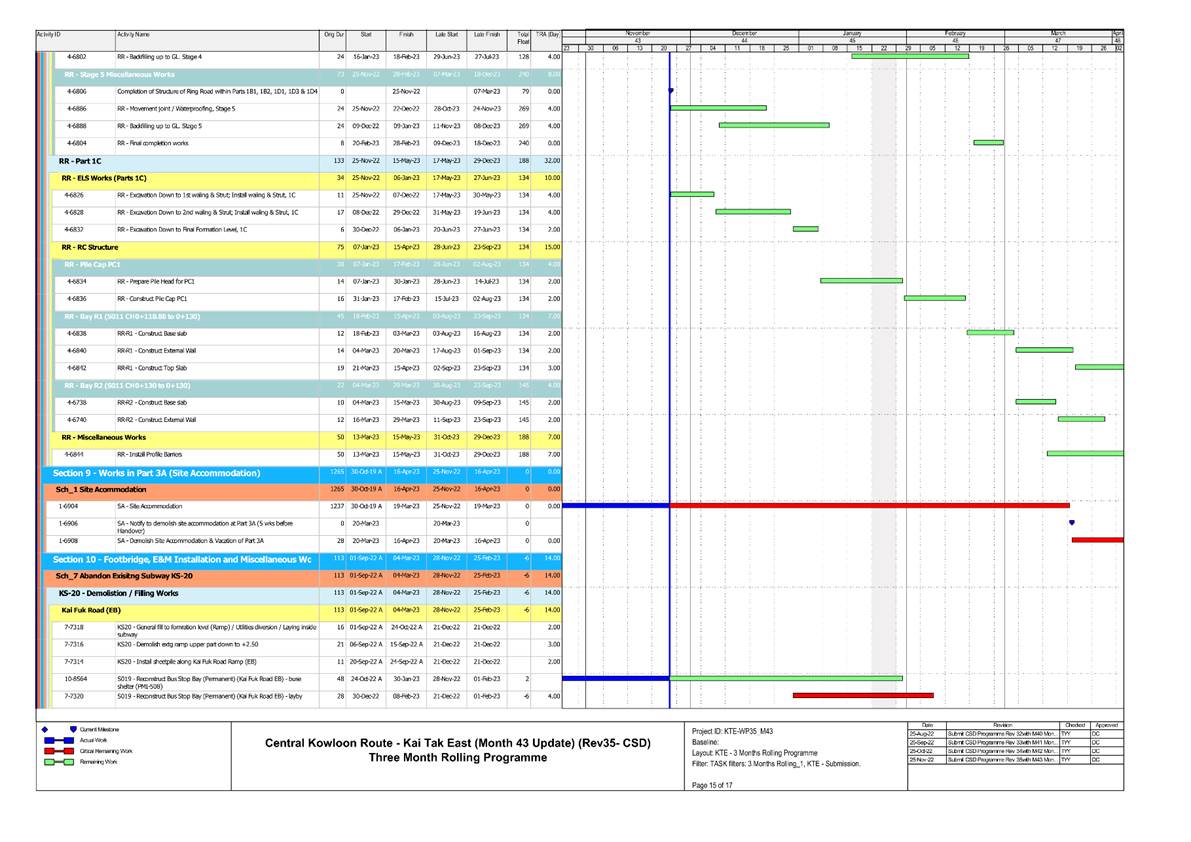

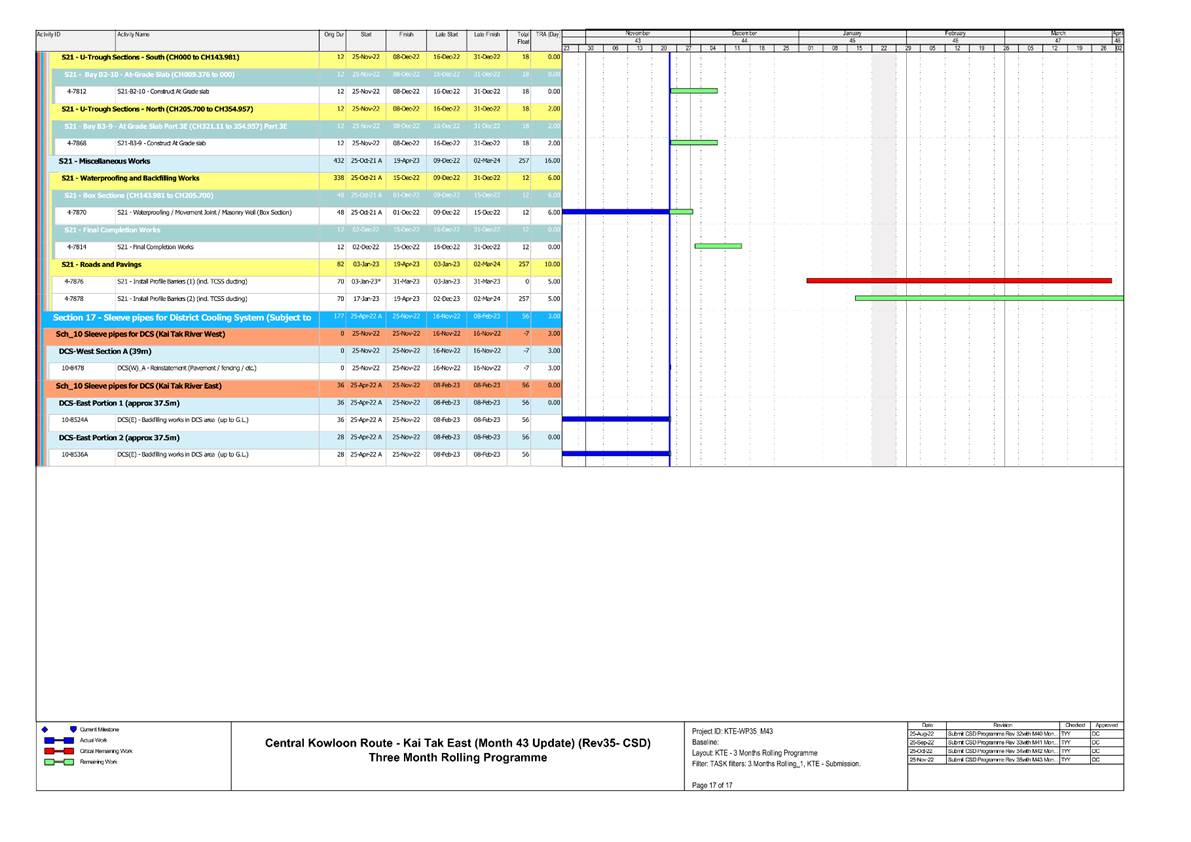

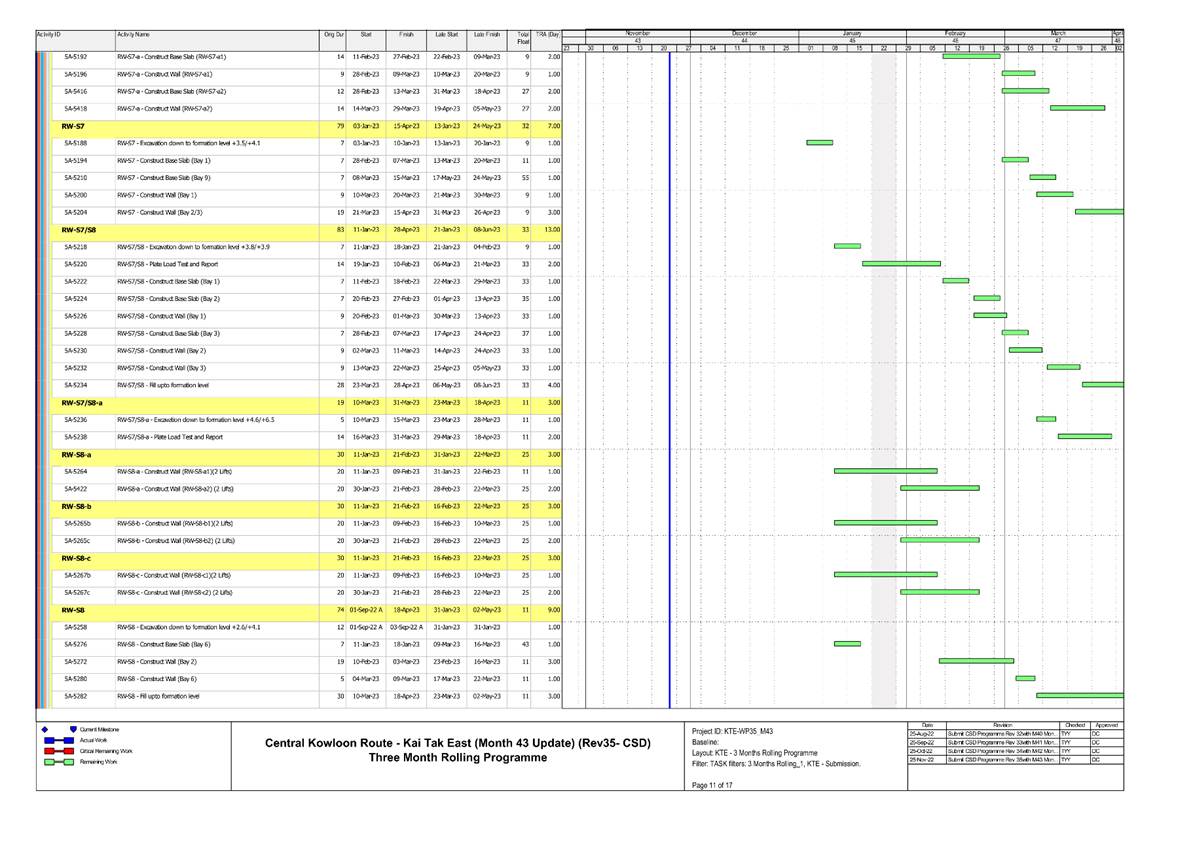

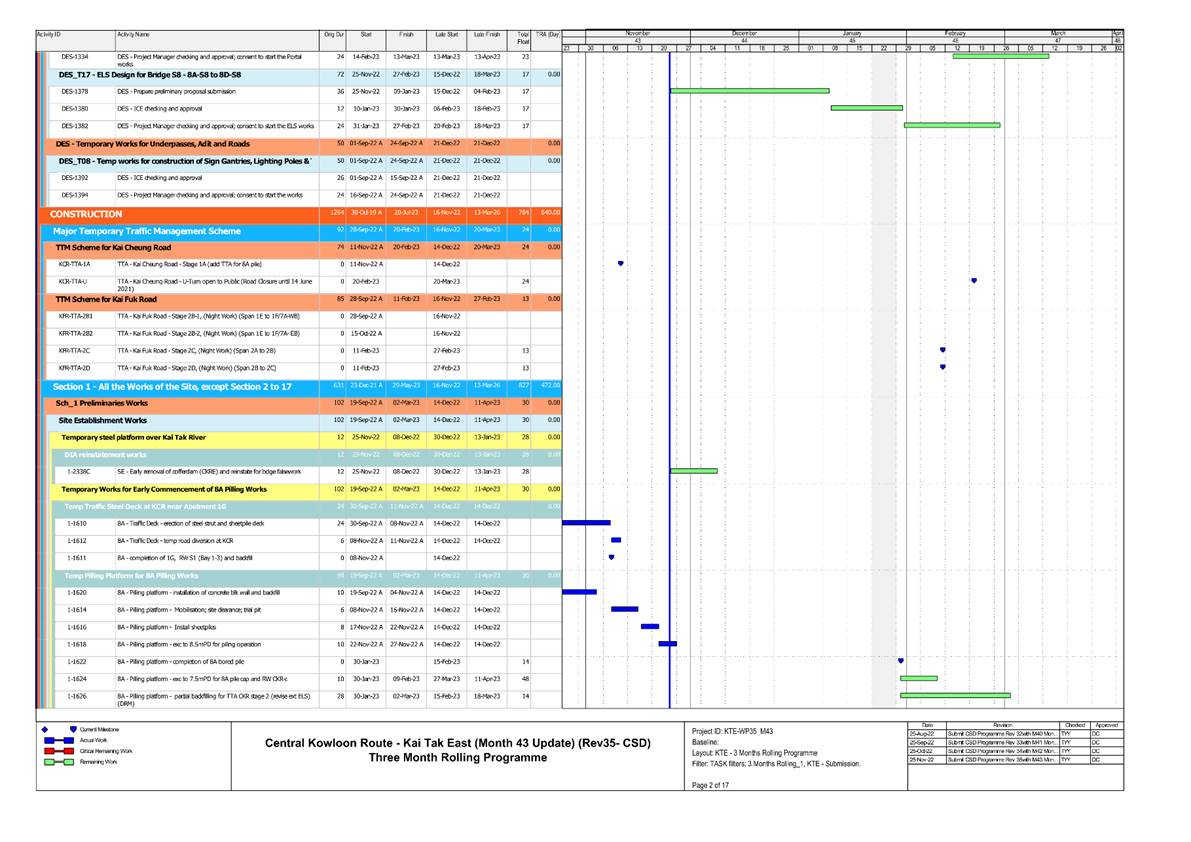

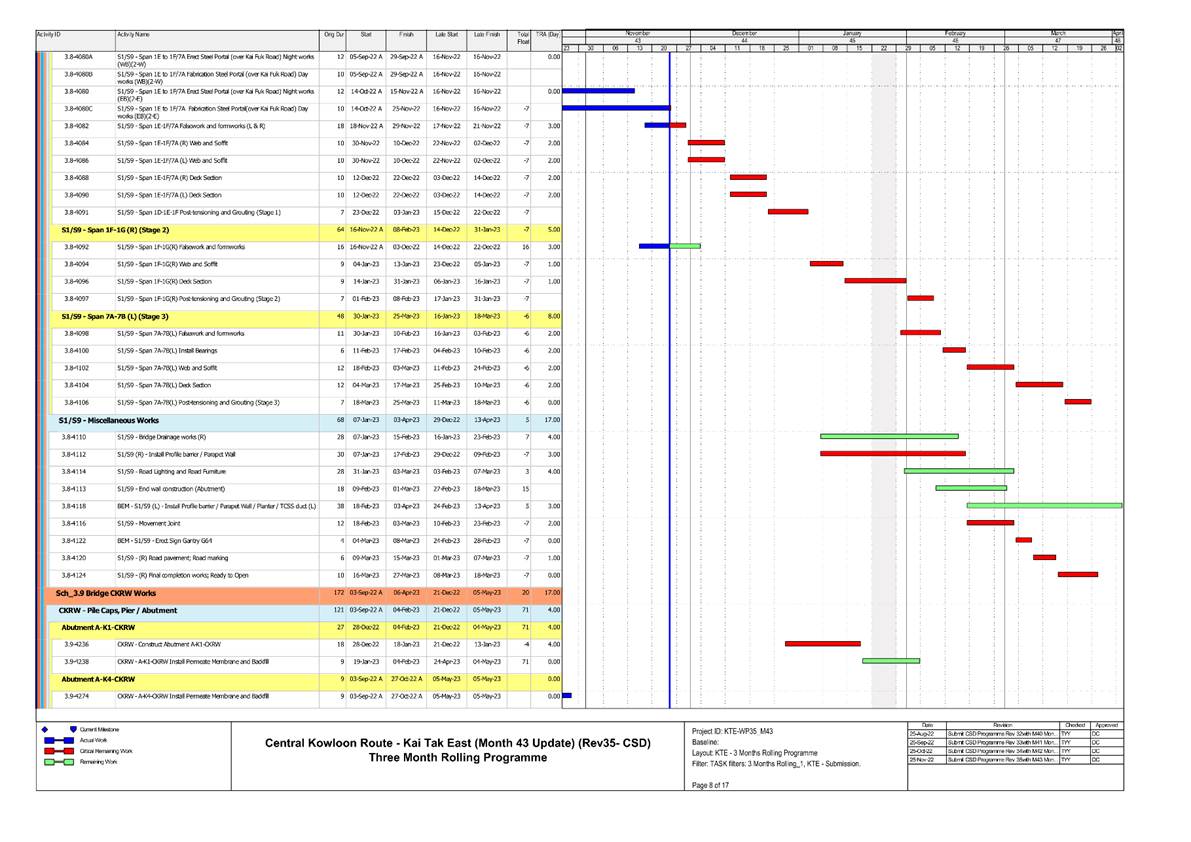

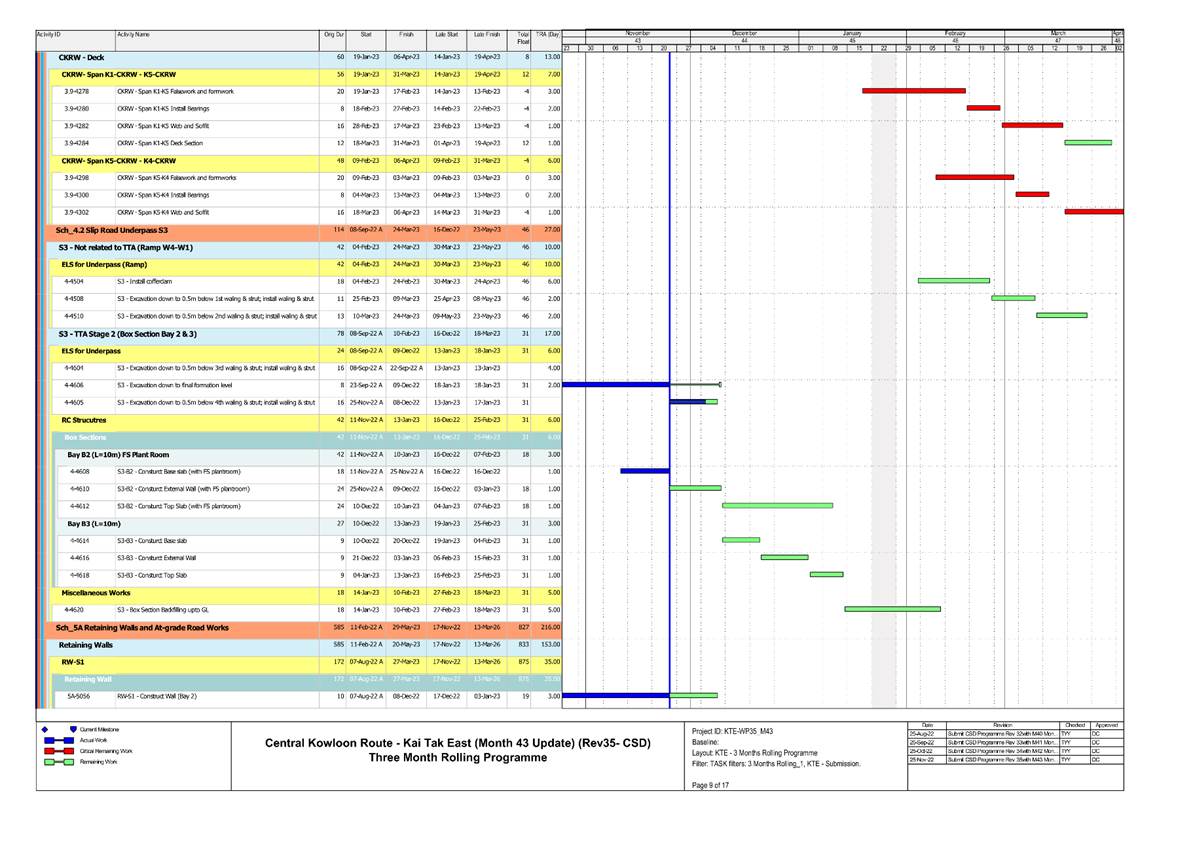

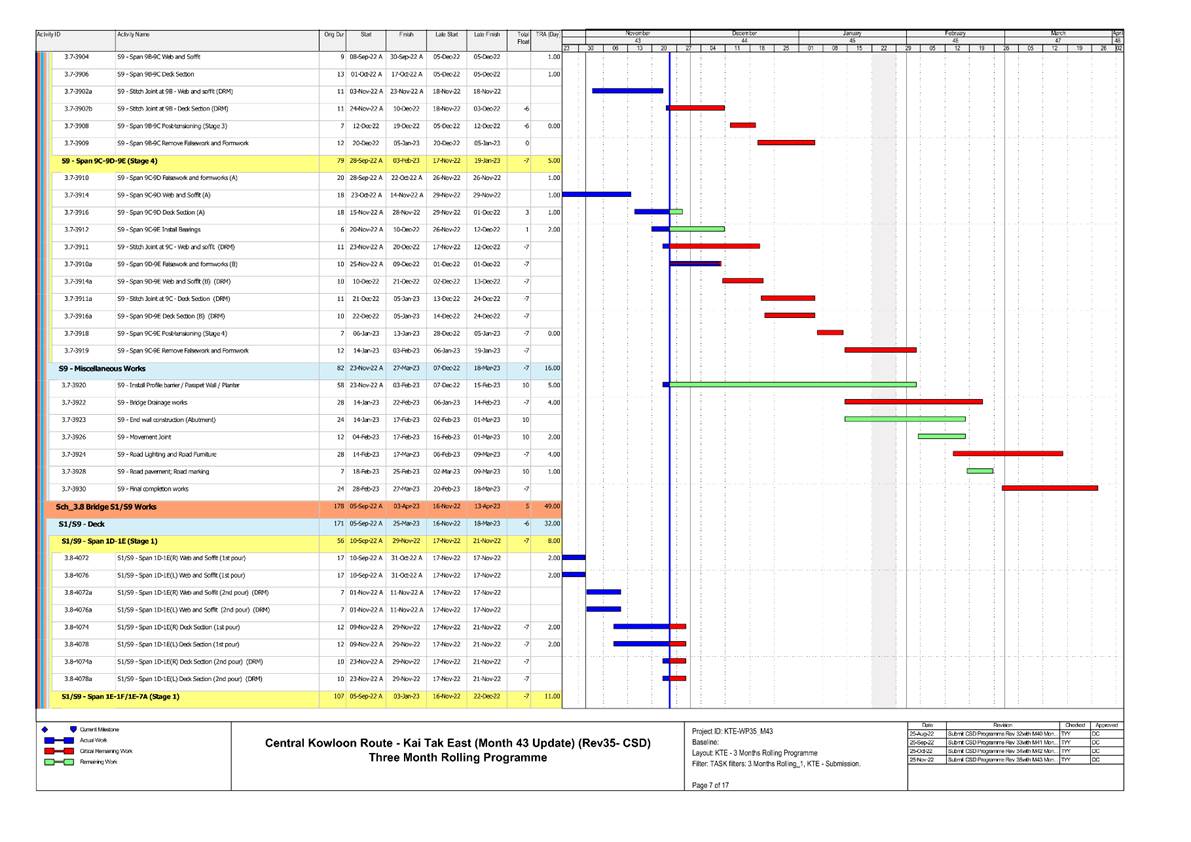

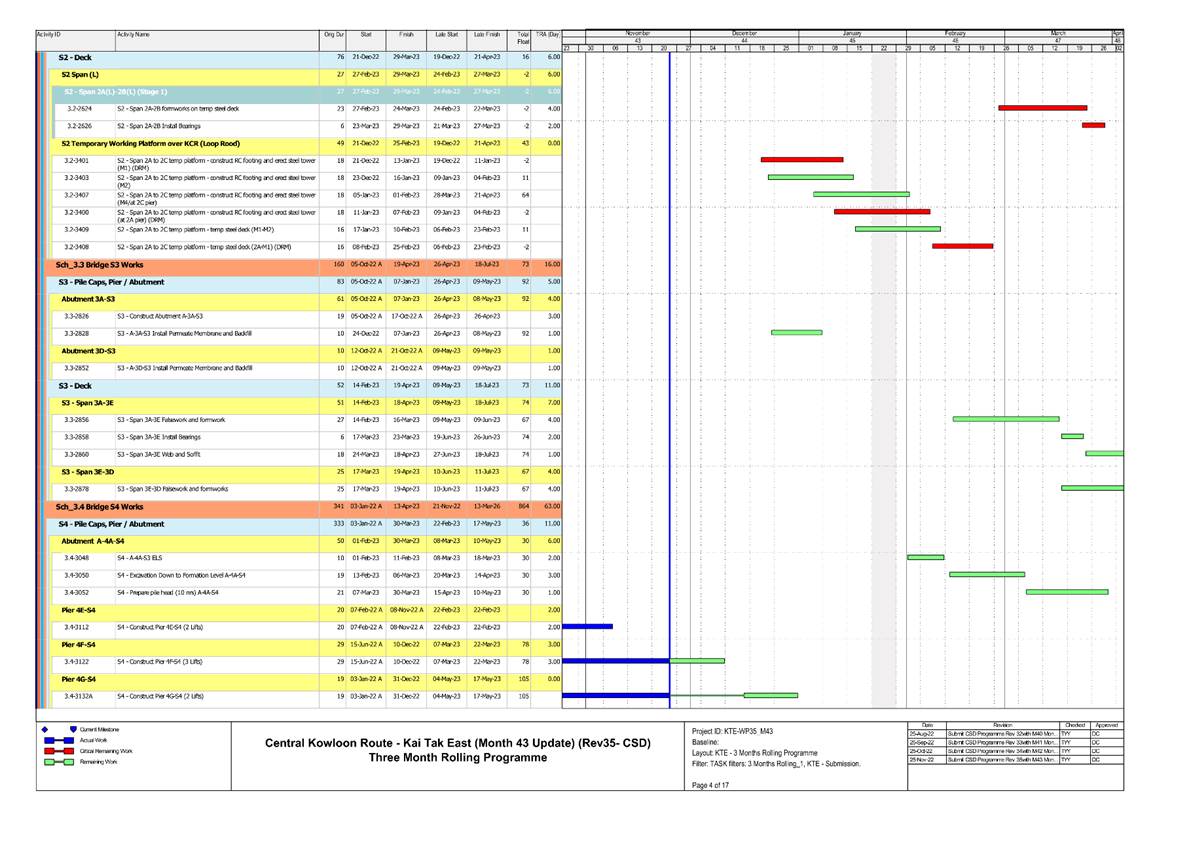

The construction programme is presented in Appendix B.
Table
1.1 Summary of Construction Activities during the Reporting Month
|
Construction
Activities undertaken
|
|
·
S1, S3, S4, S9, CKRE, CKRW Bridge Construction
·
Retaining Wall Construction at U-Turn &
Portion 2B
·
Excavation Work at Portion 3B
·
Bored Pile at U-Turn
|

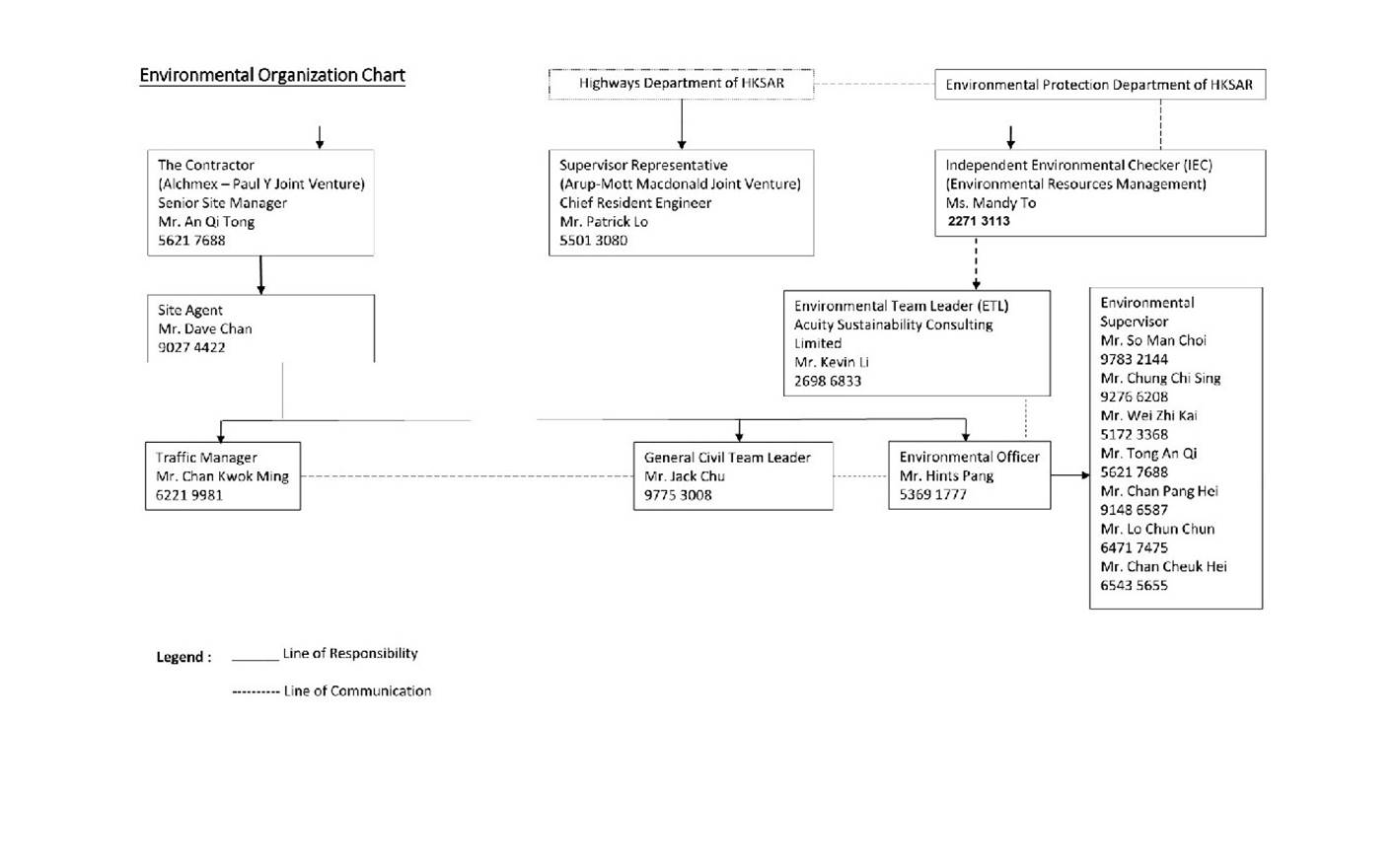

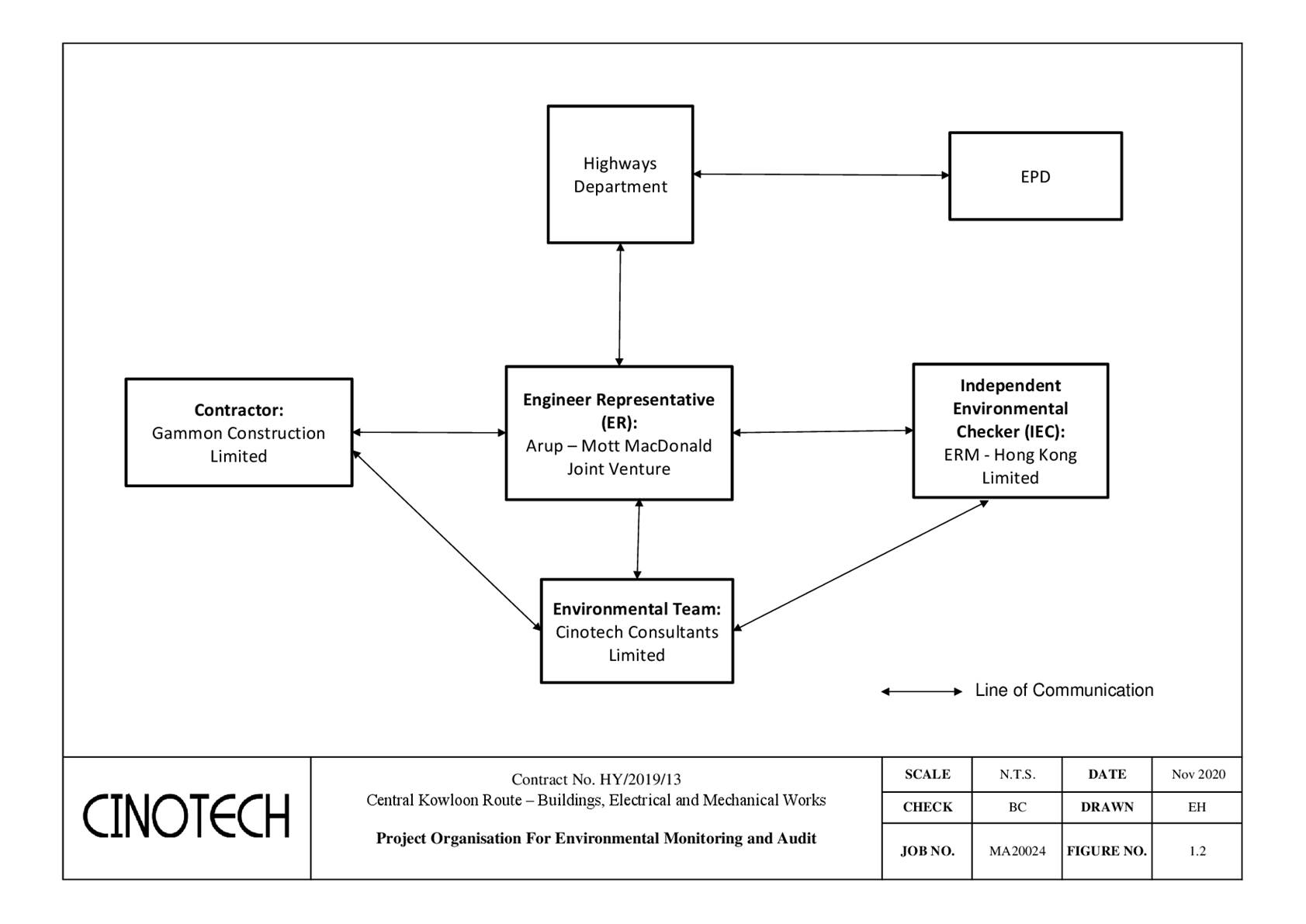

1.6. The project organisational chart specifying management structure and
contact details are shown in Appendix C.
1.7. A summary of the valid permits, licences, and /or notifications on
environmental protection for this Project is presented in Table 1.2.
Table 1.2 Summary of the Environmental Licence, Notification,
Permit and Documentations
|
Permit/ Licences/ Notification
/Reference No.
|
Valid Period
|
Status
|
Remark
|
|
From
|
To
|
|
Environmental Permit
|
|
EP-457/2013/D
|
15-Jun-21
|
--
|
Valid
|
-
|
|
Wastewater Discharge License
|
|
WT00035029-2019
|
17-Dec-19
|
31-Dec-24
|
Valid
|
-
|
|
Notification of Construction Works under the Air
Pollution Control (Construction Dust) Regulation
|
|
445001
|
Apr-19
|
Dec-23
|
Notified
|
-
|
|
Chemical Waste Producer Registration
|
|
WPN5113-247-A2940-01
|
17-May-19
|
--
|
Valid
|
-
|
|
Billing Account for Disposal of Construction Waste
|
|
7034073
|
15-Jun-19
|
--
|
Valid
|
-
|
|
Construction Noise Permit
|
|
GW-RE0874-22
|
17-Sep-22
|
16-Mar-23
|
Valid
|
General Work at Area A
|
|
GW-RE0889-22
|
12-Sep-22
|
11-Mar-23
|
Valid
|
Portion 2B
|
|
GW-RE0903-22
|
17-Sep-22
|
16-Mar-23
|
Valid
|
General Work at Area B and Site Office
|
|
GW-RE0904-22
|
29-Sep-22
|
28-Dec-22
|
Expired in the reporting period
|
Kai Cheung U Turns
|
|
GW-RE1327-22
|
7-Dec-22
|
6-Mar-23
|
Valid
|
Night Work at Kai Fuk & Kai Cheung Road
|
2.
Environmental Status
2.1.

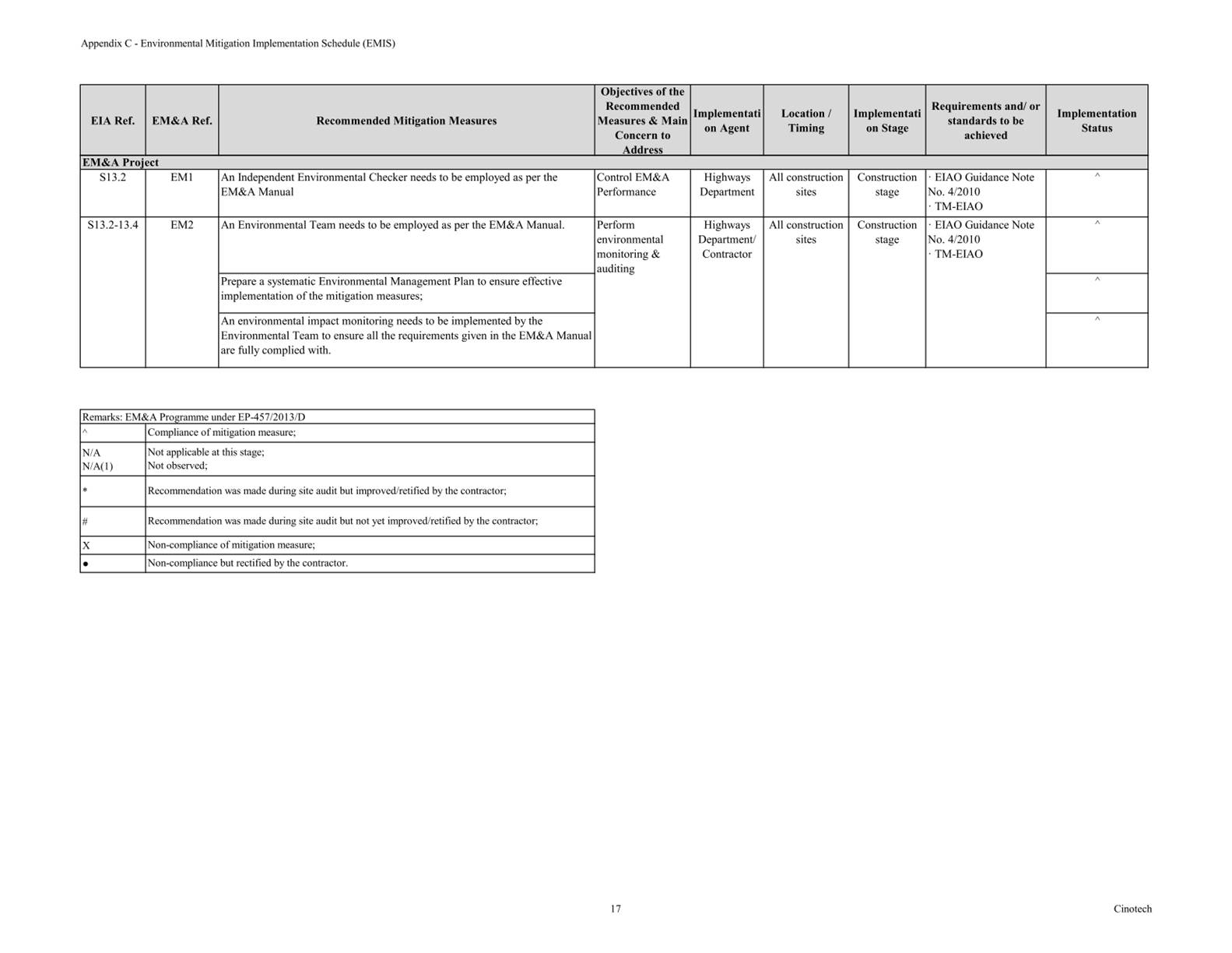

Environmental permit (EP) conditions under the
EIAO, submission status under the EP and implementation status of mitigation
measures had been reviewed and implemented on schedule. The status of required submissions under the EP (EP-457/2013/D) as
of the reporting period for the Project are summarised in Table 2.1.
Table 2.1 Summary
of Status of Required Submission for EP-457/2013/D for the Project
|
EP Condition
(EP-457/2013/D)
|
Submission
|
Submission date
|
|

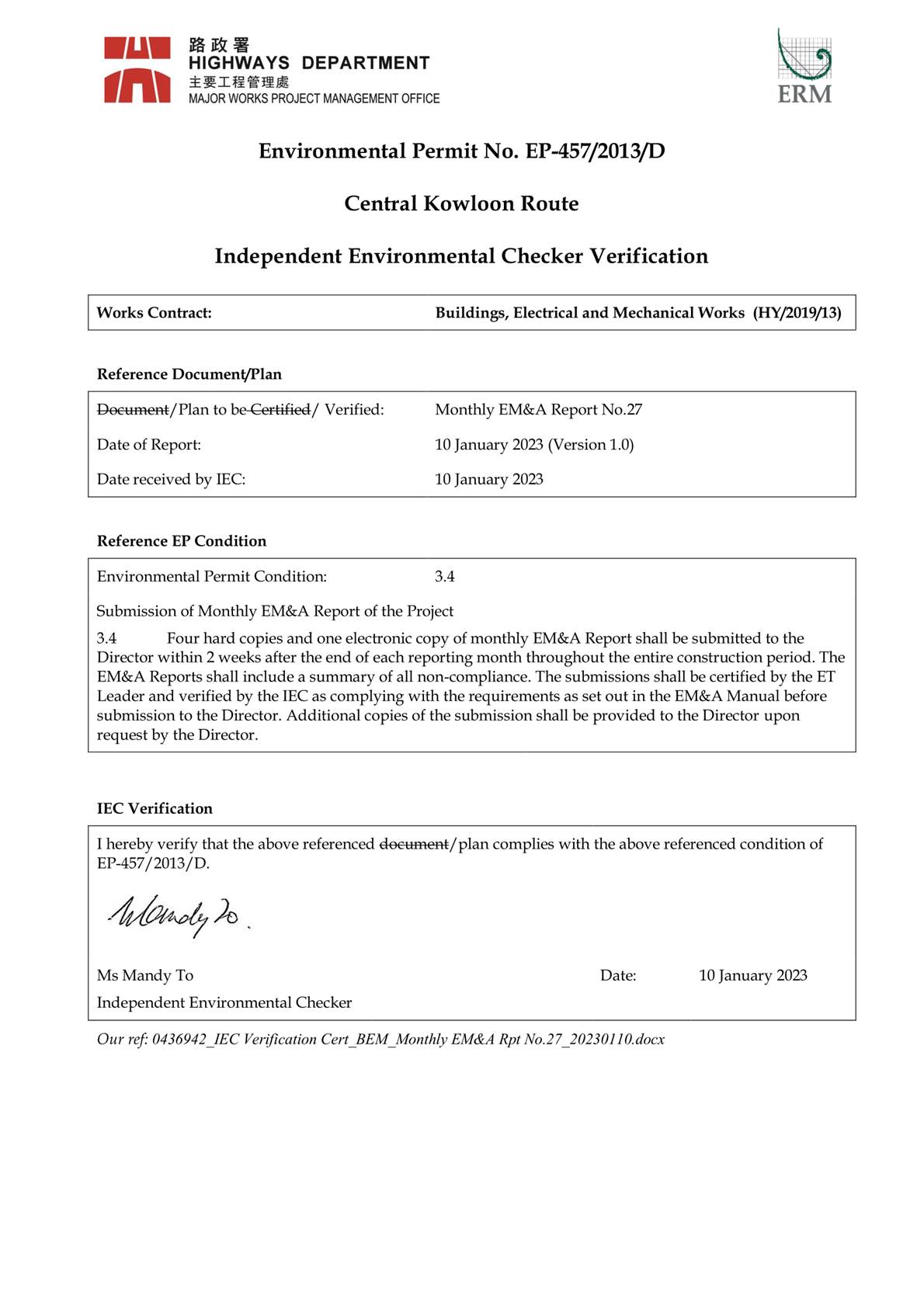

Condition 3.4
|
Monthly EM&A Report
(November 2022)
|
14 December 2022
|
2.2.

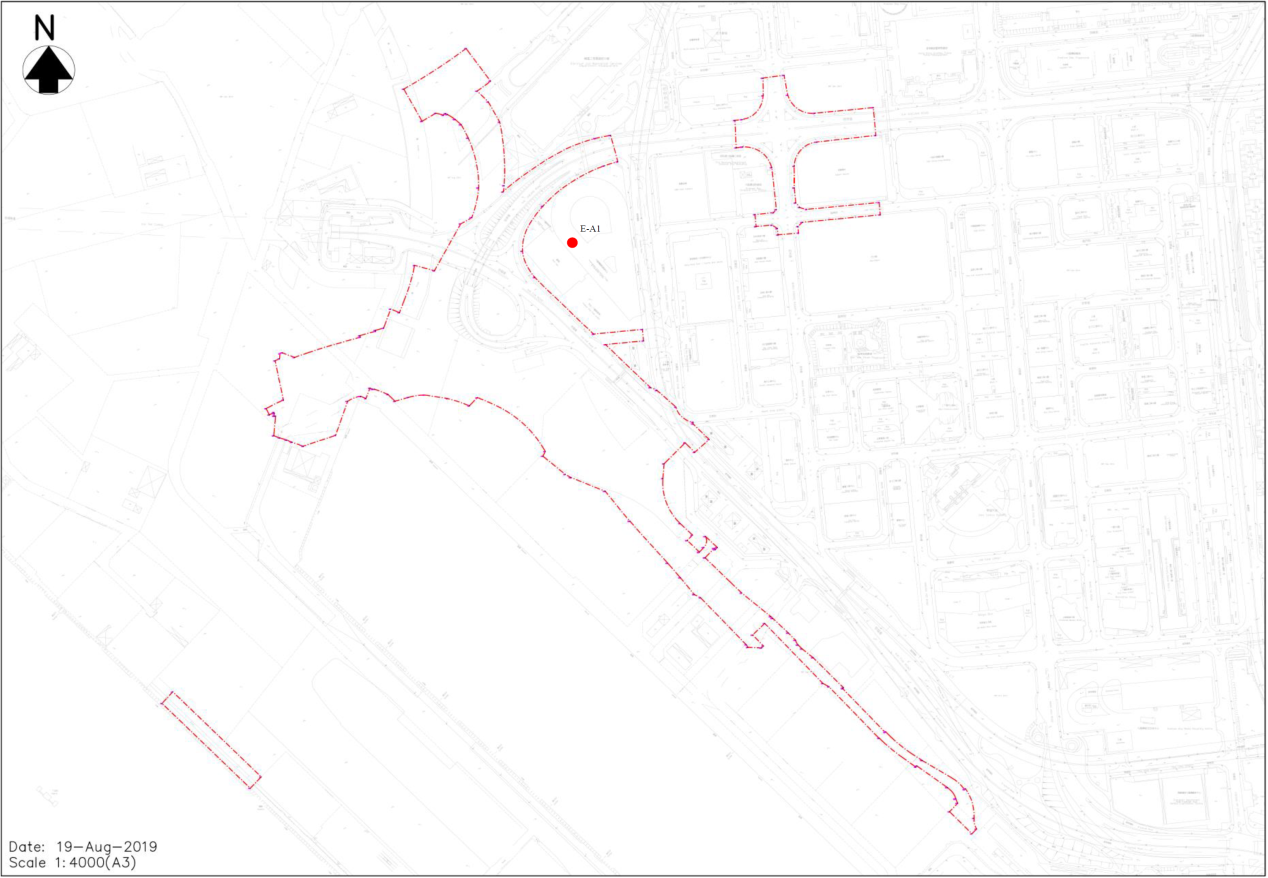

The drawing showing the project layout and the
location of the monitoring station and environmental sensitive receivers are
attached in Appendix A and Appendix J. Co-ordinates of the
monitoring location is shown in below:
Table 2.2 Summary
for the location of monitoring station
3.
Air Quality Monitoring Results
Monitoring Parameters
3.1.
The impact monitoring had been carried out in
accordance with section 5.8 of the approved EM&A Manual to determine the
1-hour and 24-hour total suspended particulates (TSP) levels at the monitoring
locations in the reporting month.
3.2.
The sampling frequency of at least once in every
6 days, shall be strictly observed at the monitoring stations for 24-hour TSP
monitoring. For 1-hour TSP monitoring, the sampling frequency of at least 3
times in every 6 days should be undertaken when the highest dust impact occurs.
3.3.

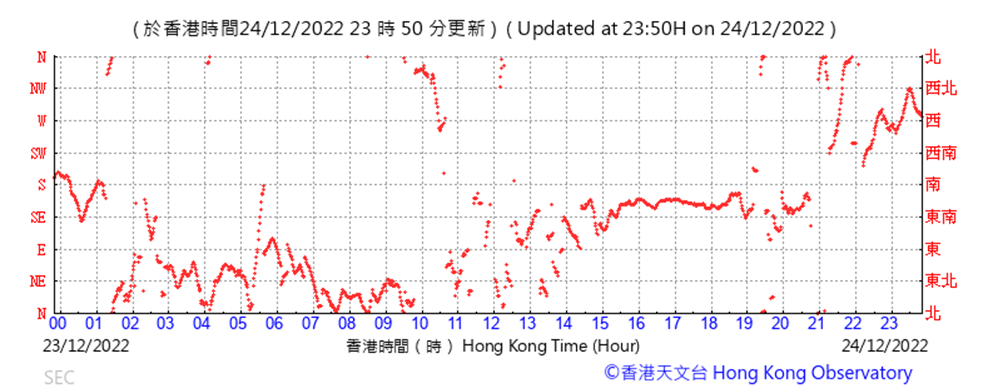

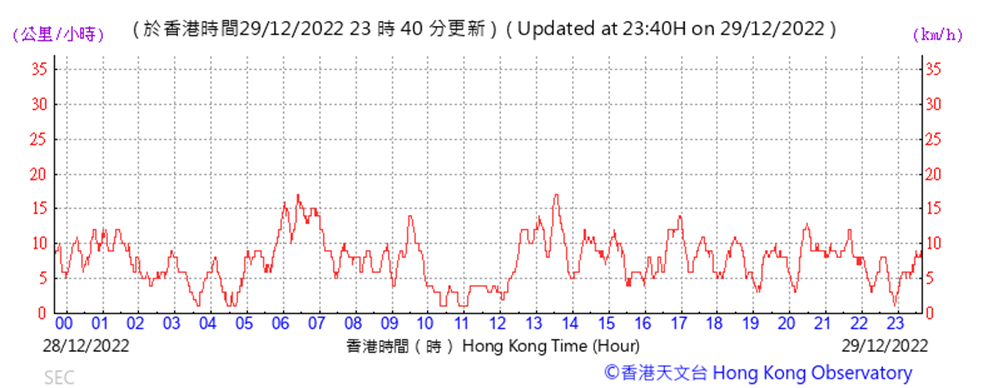

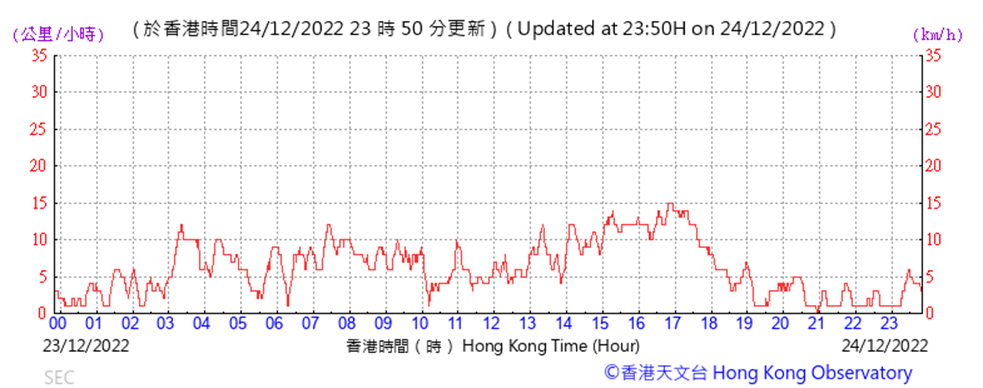

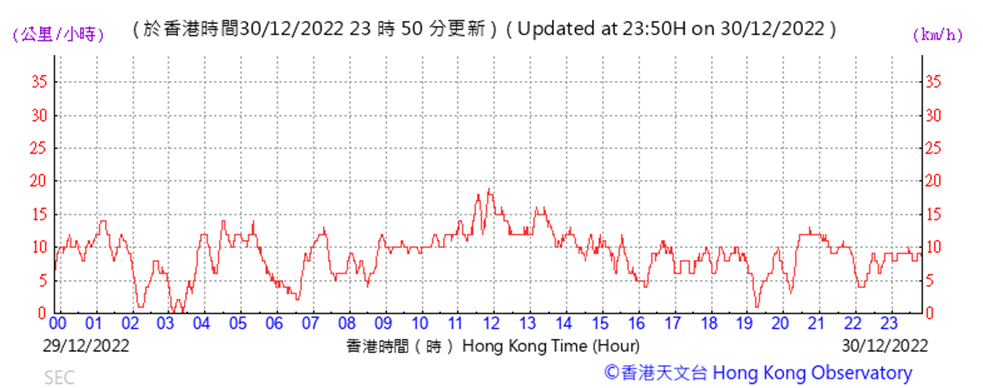

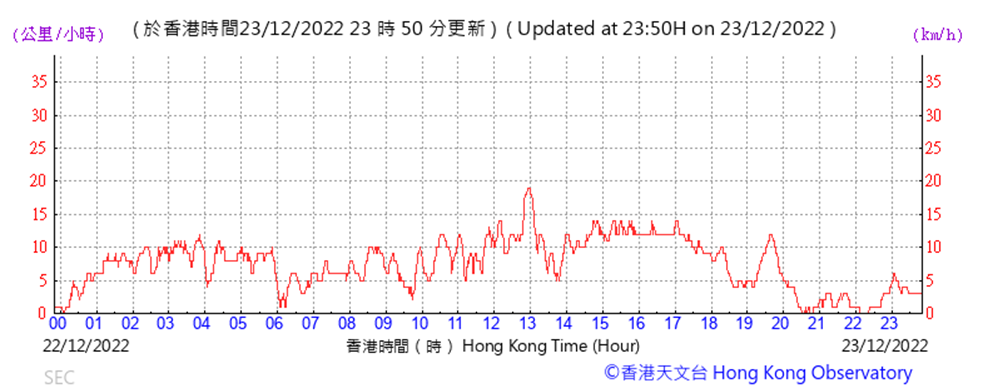

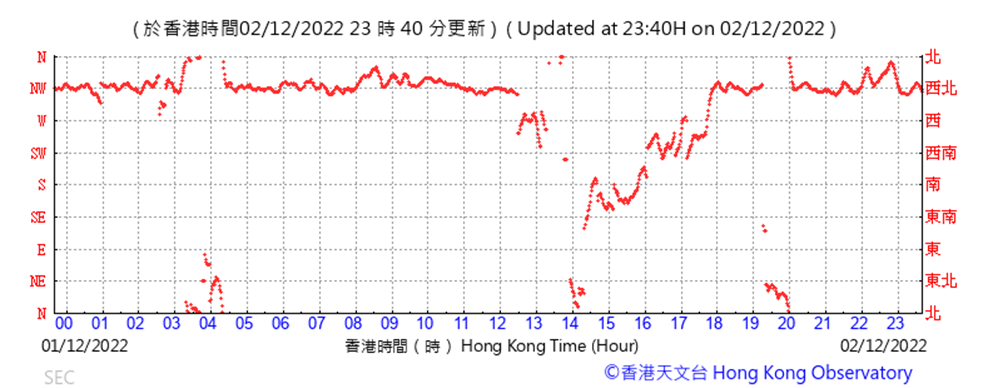

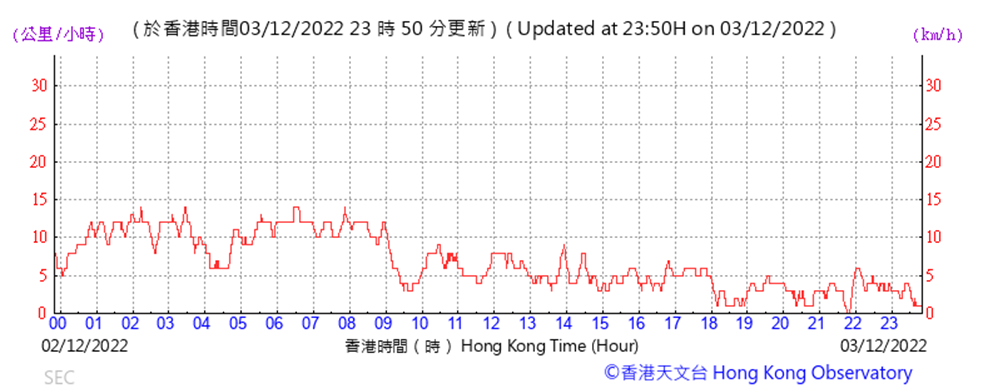

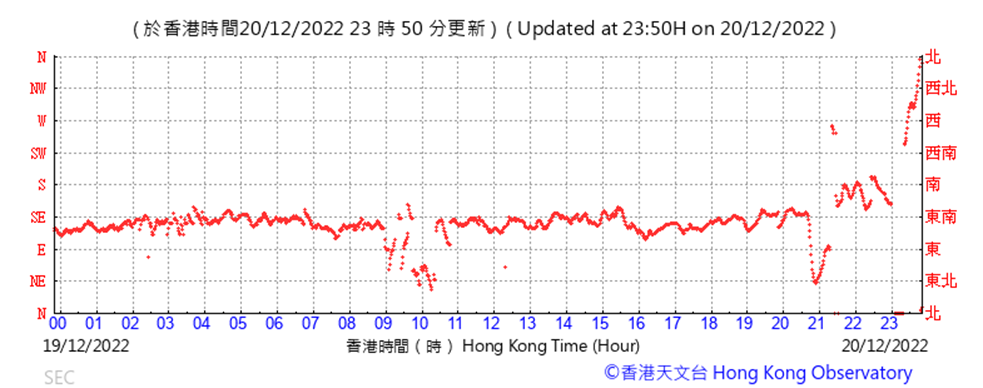

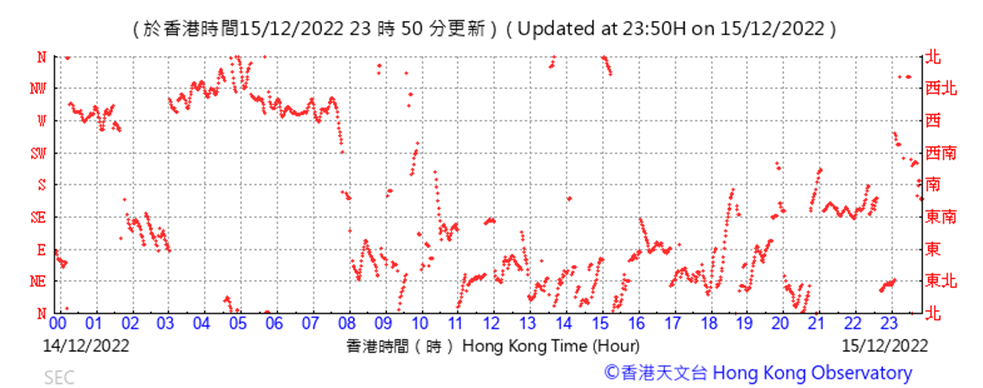

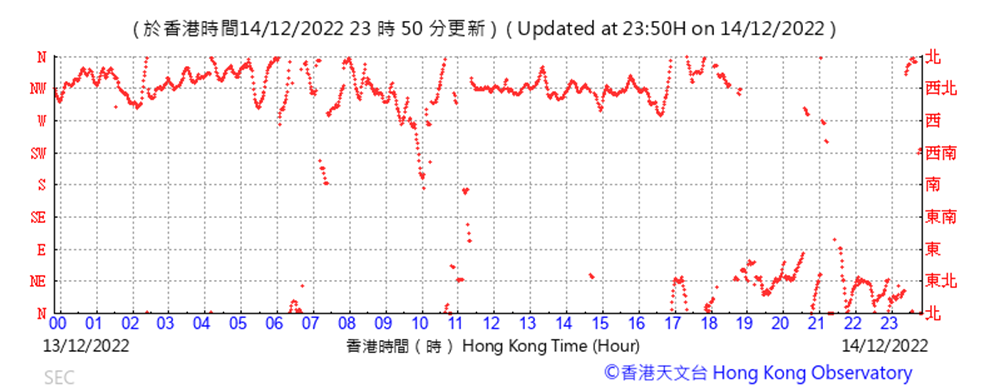

General meteorological conditions (wind speed,
direction and precipitation) and notes regarding any significant adjacent dust
producing sources had also been recorded throughout the impact monitoring
period.
Monitoring Equipment
3.4.
1-hour TSP levels and 24-hour TSP had been
measured with direct reading dust meter and High-Volume Samplers respectively. It
has been demonstrated its capability in achieving comparable results with high
volume sampling method as set out in the Title 40 of the Code of Federal
Regulations, Chapter 1 (Part 50).
3.5.

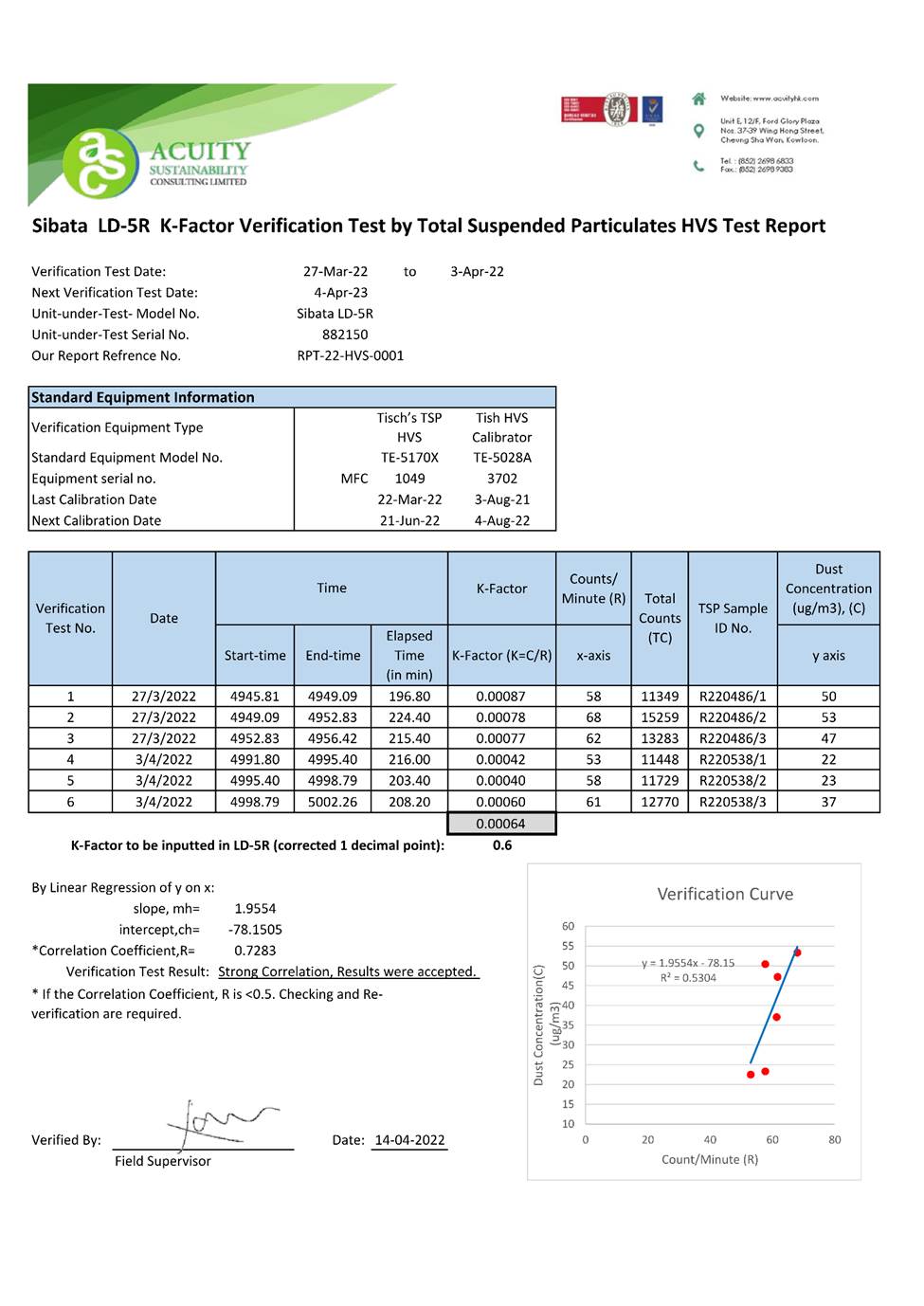

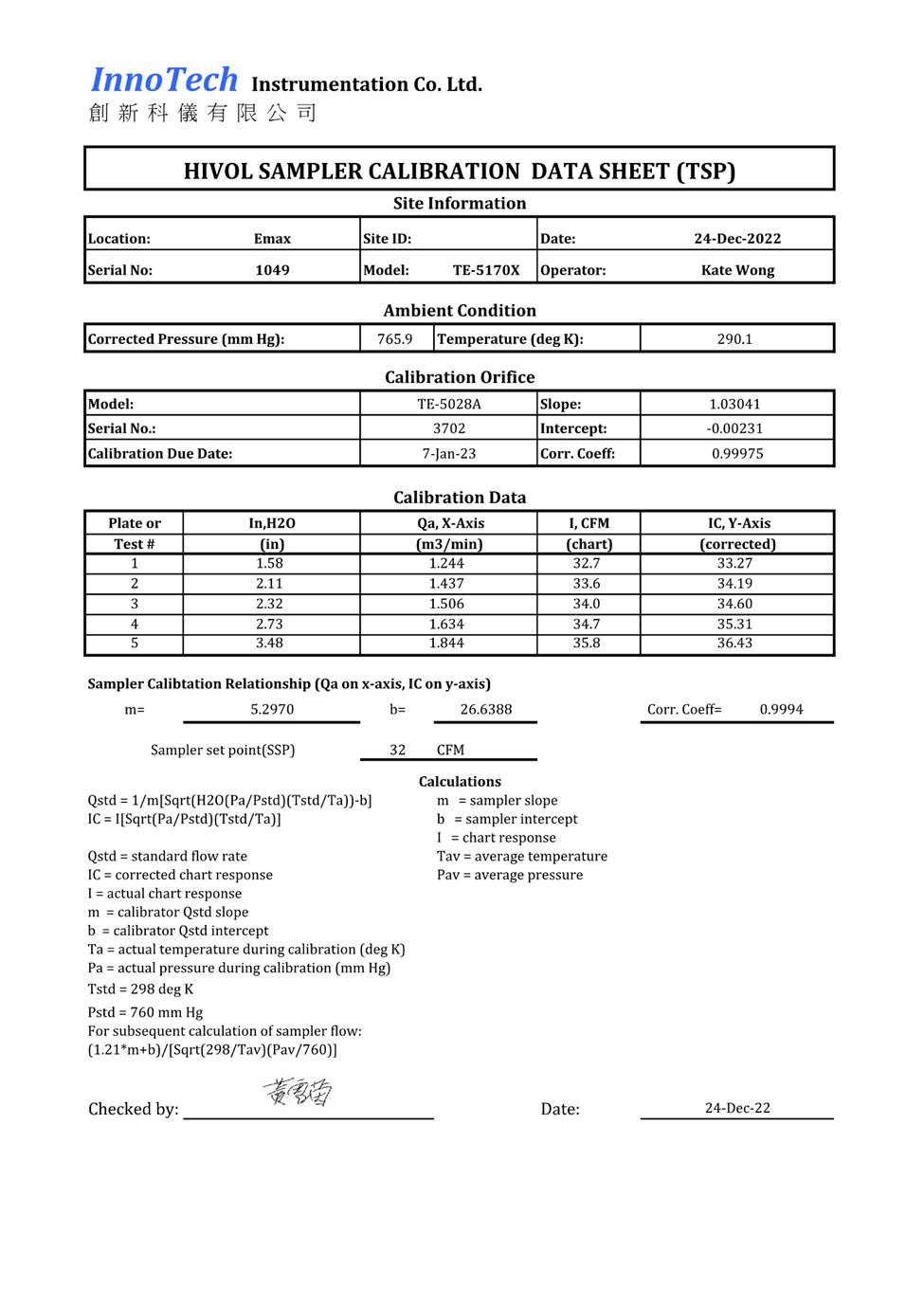

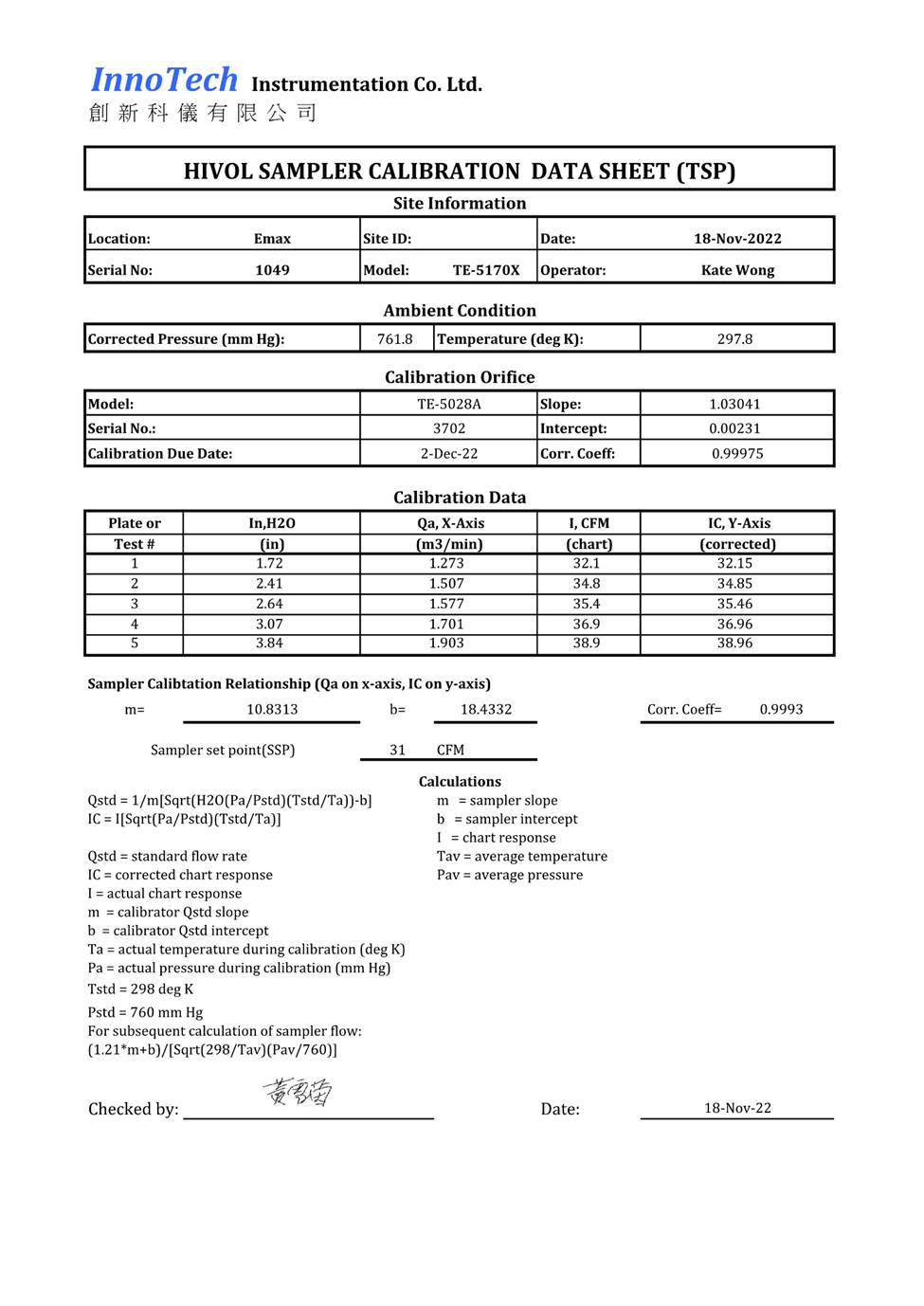

The 1-hour TSP meter was calibrated by the
manufacturer prior to purchasing. Zero response of the instrument was checked
before and after each monitoring event. Operation of the 1-hour TSP meter
followed manufacturer’s Operation and Service Manual. The 24-hour TSP meter was
calibrated against firmware 80570-8100-V1.0.4, annually. Operation of the
24-hour TSP meter followed manufacturer’s Operation and Service Manual. Valid

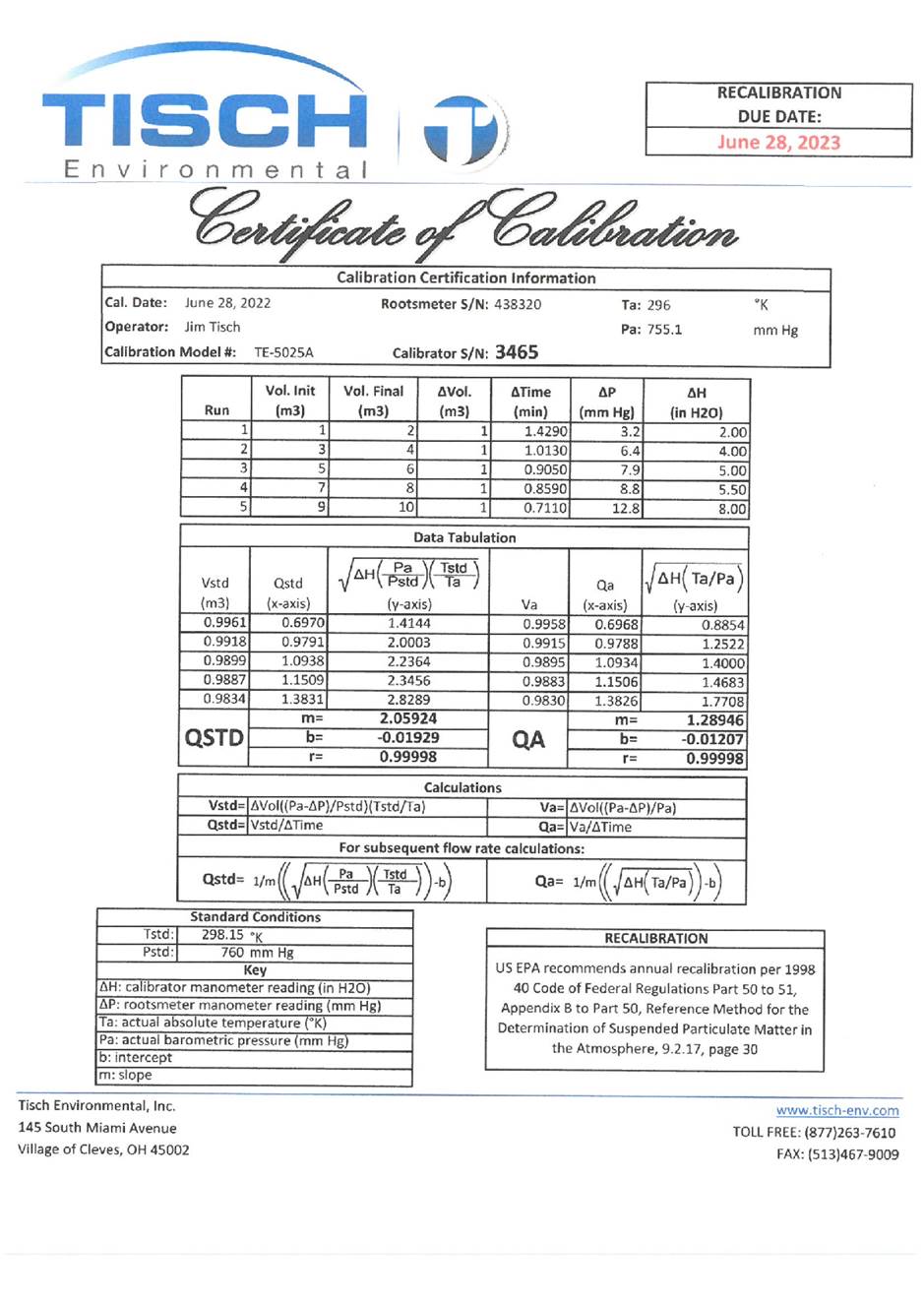

calibration certificate of dust monitoring equipment is attached in Appendix
H.
3.6.
A summary of the equipment that was deployed for
the 24- hour averaged monitoring is shown in Table 3.1. The TSP

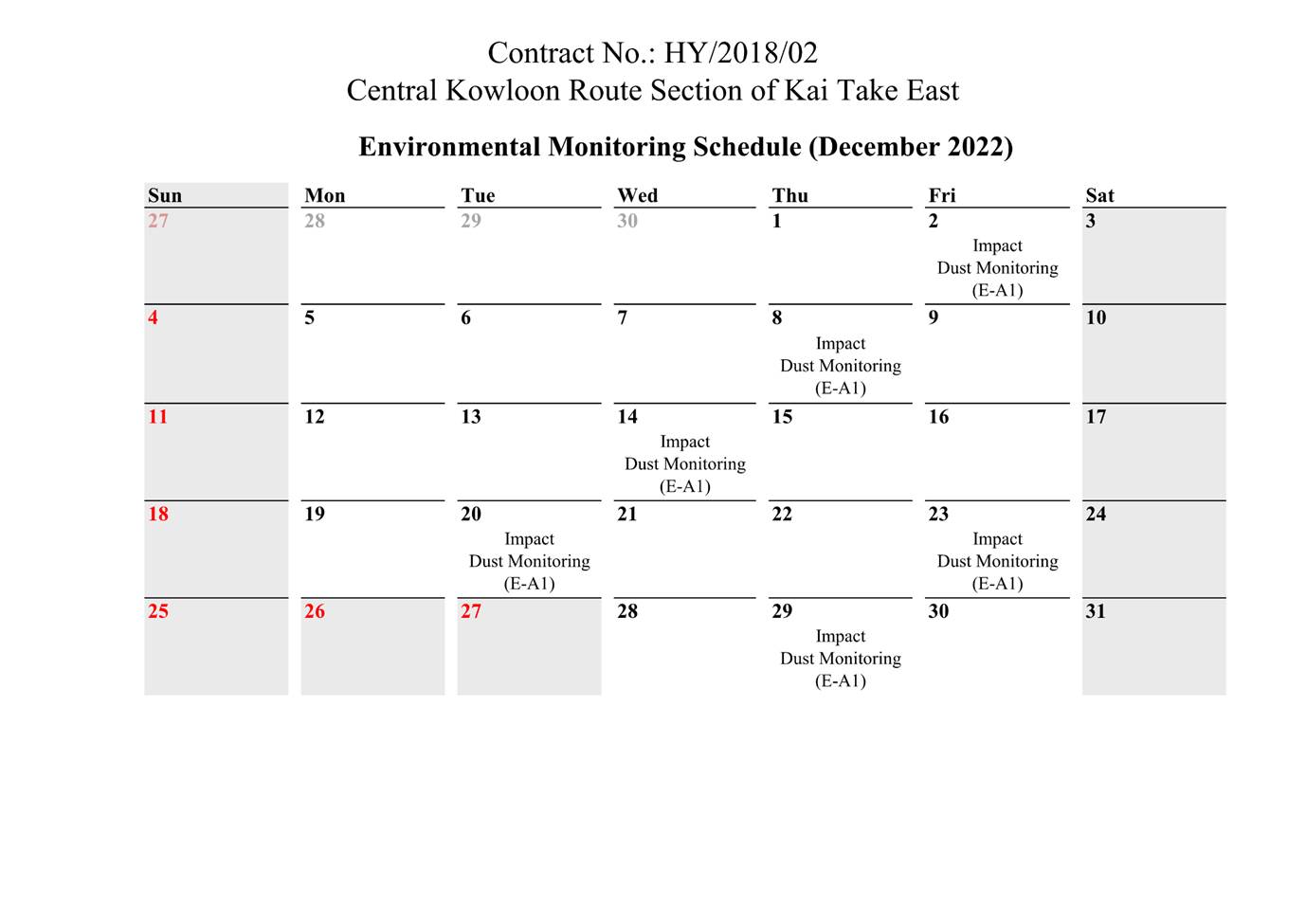

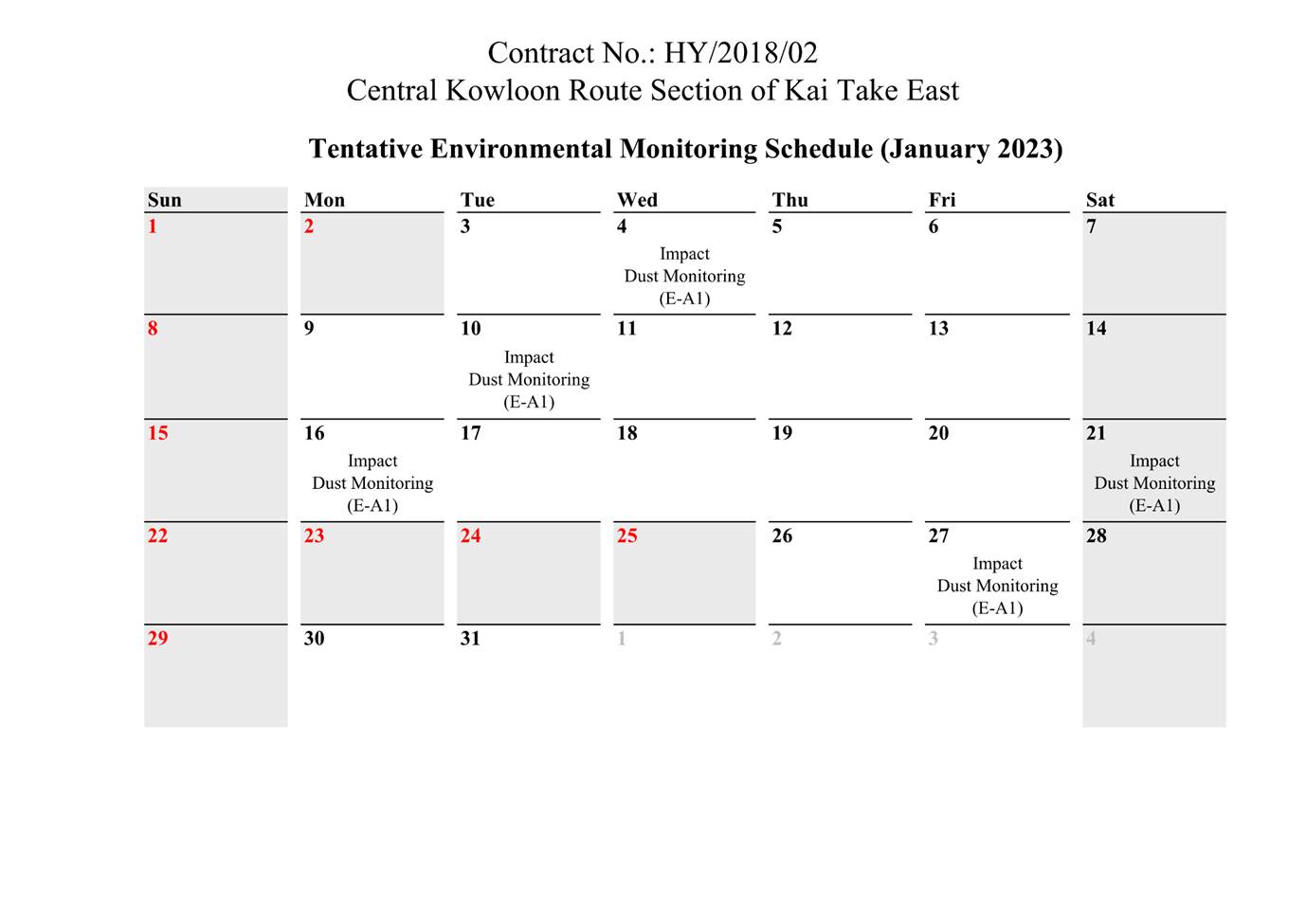

monitoring was conducted as per the schedule presented in Appendix G.
3.7.
The equipment used for 1-hour TSP and 24-hour
TSP measurement and calibration are summarised in Table 3.1.
Table 3.1 Construction Dust Monitoring Equipment
|
Monitoring Parameter
|
Monitoring Equipment
|
Serial Number
|
Date of Calibration
|
|
1-hour TSP
|
LD-5R Digital Dust Indicator
|
882150
|
27 March 2022
|
|
24-hour TSP
|
TE-5170X High Volume Sampler
|
1049
|
18 November 2022
|
|
1 December 2022
|
|
14 December 2022
|
|
24 December 2022
|
|
TE-5028A Calibration Kit
|
3702
|
29 June 2022
|
Monitoring Methodology and QA/QC results
3.8.
The 1-hour TSP monitor, portable dust meters (Sibata
Digital Dust Indicator Model LD-5R) was used for the impact monitoring. The
1-hour TSP meters provides a real time 1-hour TSP measurement based on 90o
light scattering. Three 1-hour TSP level were logged per every six days.
3.9.
The 24-hour TSP monitor, High Volume Samplers (Tisch
TE-5170x High Volume Air Sampler) were used for the impact monitoring. The
24-hour TSP monitoring consists of the following:
u The HVS was set at
the monitoring location, with electricity supply connected and secured;
u HVS was calibrated
before commencing the 1st measurement;
u The filter paper
was weight and provided by HOKLAS lab (Acumen Laboratory and Testing Limited
and ALS Technichem (HK) Pty Ltd) before and after the sampling. Certificate of
HOKLAS accredited laboratory can be referred to Appendix I;
u The airflow over
time during sampling process was recorded by the HVS.
3.10.
HVSs were free-standing with no obstruction. The
following criteria were considered in the installation of the HVS:
u Appropriate
support to secure the samples against gusty wind needed to be provided the
monitoring station;
u A minimum of 2m
separation from walls, parapets and penthouses was required for rooftop
samplers;
u No furnace or
incinerator flues was nearby;
u Airflow around the
sampler was unrestricted; and
u Permission could
be obtained to set up the samplers and gain access to the monitoring station.
u Any wire fence and
gate, to protect the sampler, should not cause any obstruction during
monitoring
u A secured supply
of electricity is needed to operate the samplers.
3.11.
Preparation of Filter Papers:
u Glass fiber
filters were labelled and sufficient filters that were clean and without
pinholes were selected;
u All filters were
equilibrated in the conditioning environment for 24 hours before weighing. The
conditioning environment temperature was around 25℃ and not varied by
more than ±3℃; the relative humidity (RH)was 40%; and
u Acumen Laboratory
and Testing Limited and ALS Technichem (HK) Pty Limited, as HOKLAS accredited
laboratory, implemented comprehensive quality assurance and quality control
programmes on the filters.
3.12.
Field Monitoring:
u The power supply
was checked to ensure that the HVS was working properly;
u The filter holder
and area surrounding the filter were cleaned;
u The filter holder
was removed by loosening the foul bolts and a new filter, with stamped number
upward, on a supporting screen was aligned carefully;
u The filter was
properly aligned on the screen so that the gasket formed an airtight seal on
the outer edges of the filter;
u The swing bolts
were fastened to hold the filter holder down to the frame. The pressure applied
should be sufficient to avoid air leakage at the edges;
u The shelter lid
was closed and secured with an aluminum strip;
u The HVS was
warmed- up for about 5 minutes to establish run- temperature conditions;
u A new flow rate
record sheet was inserted into the flow recorder;
u The flow rates of
the HVS was checked and adjusted to between 1.13-1.19 m3min-1, which
was within the range specified in the EM&A Manual (i.e. 0.6- 1.7 m3min-1);
u The programmable
timer was set for a sampling period of 24 hours ±hour, and the starting time,
weather condition and filter number were recorded;
u The initial
elapsed time was recorded;
u At the end of
sampling, the sampled filter was removed carefully and folded in half so that
only surfaces with collected particulate matter were in contact;
u The filter paper
was placed in a clean plastic envelope and sealed; all monitoring information
was recorded on a standard data sheet and
u The filters were
sent to (Acumen Laboratory and Testing Ltd) for analysis.
3.13.
Maintenance and Calibration:
u The HVS and their
accessories were maintained in a good working condition. For example, motor
brushes were replaced routinely and electrical wiring was checked to ensure a
continuous power supply; and
u The flow rate of
each HVS with mass flow controller was calibrated using an orifice calibrator,
Initial calibrations of the dust monitoring equipment were conducted upon
installation and prior to commissioning. Five-point calibration was carried out
for HVS using TE-5025A Calibration Kit and TE-5028A Calibration KIT. HVS is
calibrated in fortnightly Intervals. The calibration records for the HVS is
given in Appendix H.
3.14.
Wind Data Monitoring:
u The wind speed has
been recorded from Hong Kong Observatory- King’s Park meteorological station,
along with portable wind speed meter stand by as back up if malfunction
occurred or data was not recorded from HKO.
Monitoring Locations
3.15. During the site visit, air quality monitoring station Hong Kong
International Trade and Exhibition Centre had been recommended in the approved
EM&A Manual. A designated air quality monitoring location was identified
and agreed with IEC and EPD. Detail of the air monitoring station is described
in Table 3.2. The location plan of air quality monitoring stations is
shown in Appendix J.
Table 3.2 Location of the Air Quality Monitoring
Station
|
Monitoring Station
|
Monitoring Location
|
|
E-A1
|
Hong Kong International Trade and Exhibition Centre
|
Monitoring Date, Time, Frequency and Duration
3.16.
A summary of impact monitoring duration,
sampling parameter and frequency is presented in Table 3.3.
Table 3.3 Summary
of Impact Monitoring Programme
|
Impact Monitoring
|
Duration
|
Parameter
|
Frequency
|
|
Dust
|
1-hour continuous measurement
|
1-hour TSP
|
3 times per six days
|
|
Dust
|
24-hour continuous sampling
|
24-hour TSP
|
Once per six days
|
Result Summary
3.17.
According to our field observations, the major
dust source identified at the designated air quality monitoring station in the
reporting month are summarised in Table 3.4.
Table 3.4 Observation
at Air Quality Monitoring Station
|
Monitoring Station
|
Major Dust Source
|
|
E-A1
|
Nearby
traffic
|
3.18.
Air quality impact monitoring for the reporting
month was carried out on 2, 8, 14, 20, 23 and 29 December 2022 at E-A1.
3.19.

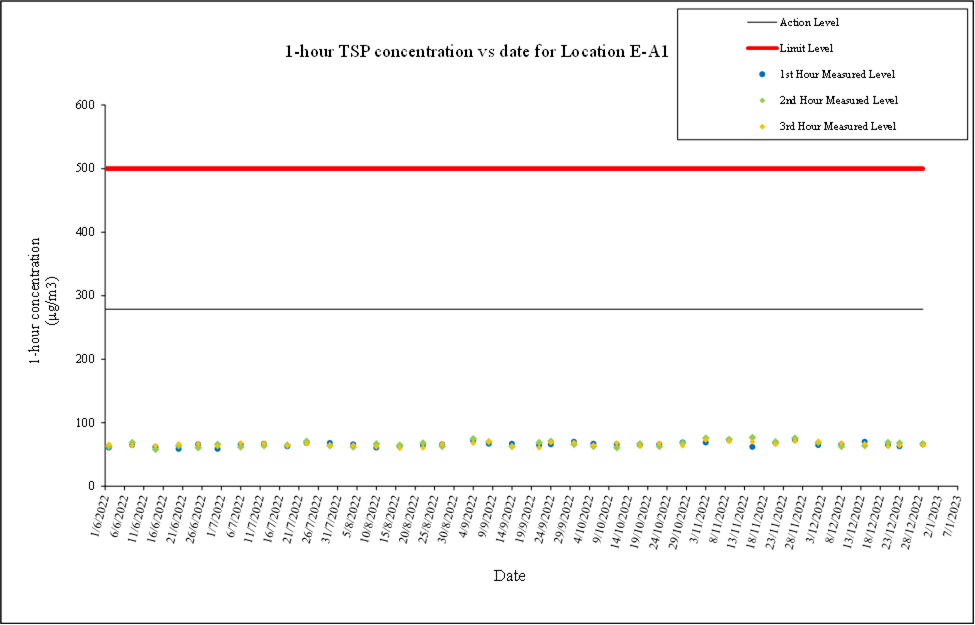

The results for 1-hour TSP and 24-hour TSP are

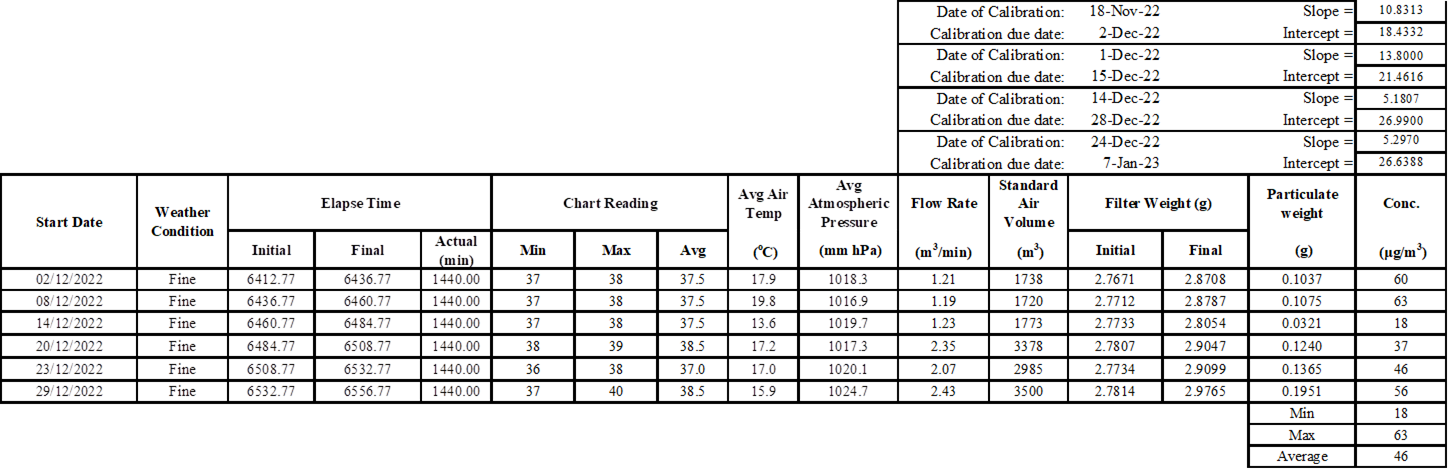

summarized in Table 3.5 and Table 3.6. The measurement data and details
of influencing factors such as weather conditions and site observation are
presented in Appendix K.
Table 3.5 Summary
of 1-hour TSP Monitoring Results
|
Monitoring Location
|
Range
(μg/m3)
|
Action Level(μg/m3)
|
Limit Level(μg/m3)
|
|
E-A1
|
63.0 – 71.0
|
279
|
500
|
Table 3.6 Summary
of 24-hour TSP Monitoring Results
|
Monitoring Location
|
Range
(μg/m3)
|
Action Level
(μg/m3)
|
Limit Level
(μg/m3)
|
|
E-A1
|
18 – 63
|
142
|
260
|
4.
Waste management
4.1.
The waste generated from this Project includes
inert C&D materials, and non-inert C&D materials. Non-inert C&D
materials are made up of general refuse, vegetative wastes and recyclable
wastes such as plastics and paper/cardboard packaging waste. Steel materials
generated from the project are also grouped into non-inert C&D materials as
the materials were not disposed of with other inert C&D materials. With
reference to relevant handling records and trip tickets of this Project, the
quantities of different types of waste generated in the reporting month are
summarised in Table 4.1. Details of cumulative waste management data are
presented as a waste flow table in Appendix L.
Table 4.1 Quantities of Waste Generated from the Project
|
Reporting
period
|
Quantity
|
|
Inert
C&D Materials
(in
‘000tonnes)
|
Chemical
Waste
(in
‘kg)
|
Non-inert
C&D Materials
|
|
Others,
e.g. General Refuse disposed at Landfill
(in
‘kg)
|
Recycled
materials
|
|
Paper/
cardboard
(in
‘kg)
|
Plastics
(in
‘000 kg)
|
Metals
(in
‘000 kg)
|
|
Dec 2022
|
1.64
|
0.00
|
176590.00
|
20.00
|
0.00
|
0.00
|
5.
Summary of Complaints, Notification of Summons and
Prosecutions
5.1.
The Environmental Complaint Handling Procedure
is shown in below Table 5.1.
Table 5.1 Environmental Complaint Handling Procedure
|
Complaint Received via Project Hotline
|
Complaint Received via 1823 or from other government departments
|
|
|
|
|
|
|
Contractor notify ER, ET and IEC
|
ER notify Contractor, ET and IEC
|
|
|
|
|
|
|
Contractor log complaint and date of receipt onto the
complaint database. Contractor, ER and ET to conduct
investigation of complaint
|
|
|
|
|
|
|
If complaint is considered not valid
|
If complaint is found valid
|
|
|
|
|
|
|
ET or ER to reply the complainant if necessary
|
Contractor to identify and implement remedial measures in
consultation with the IEC, ET and ER.
|
|
|
|
|
|
|
|
|
The ER, ET and IEC to review the effectiveness
of the Contractor’s remedial measures and the updated situation; ET to undertake additional monitoring
and audit to verify the situation if necessary and oversee that circumstances
leading to the complaint do not recur. ER to conduct further
inspection as necessary.
|
|
|
|
|
|
|
If the complaint is referred by the EPD, the Contractor
to prepare interim report on the status of the complaint investigation and
follow-up actions stipulated above, including the details of the remedial
measures and additional monitoring identified or already taken, for
submission to EPD within the time frame assigned by the EPD
|
|
|
|
|
|
The ET to record the details of the complaint, results of
the investigation, subsequent actions taken to address the complaint and
updated situation including the effectiveness of the remedial measures, supported
by regular and additional monitoring results in the monthly EM&A reports
|
|
|
|
|
|
|
5.2.
Should non-compliance of the criteria occur,
action in accordance with the Event and Action Plan in Appendix D and Appendix
E shall be carried out.
5.3.
No exceedance of the Action and Limit Levels of
24-hour TSP and 1-hour TSP monitoring was recorded in the reporting month.
5.4.
No complaint and non-compliance were received in
the reporting month.
5.5.
No notification of summons and successful
prosecution was received in the reporting month.
5.6.
Statistics on complaints, notifications of
summons and successful prosecutions are summarized in Appendix M.
6.
EM&A Site Inspection
6.1.
Site inspections were carried out on a weekly
basis to monitor the implementation of proper environmental pollution control
and mitigation measures under the Contract. In the reporting period, 4 site
inspections were carried out by the representative of ET, Contractor and
Engineer on 7, 14, 21 and 28 December 2022, along with bi-weekly inspection of
the implementation of landscape and visual mitigation measures conducted on 7
and 21 December 2022.
6.2.
One joint site inspection with IEC was also
undertaken on 14 December 2022. Minor deficiencies were observed during weekly
site inspection. Key observations during the site inspections are summarized in
Table 6.1.
Table 6.1 Site Observations
|
Date
|
Environmental Observations
|
Follow-up Status
|
|
7 Dec 2022
|
1.
Drainage system shall
be protected to avoid blockage by construction materials.
|
1.
Drainage system was
covered properly to avoid blockage by construction materials.
|
|
14 Dec 2022
|
1.
Drip tray shall be
provided for chemical storage.
|
1.
Drip tray was
provided for chemical container.
|
|
21 Dec 2022
|
NA
|
NA
|
|
28 Nov 2022
|
NA
|
NA
|
6.3.
The Contractor had rectified all observation
identified during environmental site inspection in the reporting period.
6.4.
According to the EIA Study Report, Environmental
Permit, contract documents and EM&A Manual, the mitigation measures
detailed in the documents had been implemented as much as practical during the

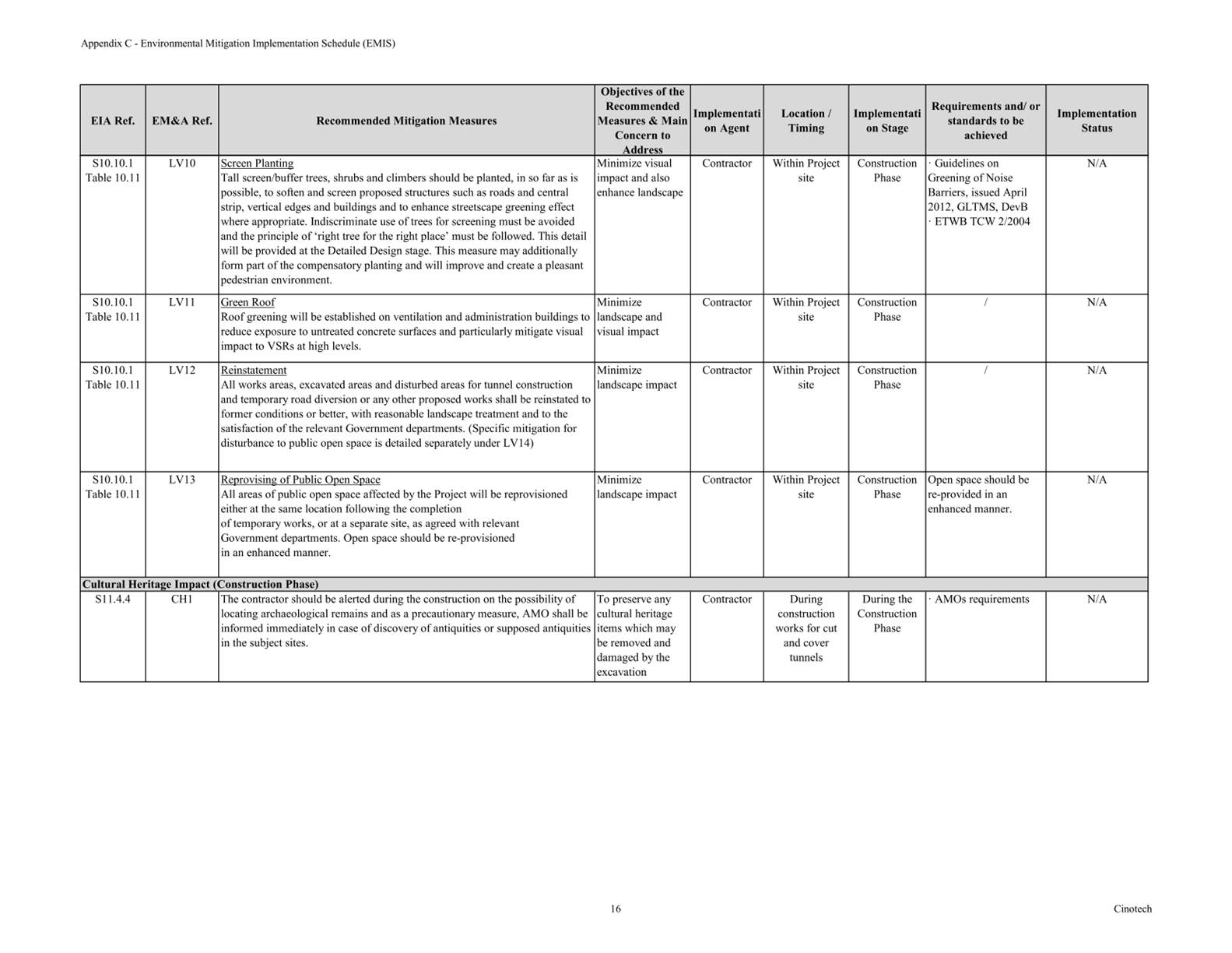

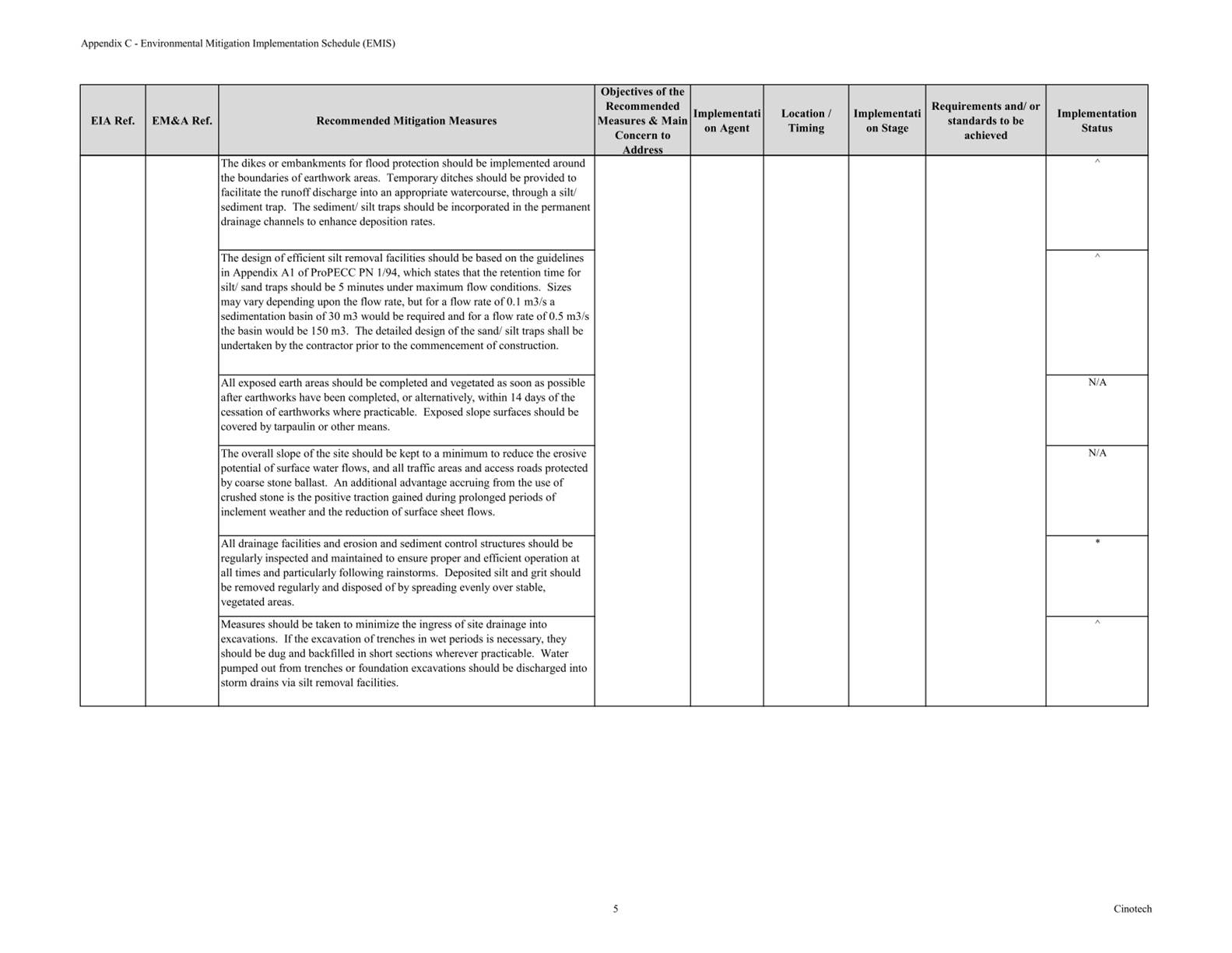

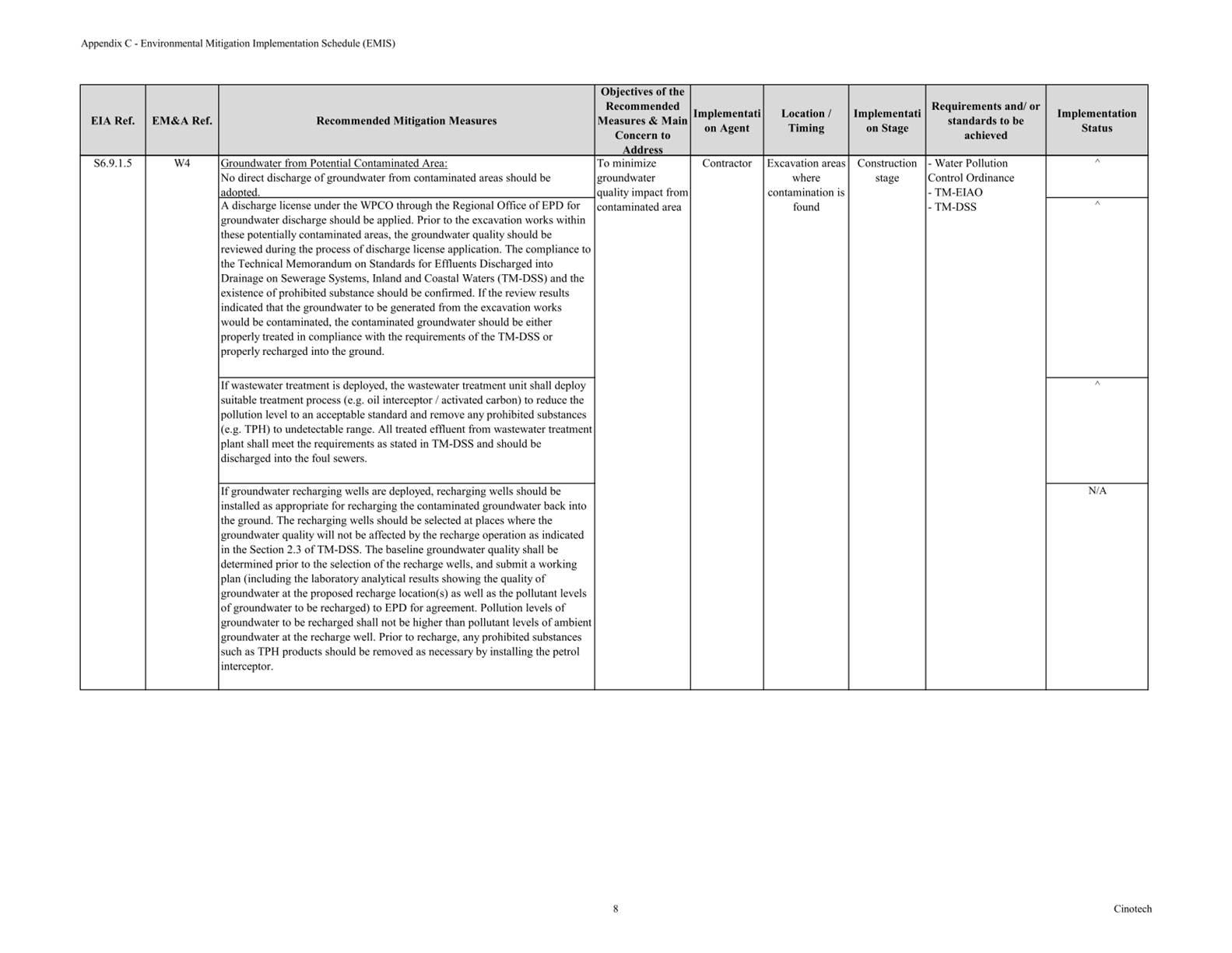

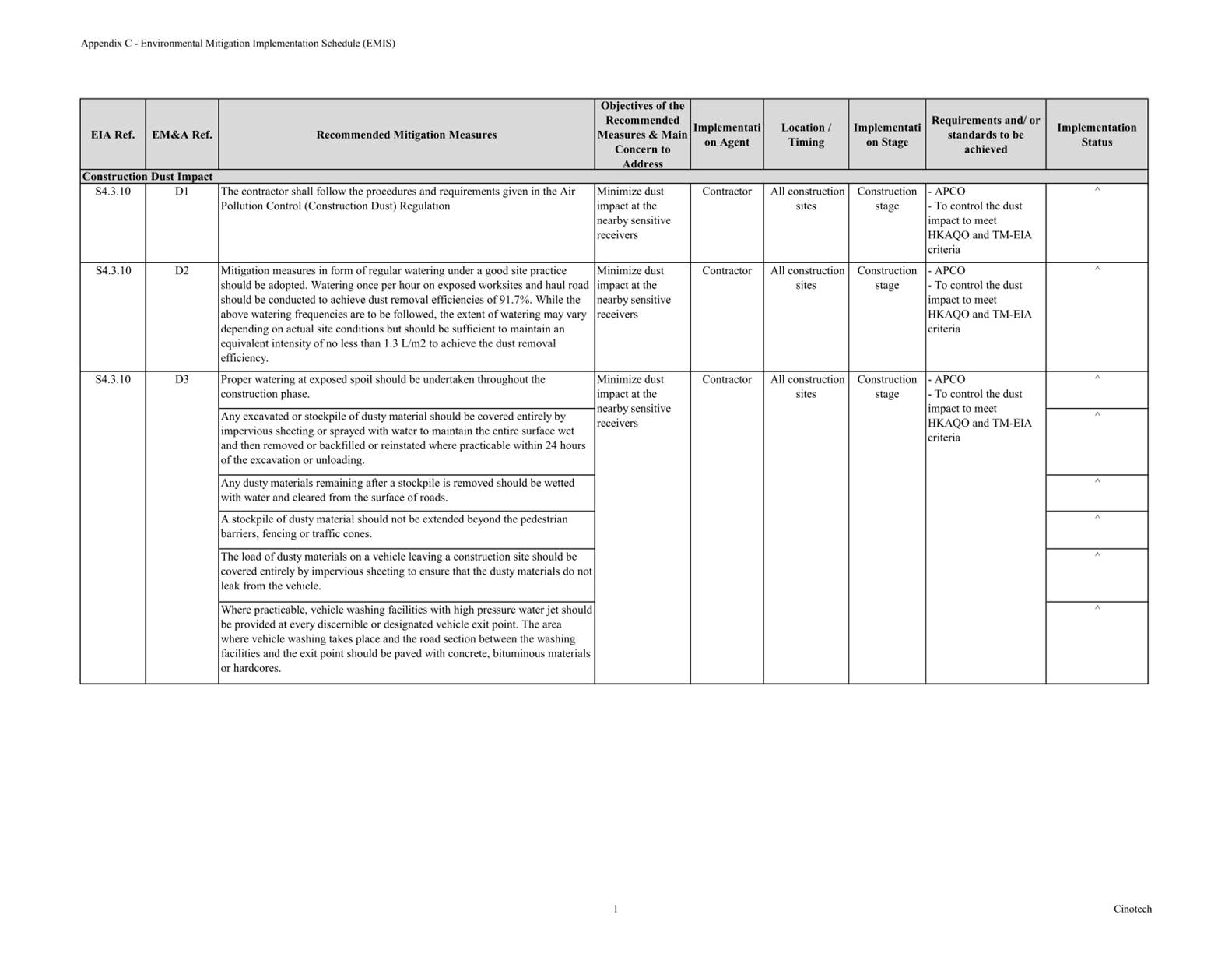

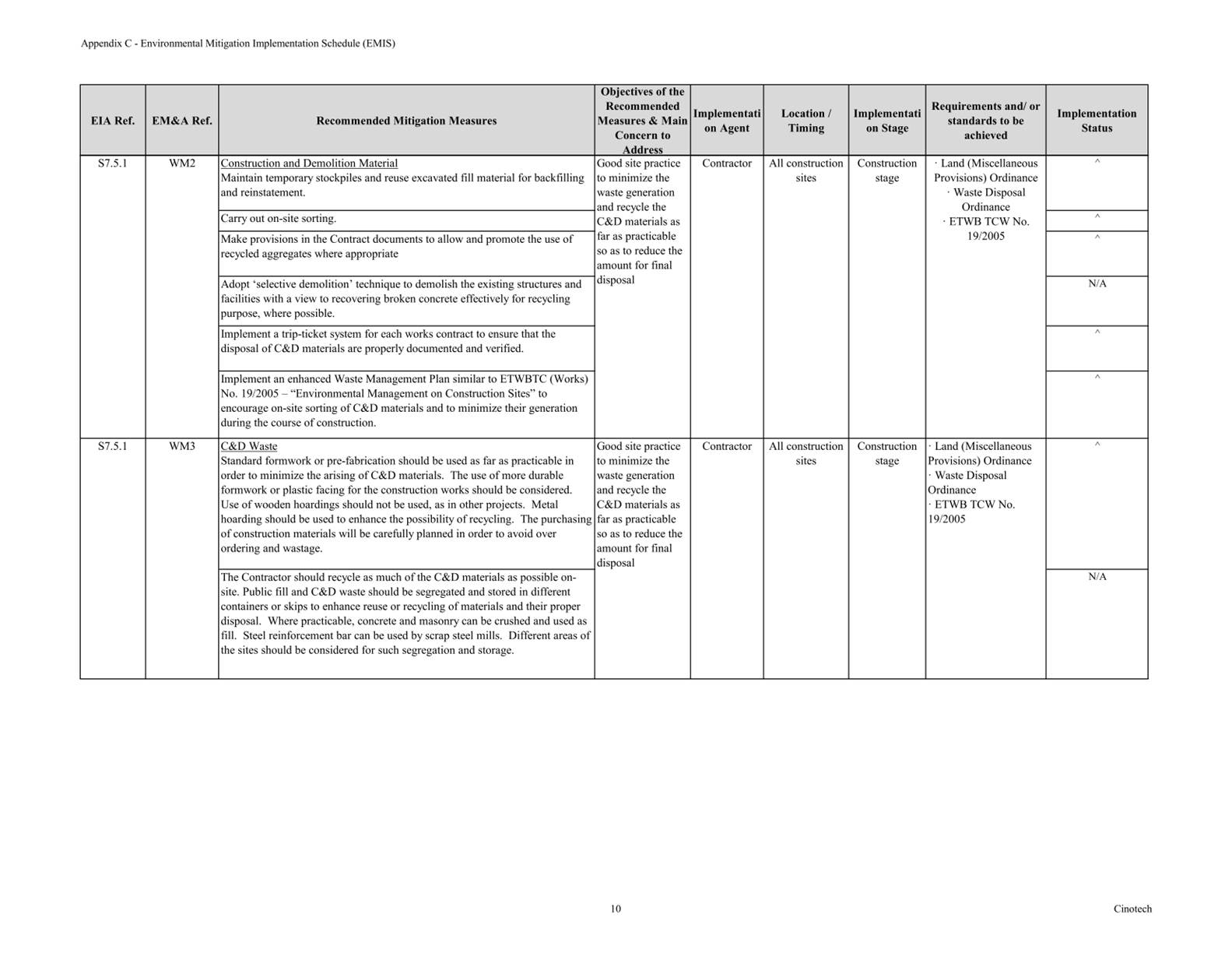

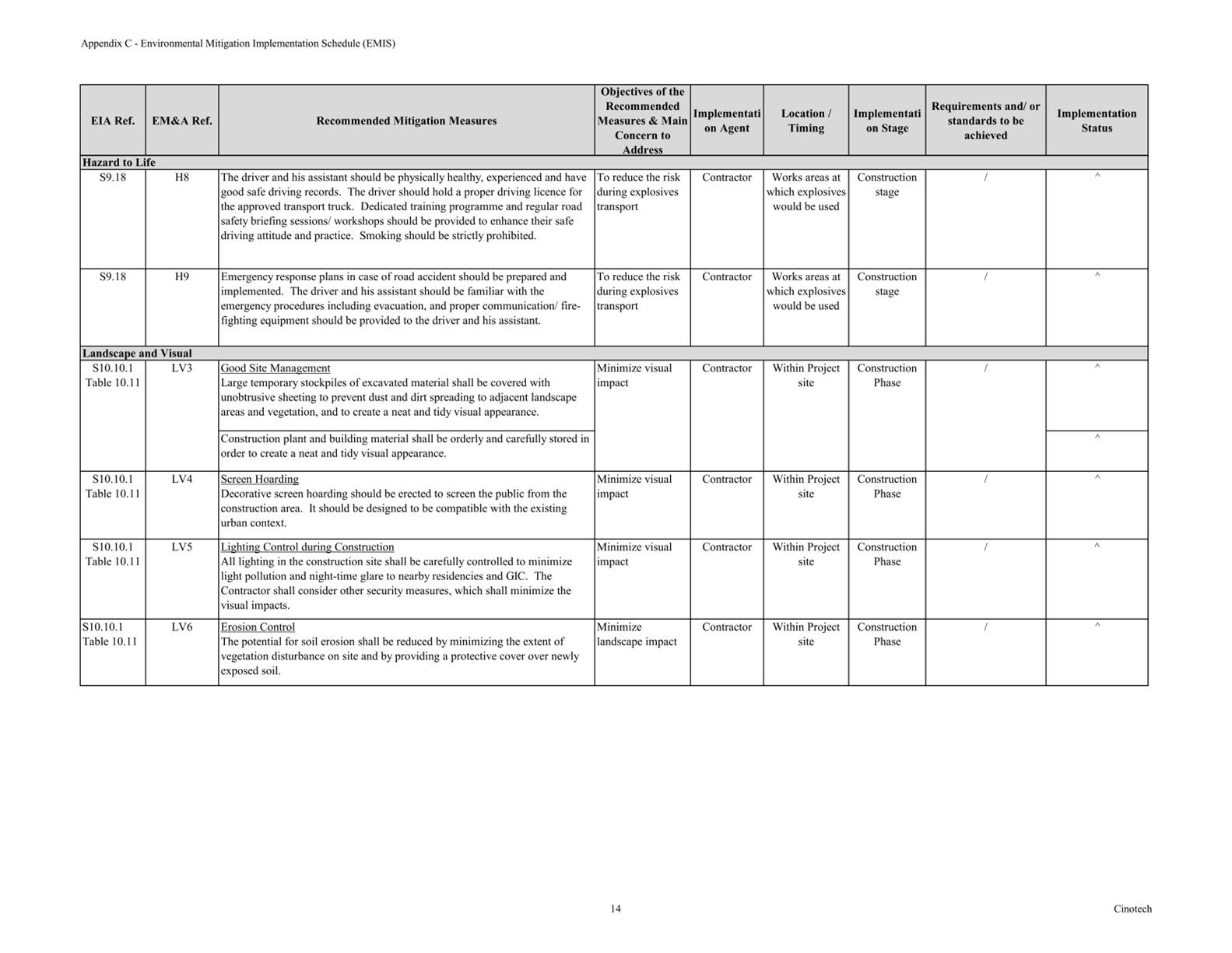

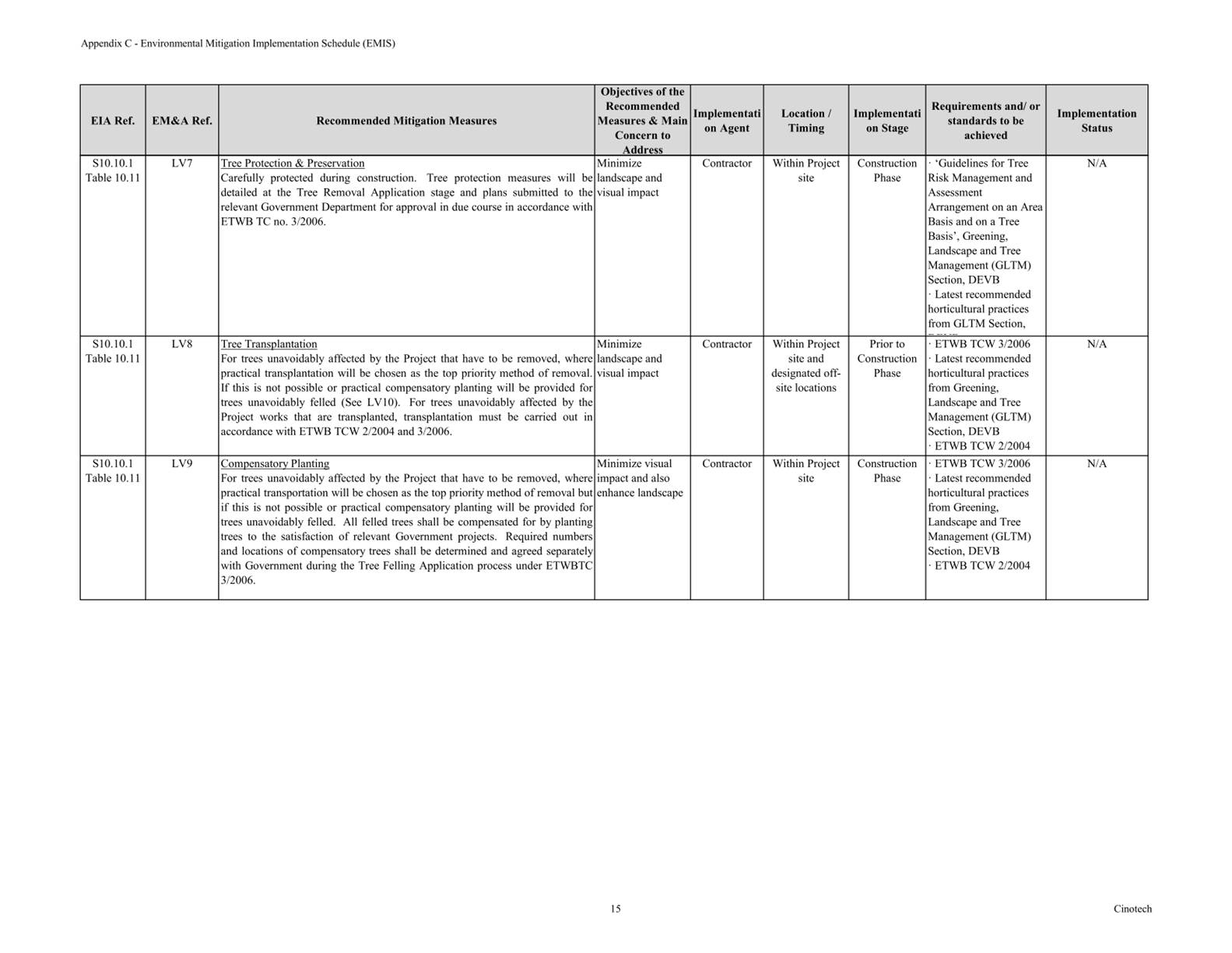

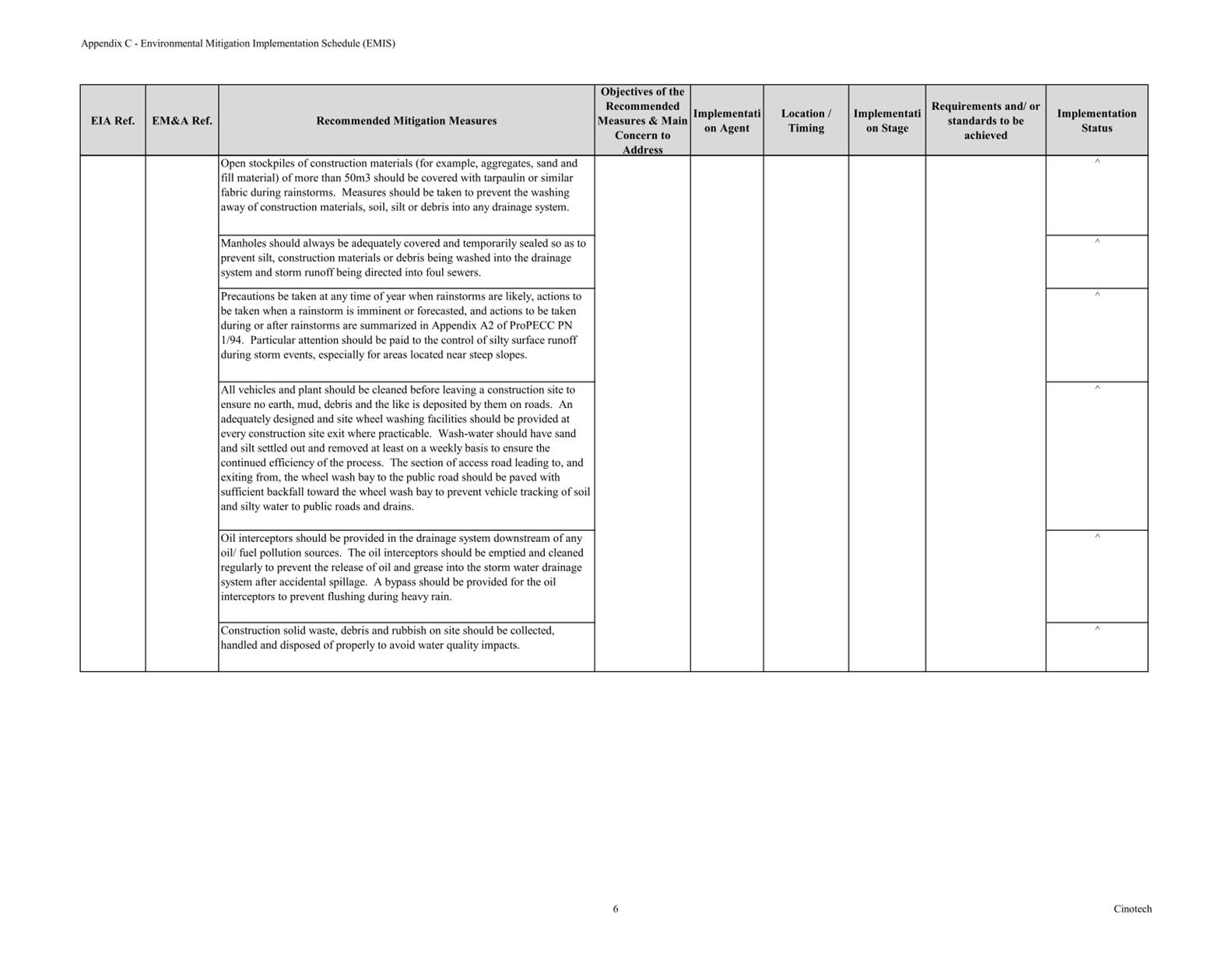

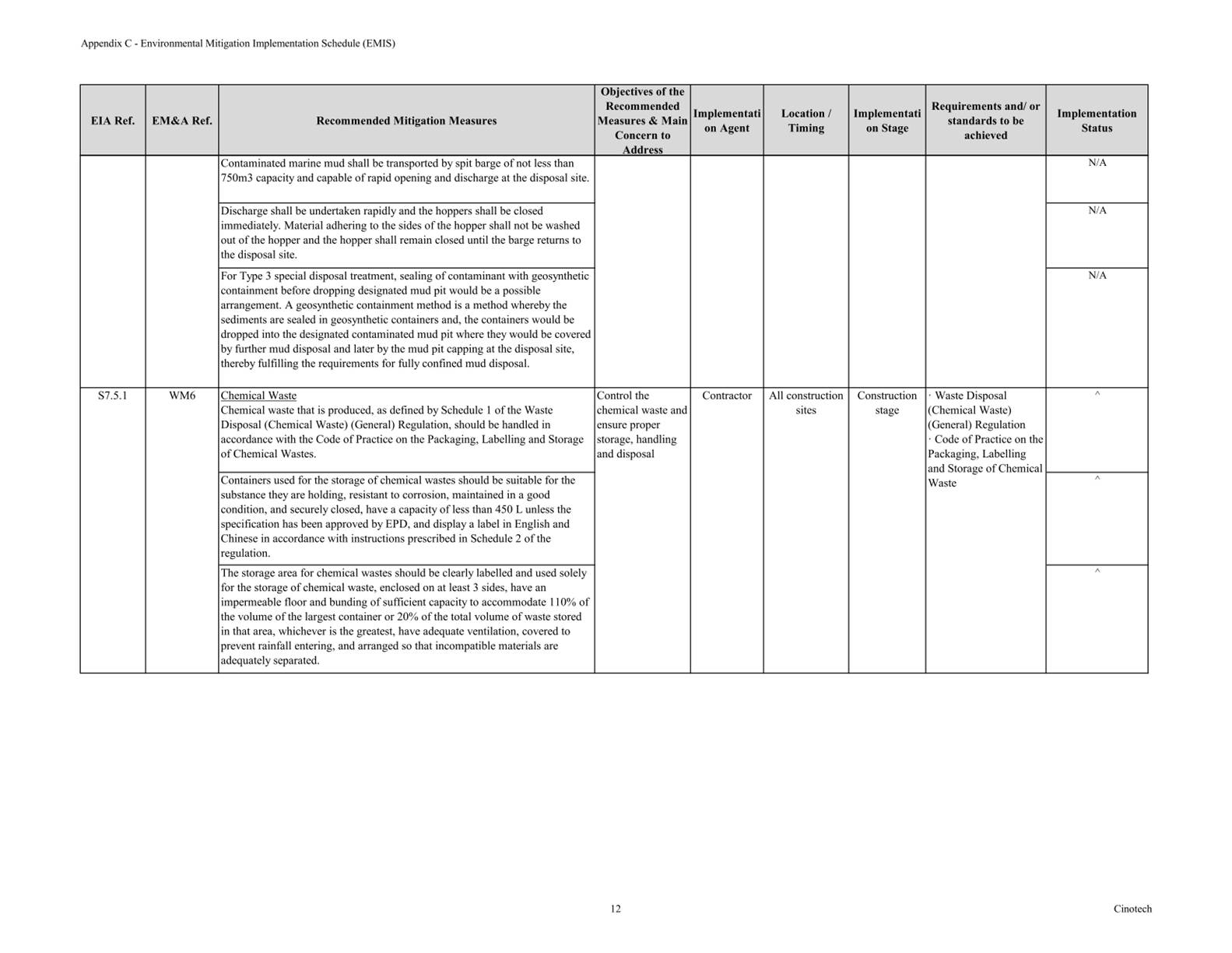

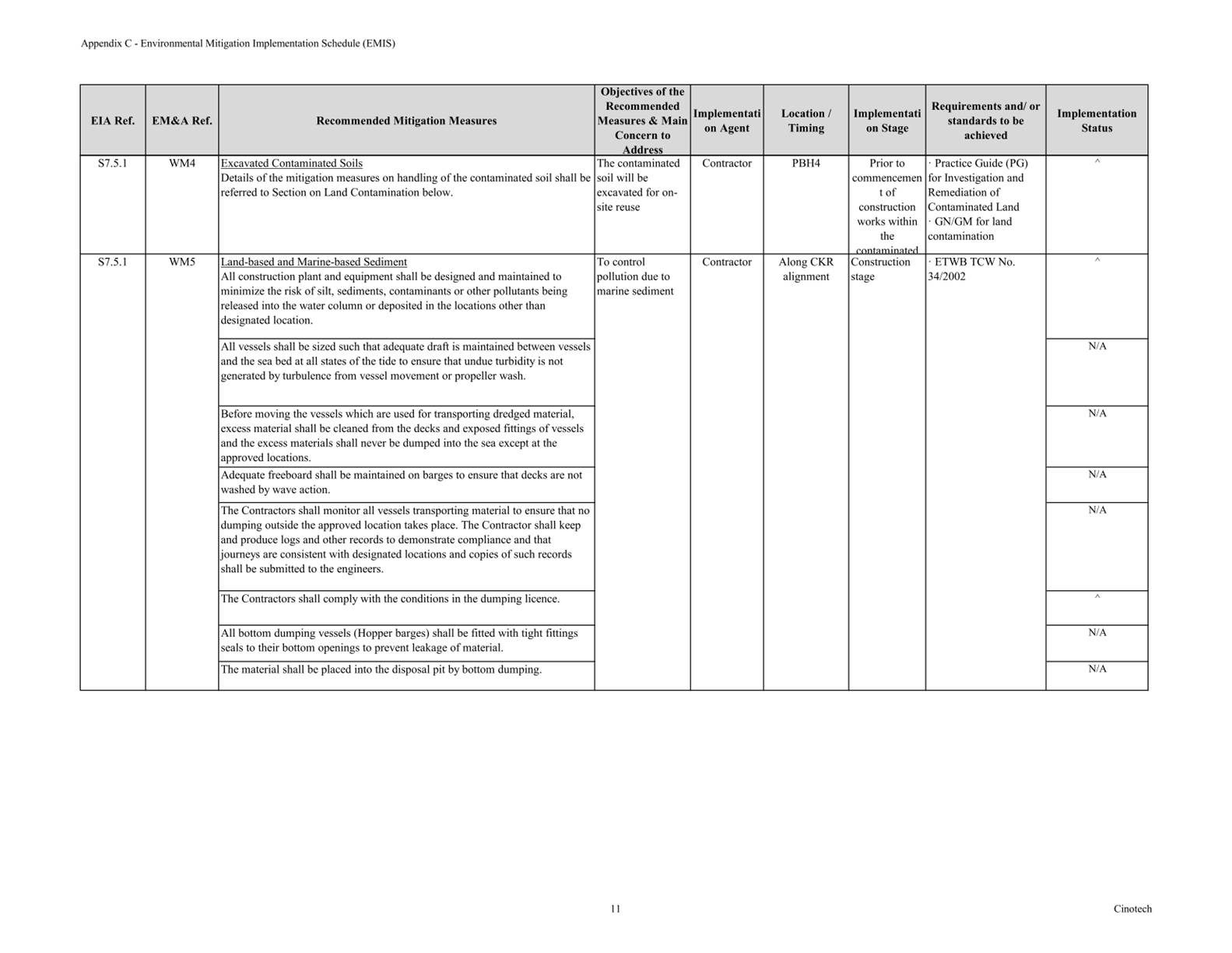

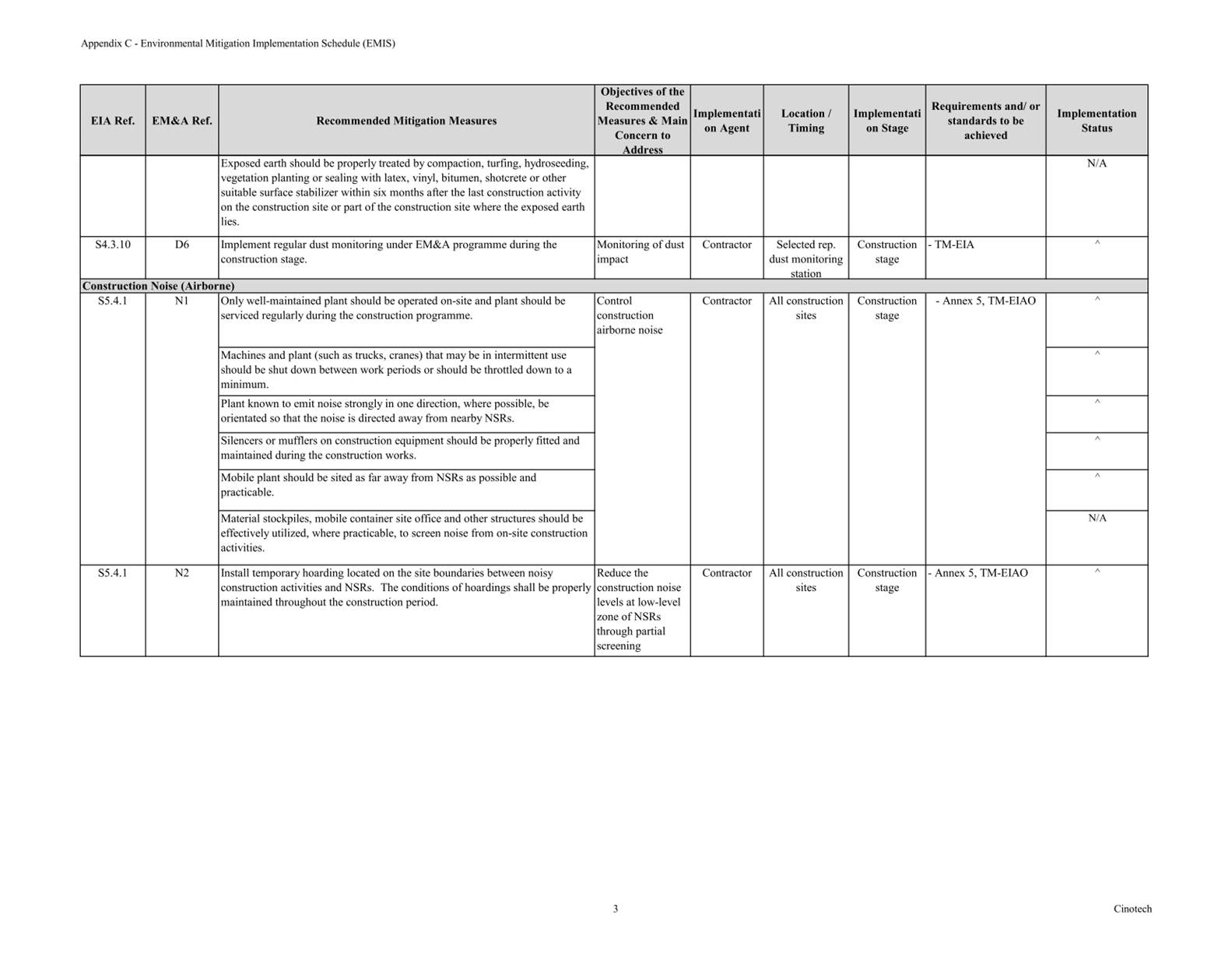

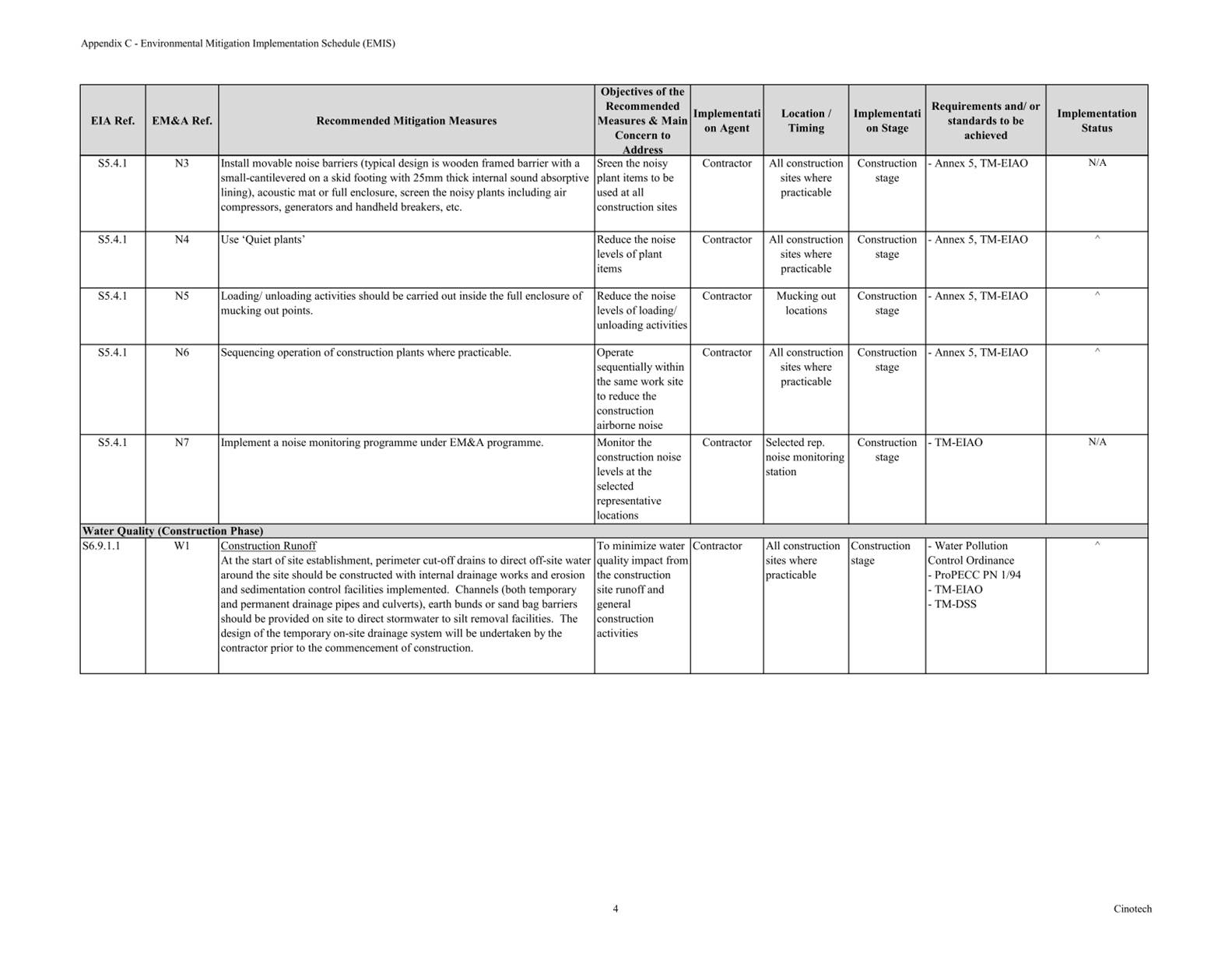

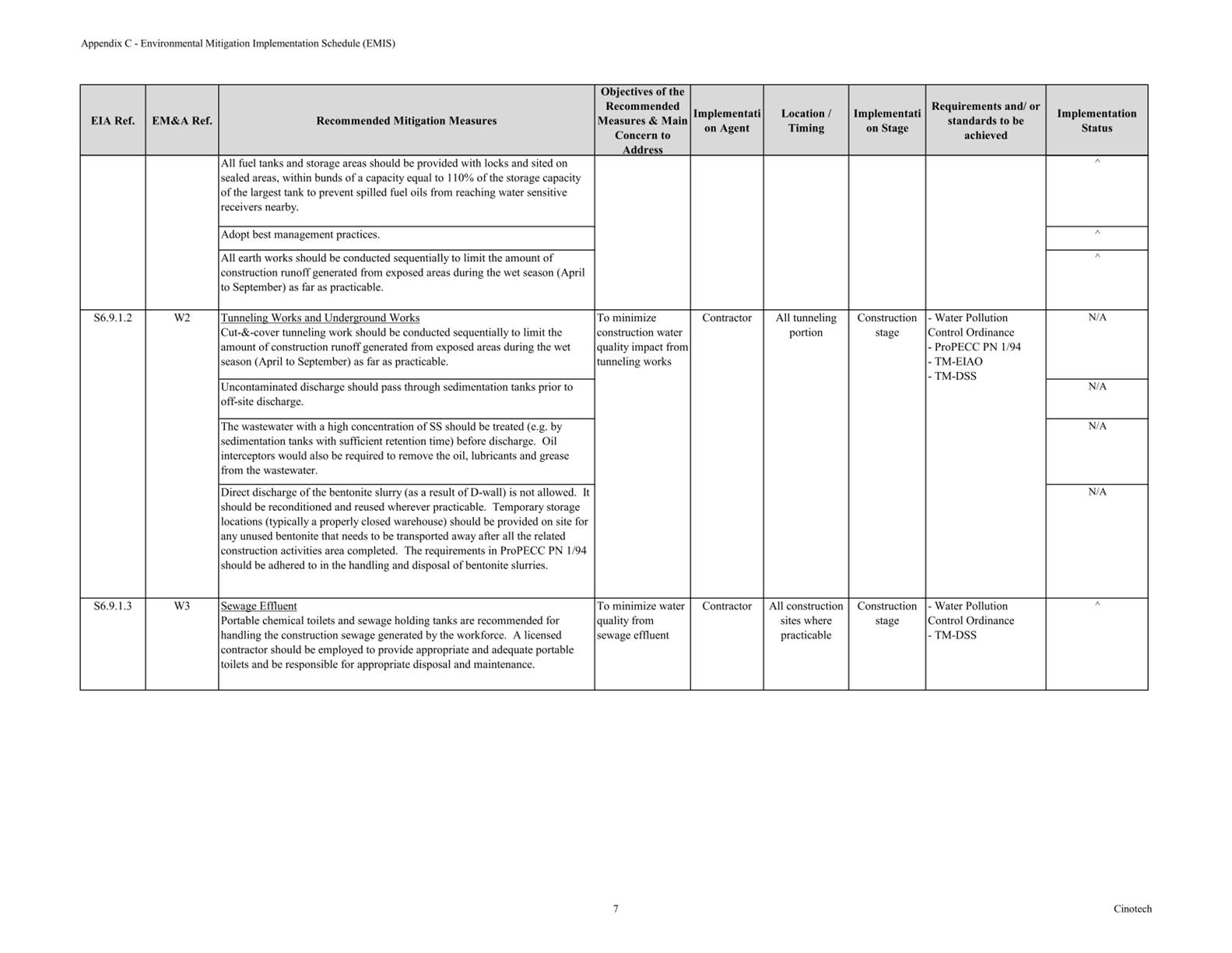

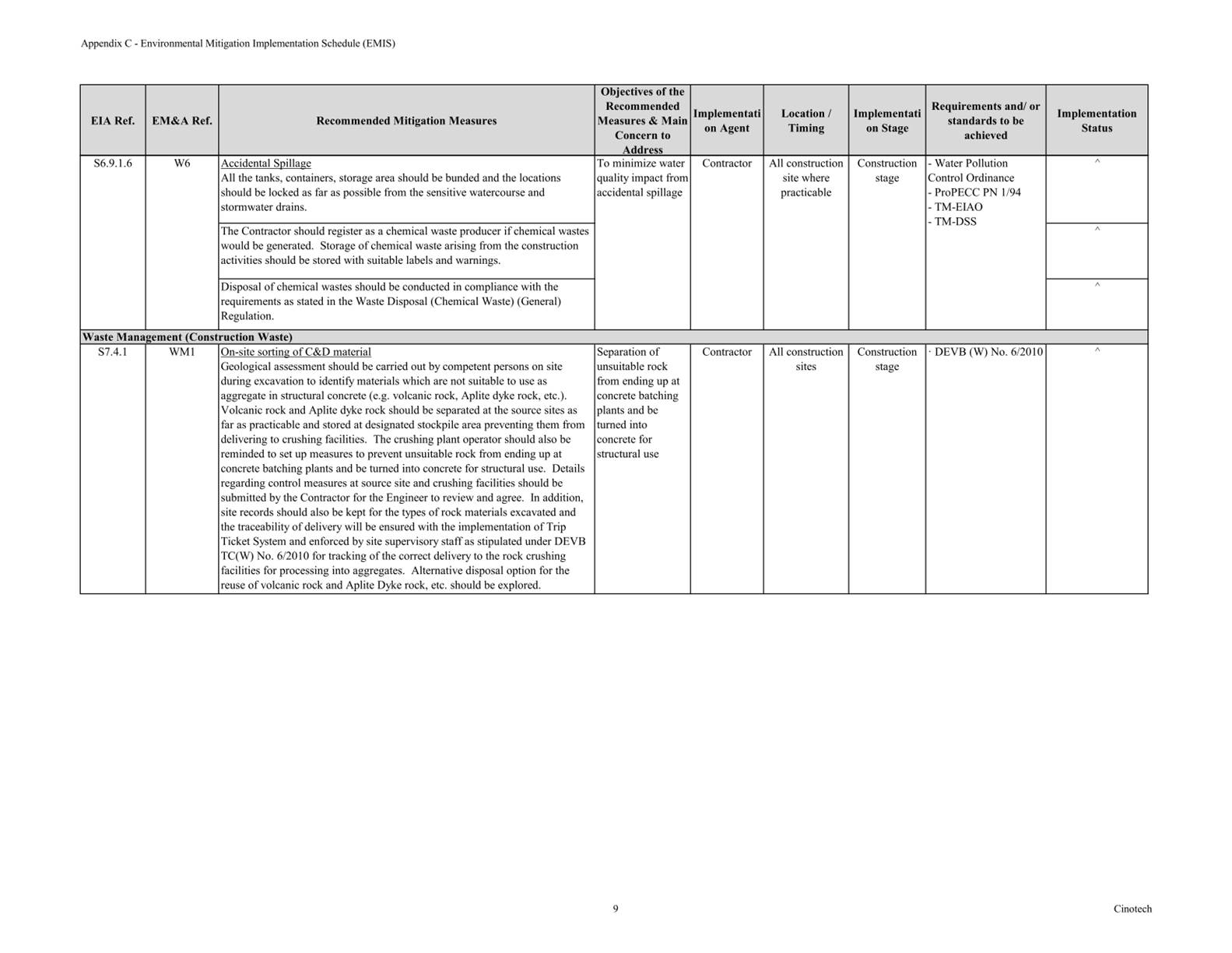

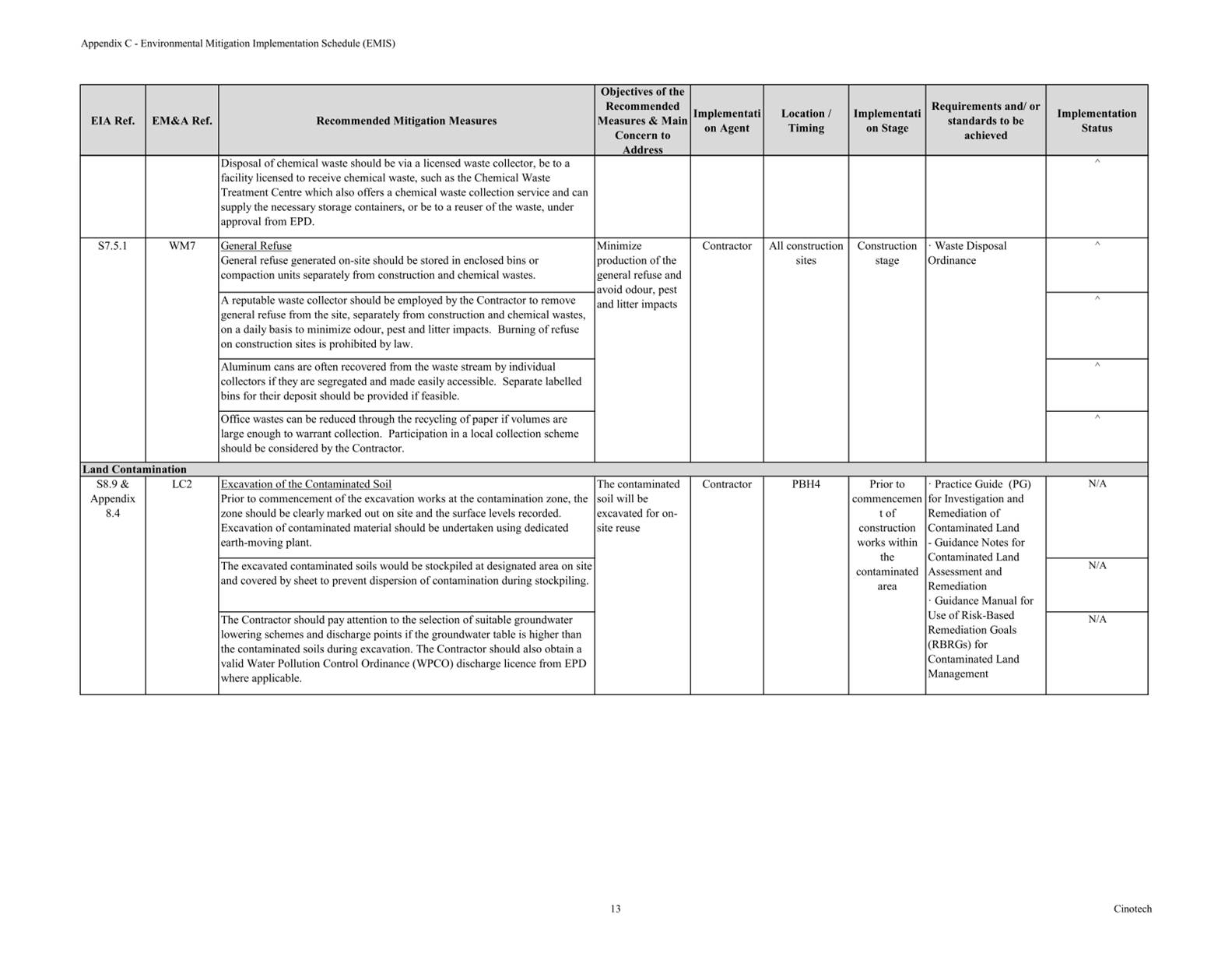

reporting period. An updated Implementation Status of Environmental Mitigation
Measures (EMIS) is provided in Appendix F.
7.
Future Key Issues
7.1.
The construction activities to be undertaken in
the next reporting month are:
|
Construction
Activities to be undertaken
|
|
·
S1, S3, S4, S9 CKRE, CKRW Bridge construction
·
Retaining Wall construction at U-Turn & Portion
2B
·
Excavation work at Portion 3B
·
Bored pile at U-turn
|
7.2.
Potential environmental impacts arising from the
above construction activities are mainly associated with dust and waste
management.
7.3.
The tentative schedule of 1-hour TSP and 24-hour
TSP monitoring in the next reporting period is presented in Appendix N.
7.4.

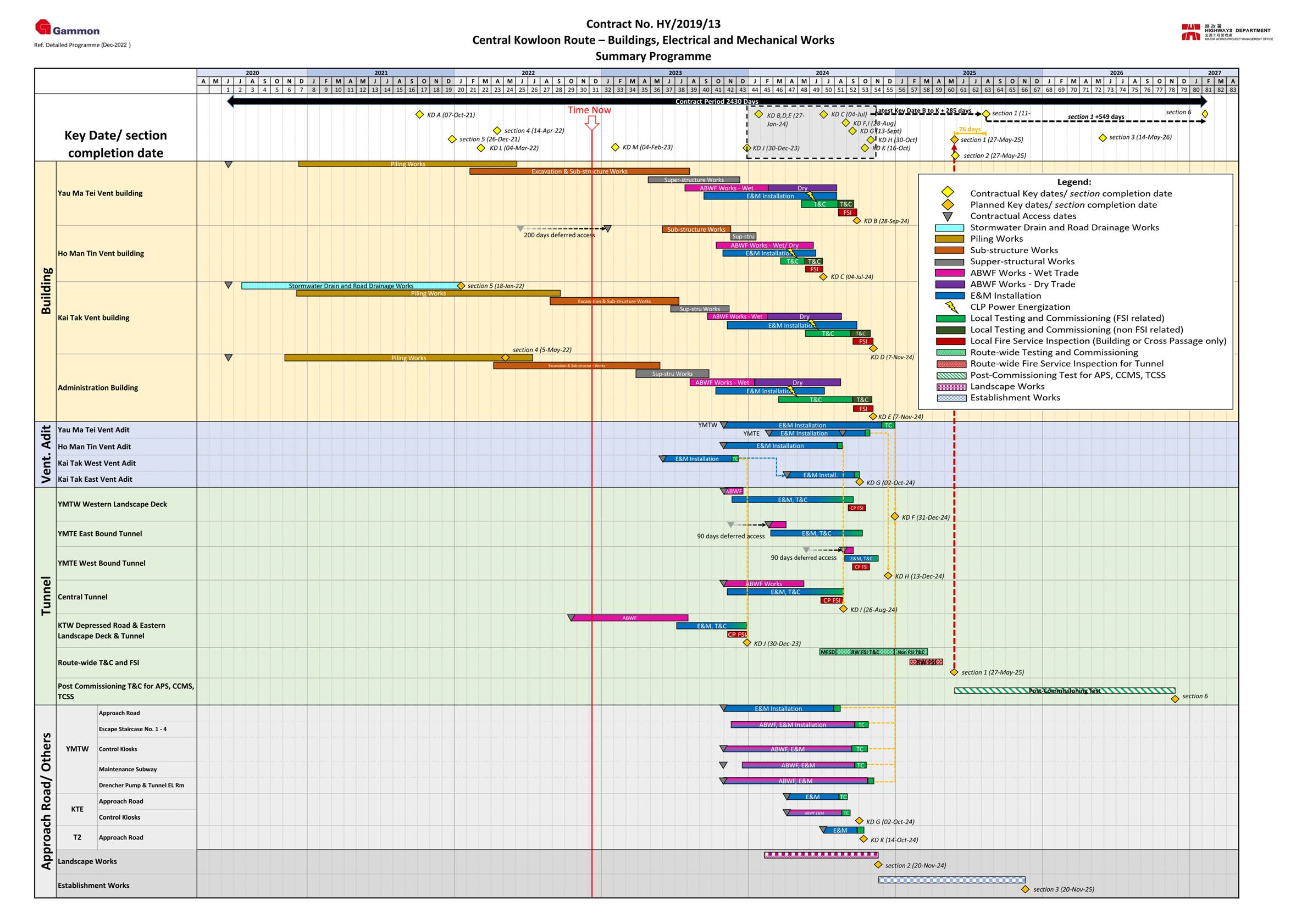

The construction programme for the Project for
the next reporting month is presented in Appendix B
8.
Conclusion and Recommendations
8.1.
This 40th monthly EM&A Report
presents the EM&A works undertaken during the period from 1 December 2022 to
31 December 2022 in accordance with the EM&A Manual and the requirement
under EP-457/2013/C and EP-457/2013/D.
8.2.
Air quality (including 1-hour TSP and 24-hour
TSP) was carried out in the reporting period. No exceedance of the Action and Limit
Level was recorded for air quality impact monitoring during the reporting month.
8.3.
Weekly environmental site inspections by the
representative of ET, Contractor and Engineer were conducted during the
reporting period. Joint site inspection with IEC were carried out on 14 December
2022. Minor deficiency was observed during site inspection and was rectified
within the specified deadlines. The environmental performance of the Project
was therefore considered satisfactory.
8.4.
No complaint and non-compliance situation were
received in the reporting month.
8.5.
No notification of summons or prosecution was
received since commencement of the Contract.
8.6.
The ET will keep track on the construction works
to confirm compliance of environmental requirements and the proper
implementation of all necessary mitigation measures.
8.7.
Appendix A
Alignment and Works Area for the Contract No. HY/2018/02
Appendix B
Construction Programme
Appendix C
Project Organization
Chart
Appendix D
Dust Event-Action Plan (EAP) (Air Quality
Monitoring)
|
EVENT
|
ACTION
|
|
ET
|
IEC
|
ER
|
CONTRACTOR
|
|
ACTION LEVEL
|
|
Exceedance for one
sample
|
1. Identify source,
investigate the causes of exceedance and propose remedial measures;
2. Inform IEC and
ER;
3.Repeat measurement
to confirm finding;
4. Increase
monitoring frequency to daily.
|
1.Check monitoring
data submitted by ET;
2.Check Contractor’s
working method.
|
1. Notify Contractor.
|
1.Rectify any
unacceptable practice;
2.Amend working
methods if appropriate.
|
|
Exceedance for two or
more consecutive samples
|
1. Identify source;
2. Inform IEC and
ER;
3.Advise the ER on
the effectiveness of the proposed remedial measures;
4.Repeat
measurements to confirm findings;
5. Increase
monitoring frequency to daily;
6.Discuss with IEC
and Contractor on remedial actions required;
7.If exceedance
continues, arrange meeting with IEC and ER;
8.If exceedance stops,
cease additional monitoring.
|
1.Check monitoring
data submitted by ET;
2.Check Contractor’s
working method;
3. Discuss with ET
and Contractor on possible remedial measures;
4.Advise the ET on
the effectiveness of the proposed remedial measures;
5.Supervise
Implementation of remedial measures.
|
1.Confirm receipt of
notification of failure in writing;
2. Notify
Contractor;
3.Ensure remedial
measures properly implemented.
|
1.Submit proposals
for remedial to ER within 3 working days of notification;
2.Implement the
agreed proposals;
3.Amend proposal if
appropriate.
|
|
LIMIT LEVEL
|
|
Exceedance for one
sample
|
1. Identify source,
investigate the causes of exceedance and propose remedial measures;
2. Inform ER,
Contractor and EPD;
3.Repeat measurement
to confirm finding;
4. Increase
monitoring frequency to daily;
5.Assess
effectiveness of Contractor’s remedial actions and keep IEC, EPD and ER
informed of the results.
|
1.Check monitoring
data submitted by ET;
2.Check Contractor’s
working method;
3. Discuss with ET
and Contractor on possible remedial measures;
4.Advise the ER on
the effectiveness of the proposed remedial measures;
5.Supervise
implementation of remedial measures.
|
1.Confirm receipt of
notification of failure in writing;
2. Notify
Contractor;
3.Ensure remedial
measures properly implemented.
|
1.Take immediate
action to avoid further exceedance;
2.Submit proposals
for remedial actions to IEC within 3 working days of notification;
Implement the agreed
proposals;
4.Amend proposal if
appropriate.
|
|
Exceedance for two or
more consecutive samples
|
1.Notify IEC, ER,
Contractor and EPD;
2. Identify source;
3.Repeat measurement
to confirm findings;
4. Increase
monitoring frequency to daily;
5.Carry out analysis
of Contractor’s working procedures to determine possible mitigation to be
implemented;
6. Arrange meeting
with IEC and ER to discuss the remedial actions to be taken;
7.Assess
effectiveness of Contractor’s remedial actions and keep IEC, EPD and ER
informed of the results;
8. If exceedance
stops, cease additional monitoring.
|
1.Discuss amongst
ER, ET, and Contractor on the potential remedial actions;
2.Review
Contractor’s remedial actions whenever necessary to assure their
effectiveness and advise the ER accordingly;
3.Supervise the
implementation of remedial measures.
|
1.Confirm receipt of
notification of failure in writing;
2. Notify
Contractor;
3. In consultation
with the IEC, agree with the Contractor on the remedial measures to be
implemented;
4.Ensure remedial
measures properly implemented;
5.If exceedance
continues, consider what portion of the work is responsible and instruct the
Contractor to stop that portion of work until the exceedance is abated.
|
1.Take immediate
action to avoid further exceedance;
2.Submit proposals
for remedial actions to IEC within 3 working days of notification;
3.Implement the
agreed proposals;
4.Resubmit proposals
if problem still not under control;
5.Stop the relevant
portion of works as determined by the ER until the exceedance is abated.
|
Note:
ET – Environmental Team ER –
Engineer’s Representative IEC – Independent Environmental Checker
Appendix E
Noise Event-Action Plan (EAP) (Noise
Monitoring)
|
EVENT
|
ACTION
|
|
ET
|
IEC
|
ER
|
CONTRACTOR
|
|
Action Level
|
1. Identify source, investigate the causes of exceedance and propose
remedial measures;
2. Notify IEC and Contractor;
3.Report the results of investigation to the IEC, ER and Contractor;
4. Discuss with the Contractor and formulate remedial measures;
5. Increase monitoring frequency to check mitigation effectiveness.
|
1.Review the analysed results submitted by the ET;
2.Review the proposed remedial measures by the Contractor and advise
the ER accordingly;
3. Supervise the implementation of remedial measures.
|
1.Confirm receipt of notification of failure in writing;
2. Notify Contractor;
3.Require Contractor to propose remedial measures for the analysed
noise problem;
4. Ensure remedial measures are properly implemented
|
1.Submit noise
mitigation proposals to IEC;
2.Implement
noise mitigation proposals.
|
Note:
ET – Environmental
Team
IEC – Independent
Environmental Checker
ER – Engineer’s
Representative
Appendix F
Environmental Mitigation Implementation
Schedule (EMIS)
Environmental Mitigation Implementation
Schedule – Contract No.: HY/2018/02 (Kai Tak East)
|
EIA Ref.
|
EM&A Log Ref.
|
Recommended Mitigation Measures
|
Objectives of the Recommended Measures
& Main Concerns to address
|
Implementation Agent
|
Location / Timing
|
Implementation Stage
|
Requirements and/ or standards to be
achieved
|
Implementation Status
|
|
Construction Dust Impact
|
|
S4.3.10
|
D1
|
The contractor shall follow
the procedures and requirements given in the Air Pollution Control
(Construction Dust) Regulation and Air Pollution Control (Non-road Mobile
Machinery) (Emission) Regulation.
|
Minimize dust impact and adverse
health effects at the nearby sensitive receivers
|
Contractor
|
All construction sites
|
Construction stage
|
· APCO
· To control the dust impact to
meet HKAQO and TM-EIA criteria
|
Implemented
|
|
S4.3.10
|
D2
|
· Mitigation measures in form of regular
watering under a good site practice should be adopted. Watering once per
hour on exposed worksites and haul road should be conducted to achieve dust
removal efficiencies of 91.7%. While the above watering frequencies are to
be followed, the extent of watering may vary depending on actual site
conditions but should be sufficient to maintain an equivalent intensity of no
less than 1.3 L/m2 to achieve the dust removal efficiency.
|
Minimize dust impact at the
nearby sensitive receivers
|
Contractor
|
All construction sites
|
Construction stage
|
· APCO
· To control the dust impact to
meet HKAQO and TM-EIA criteria
|
Implemented after reminder
|
|
xS4.3.10
|
D3
|
· Proper watering at exposed
spoil should be undertaken throughout the construction phase;
· Any excavated or stockpile of
dusty material should be covered entirely by impervious sheeting or sprayed
with water to maintain the entire surface wet and then removed or backfilled
or reinstated where practicable within 24 hours of the excavation or unloading;
· Any dusty materials remaining
after a stockpile is removed should be wetted with water and cleared from the
surface of roads;
· A stockpile of dusty material
should not be extended beyond the pedestrian barriers, fencing or traffic
cones;
· The load of dusty materials on
a vehicle leaving a construction site should be covered entirely by
impervious sheeting to ensure that the dusty materials do not leak from the
vehicle.
· Where practicable, vehicle
washing facilities with high pressure water jet should be provided at every
discernible or designated vehicle exit point. The area where vehicle washing
takes place and the road section between the washing facilities and the exit
point should be paved with concrete, bituminous materials or hardcores;
· When there are open excavation
and reinstatement works, hoarding of not less than 2.4m high should be
provided and properly maintained as far as practicable along the site
boundary with provision for public crossing. Good site practice shall also
be adopted by the Contractor to ensure the conditions of the hoardings are
properly maintained throughout the construction period;
· The portion of any road
leading only to construction site that is within 30m of a vehicle entrance or
exit should be kept clear of dusty materials;
· Surfaces where any pneumatic
or power-driven drilling, cutting, polishing or other mechanical breaking
operation takes place should be sprayed with water or a dust suppression
chemical continuously;
· Any area that involves
demolition activities should be sprayed with water or a dust suppression
chemical immediately prior to, during and immediately after the activities so
as to maintain the entire surface wet;
· Any skip hoist for material
transport should be totally enclosed by impervious sheeting;
· Every stock of more than 20
bags of cement or dry-pulverised fuel ash (PFA) should be covered entirely by
impervious sheeting or placed in an area sheltered on the top and the 3
sides;
· Loading, unloading, transfer,
handling or storage of bulk cement or dry PFA should be carried out in a
totally enclosed system or facility, and any vent or exhaust should be fitted
with an effective fabric filter or equivalent air pollution control system
· Exposed earth should be
properly treated by compaction, turfing, hydroseeding, vegetation planting or
sealing with latex, vinyl, bitumen, shotcrete or other suitable surface
stabilizer within six months after the last construction activity on the
construction site or part of the construction site where the exposed earth
lies.
|
Minimize dust impact at the
nearby sensitive receivers
|
Contractor
|
All construction sites
|
Construction stage
|
· APCO
· To control the dust impact to
meet HKAQO and TM-EIA criteria
|
Implemented
|
|
S4.3.10
|
D6
|
Implement regular dust
monitoring under EM&A programme during the construction stage.
|
Monitoring of dust impact
|
Contractor
|
Selected rep. dust monitoring station
|
Construction stage
|
· TM-EIA
|
Implemented
|
|
Construction
Noise (Airborne)
|
|
S5.4.1
|
N1
|
Implement
the following good site practices:
· Only well-maintained plant
should be operated on-site, and plant should be serviced regularly during the
construction programme;
· Machines and plant (such as
trucks, cranes) that may be in intermittent use should be shut down between
work periods or should be throttled down to a minimum;
· Plant known to emit noise
strongly in one direction, where possible, be orientated so that the noise is
directed away from nearby NSRs;
· Silencers or mufflers on
construction equipment should be properly fitted and maintained during the
construction works;
· Mobile plant should be sited
as far away from NSRs as possible and practicable;
· Material stockpiles, mobile
container site office and other structures should be effectively utilized,
where practicable, to screen noise from on-site construction activities.
|
Control construction airborne noise
|
Contractor
|
All construction sites
|
Construction stage
|
· Annex 5, TM-EIAO
|
Implemented after reminder
|
|
S5.4.1
|
N2
|
Install temporary hoarding located
on the site boundaries between noisy construction activities and NSRs. The
conditions of hoardings shall be properly maintained throughout the
construction period.
|
Reduce the
construction noise levels at low-level zone of NSRs through partial screening
|
Contractor
|
All construction
sites
|
Construction
stage
|
· Annex 5, TM-EIAO
|
Implemented
|
|
S5.4.1
|
N3
|
Install movable noise barriers
(typical design is wooden framed barrier with a small-cantilevered on a skid
footing with 25mm thick internal sound absorptive lining), acoustic mat or
full enclosure, screen the noisy plants including air compressors, generators
and handheld breakers, etc.
|
Sreen the noisy
plant items to be used at all construction sites
|
Contractor
|
All construction
sites where practicable
|
Construction
stage
|
· Annex 5, TM-EIAO
|
Implemented
|
|
S5.4.1
|
N4
|
Use
‘Quiet plant’
|
Reduce the noise
levels of plant items
|
Contractor
|
All construction
sites where practicable
|
Construction
stage
|
· Annex 5, TM-EIAO
|
Implemented
|
|
S5.4.1
|
N5
|
Loading/ unloading activities
should be carried out inside the full enclosure of mucking out points.
|
Reduce the noise
levels of loading/ unloading activities
|
Contractor
|
Mucking out
locations
|
Construction
stage
|
· Annex 5, TM-EIAO
|
Implemented
|
|
S5.4.1
|
N6
|
Sequencing operation of
construction plants where practicable.
|
Operate
sequentially within the same work site to reduce the construction airborne
noise
|
Contractor
|
All construction
sites where practicable
|
Construction
stage
|
· Annex 5, TM-EIAO
|
Implemented
|
|
S5.4.1
|
N7
|
Implement a noise monitoring
programme under EM&A programme.
|
Monitor the
construction noise levels at the selected representative locations
|
Contractor
|
Selected rep.
noise monitoring station
|
Construction
stage
|
· TM-EIAO
|
Implemented
|
|
Water Quality (Construction
Phase)
|
|
S6.9.1.1
|
W1
|
In accordance with the
Practice Note for Professional Persons on Construction Site Drainage,
Environmental Protection Department, 1994 (ProPECC PN1/94), construction
phase mitigation measures shall include the following:
Construction Runoff
· At the start of site
establishment, perimeter cut-off drains to direct off-site water around the
site should be constructed with internal drainage works and erosion and
sedimentation control facilities implemented. Channels (both temporary and
permanent drainage pipes and culverts), earth bunds or sandbag barriers
should be provided on site to direct stormwater to silt removal facilities.
The design of the temporary on-site drainage system will be undertaken by the
contractor prior to the commencement of construction;
· The dikes or embankments for
flood protection should be implemented around the boundaries of earthwork
areas. Temporary ditches should be provided to facilitate the runoff
discharge into an appropriate watercourse, through a silt/ sediment trap.
The sediment/ silt traps should be incorporated in the permanent drainage
channels to enhance deposition rates;
· The design of efficient silt
removal facilities should be based on the guidelines in Appendix A1 of
ProPECC PN 1/94, which states that the retention time for silt/ sand traps
should be 5 minutes under maximum flow conditions. Sizes may vary depending
upon the flow rate, but for a flow rate of 0.1 m3/s a sedimentation basin of
30 m3 would be required and for a flow rate of 0.5 m3/s the basin would be
150 m3. The detailed design of the sand/ silt traps shall be undertaken by
the contractor prior to the commencement of construction;
· All exposed earth areas should
be completed and vegetated as soon as possible after earthworks have been
completed, or alternatively, within 14 days of the cessation of earthworks
where practicable. Exposed slope surfaces should be covered by tarpaulin or
other means;
· The overall slope of the site
should be kept to a minimum to reduce the erosive potential of surface water
flows, and all traffic areas and access roads protected by coarse stone
ballast. An additional advantage accruing from the use of crushed stone is
the positive traction gained during prolonged periods of inclement weather
and the reduction of surface sheet flows;
· All drainage facilities and
erosion and sediment control structures should be regularly inspected and
maintained to ensure proper and efficient operation at all times and
particularly following rainstorms. Deposited silt and grit should be removed
regularly and disposed of by spreading evenly over stable, vegetated areas;
· Measures should be taken to
minimize the ingress of site drainage into excavations. If the excavation of
trenches in wet periods is necessary, they should be dug and backfilled in
short sections wherever practicable. Water pumped out from trenches or
foundation excavations should be discharged into storm drains via silt
removal facilities;
· Open stockpiles of
construction materials (for example, aggregates, sand and fill material) of
more than 50m3 should be covered with tarpaulin or similar fabric during
rainstorms. Measures should be taken to prevent the washing away of
construction materials, soil, silt or debris into any drainage system;
· Manholes should always be
adequately covered and temporarily sealed so as to prevent silt, construction
materials or debris being washed into the drainage system and storm runoff
being directed into foul sewers;
· Precautions be taken at any
time of year when rainstorms are likely, actions to be taken when a rainstorm
is imminent or forecasted, and actions to be taken during or after rainstorms
are summarized in Appendix A2 of ProPECC PN 1/94. Particular attention
should be paid to the control of silty surface runoff during storm events,
especially for areas located near steep slopes;
· All vehicles and plant should
be cleaned before leaving a construction site to ensure no earth, mud, debris
and the like is deposited by them on roads. An adequately designed and site
wheel washing facilities should be provided at every construction site exit
where practicable. Wash-water should have sand and silt settled out and
removed at least on a weekly basis to ensure the continued efficiency of the
process. The section of access road leading to, and exiting from, the wheel
wash bay to the public road should be paved with sufficient backfall toward
the wheel wash bay to prevent vehicle tracking of soil and silty water to
public roads and drains;
· Oil interceptors should be
provided in the drainage system downstream of any oil/ fuel pollution
sources. The oil interceptors should be emptied and cleaned regularly to
prevent the release of oil and grease into the storm water drainage system
after accidental spillage. A bypass should be provided for the oil
interceptors to prevent flushing during heavy rain;
· Construction solid waste,
debris and rubbish on site should be collected, handled and disposed of
properly to avoid water quality impacts;
· All fuel tanks and storage
areas should be provided with locks and sited on sealed areas, within bunds
of a capacity equal to 110% of the storage capacity of the largest tank to
prevent spilled fuel oils from reaching water sensitive receivers nearby;
· Adopt best management
practices;
· All earth works should be
conducted sequentially to limit the amount of construction runoff generated
from exposed areas during the wet season (April to September) as far as
practicable.
|
To minimize
water quality impact from the construction site runoff and general
construction activities
|
Contractor
|
All construction
sites where practicable
|
Construction
stage
|
· Water Pollution Control
Ordinance
· ProPECC PN 1/94
· TM-EIAO
· TM-DSS
|
Implemented
after observation
|
|
S6.9.1.2
|
W2
|
Tunneling Works and Underground Works
· Cut-&-cover tunneling work should be conducted sequentially
to limit the amount of
construction runoff generated from exposed areas during the wet season (April to
September) as far as practicable.
· Uncontaminated discharge
should pass through sedimentation tanks prior to off-site discharge;
· The wastewater with a high
concentration of SS should be treated (e.g. by sedimentation tanks with
sufficient retention time) before discharge. Oil interceptors would also be
required to remove the oil, lubricants and grease from the wastewater;
· Direct discharge of the
bentonite slurry (as a result of D-wall) is not allowed. It should be
reconditioned and reused wherever practicable. Temporary storage locations (typically
a properly closed warehouse) should be provided on site for any unused
bentonite that needs to be transported away after all the related
construction activities area completed. The requirements in ProPECC PN 1/94
should be adhered to in the handling and disposal of bentonite slurries.
|
To minimize
construction water quality impact from tunneling works
|
Contractor
|
All tunneling
portion
|
Construction
stage
|
· Water Pollution Control
Ordinance
· ProPECC PN 1/94
· TM-DSS
· TM-EIAO
|
N/A
|
|
S6.9.1.3
|
W3
|
Sewage Effluent
· Portable chemical toilets and
sewage holding tanks are recommended for handling the construction sewage
generated by the workforce. A licensed contractor should be employed to
provide appropriate and adequate portable toilets and be responsible for
appropriate disposal and maintenance.
|
To minimize
water quality from sewage effluent
|
Contractor
|
All construction
sites where practicable
|
Construction
stage
|
· Water Pollution Control
Ordinance
· TM-DSS
|
Implemented
|
|
S6.9.1.5
|
W4
|
Groundwater from Potential
Contaminated Area:
·
No direct
discharge of groundwater from contaminated areas should be adopted.
· A discharge license under the
WPCO through the Regional Office
of EPD for groundwater discharge should be applied. Prior to the excavation works within these
potentially contaminated areas,
the groundwater quality should be reviewed during the process of discharge license application.
The compliance to the Technical
Memorandum on Standards for Effluents Discharged into Drainage on Sewerage Systems, Inland
and Coastal Waters (TM-DSS) and the existence of prohibited substance should
be confirmed. If the review
results indicated that the groundwater to be generated from the excavation works
would be contaminated, the
contaminated groundwater should be either properly treated in compliance with the requirements of
the TM-DSS or properly recharged
into the ground.
· If wastewater treatment is
deployed, the wastewater treatment unit shall deploy suitable treatment process (e.g. oil
interceptor / activated carbon) to reduce
the pollution level to an acceptable standard and remove any prohibited substances (e.g. TPH) to undetectable range. All treated effluent
from wastewater treatment plant shall meet the
requirements as stated in TM-DSS and should be discharged into the foul sewers.
· If groundwater recharging
wells are deployed, recharging wells should be installed as appropriate for recharging the contaminated groundwater back into the
ground. The recharging wells
should be selected at places where the groundwater quality will not be affected by the recharge
operation as indicated in the Section
2.3 of TM-DSS. The baseline groundwater quality shall be determined prior to the selection of
the recharge wells, and submit
a working plan (including the laboratory analytical results showing the quality of
groundwater at the proposed recharge location(s) as well as the pollutant
levels of groundwater to be recharged) to EPD for agreement. Pollution levels
of groundwater to be recharged shall not be higher than pollutant levels of
ambient groundwater at the recharge well. Prior to recharge, any prohibited
substances such as TPH products should be removed as necessary by installing
the petrol interceptor.
|
To minimize
groundwater quality impact from contaminated area
|
Contractor
|
Excavation areas
where contamination is found
|
Construction
stage
|
· Water Pollution Control
Ordinance
· TM-DSS
· TM-EIAO
|
Implemented
|
|
S6.9.1.6
|
W6
|
Accidental Spillage
In order to prevent accidental
spillage of chemicals, the following is recommended:
· All the tanks, containers,
storage area should be bunded and the locations should be locked as far as
possible from the sensitive watercourse and stormwater drains;
· The Contractor should register
as a chemical waste producer if chemical wastes would be generated. Storage
of chemical waste arising from the construction activities should be stored
with suitable labels and warnings.
Disposal of chemical wastes
should be conducted in compliance with the requirements as stated in the
Waste Disposal (Chemical Waste) (General) Regulation.
|
To minimize
water quality impact from accidental spillage
|
Contractor
|
All construction
site where practicable
|
Construction
stage
|
· Water Pollution Control
Ordinance
· ProPECC PN 1/94
· TM-EIAO
· TM-DSS
|
Implemented
|
|
Waste Management
(Construction Waste)
|
|
S7.4.1
|
WM1
|
On-site sorting of C&D
material
· Geological assessment should
be carried out by competent persons on site during excavation to identify
materials which are not suitable to use as aggregate in structural concrete
(e.g. volcanic rock, Aplite dyke rock, etc.). Volcanic rock and Aplite dyke
rock should be separated at the source sites as far as practicable and stored
at designated stockpile area preventing them from delivering to crushing
facilities. The crushing plant operator should also be reminded to set up
measures to prevent unsuitable rock from ending up at concrete batching
plants and be turned into concrete for structural use. Details regarding
control measures at source site and crushing facilities should be submitted
by the Contractor for the Engineer to review and agree. In addition, site
records should also be kept for the types of rock materials excavated and the
traceability of delivery will be ensured with the implementation of Trip
Ticket System and enforced by site supervisory staff as stipulated under DEVB
TC(W) No. 6/2010 for tracking of the correct delivery to the rock crushing
facilities for processing into aggregates. Alternative disposal option for
the reuse of volcanic rock and Aplite Dyke rock, etc. should be explored.
|
Separation of
unsuitable rock from ending up at concrete batching plants and be turned into
concrete for structural use
|
Contractor
|
All construction
sites
|
Construction
stage
|
· DEVB (W) No. 6/2010
|
N/A
|
|
S7.5.1
|
WM2
|
Construction and Demolition
Material
· Maintain temporary stockpiles
and reuse excavated fill material for backfilling and reinstatement;
· Carry out on-site sorting;
· Make provisions in the
Contract documents to allow and promote the use of recycled aggregates where
appropriate;
· Adopt ‘selective demolition’
technique to demolish the existing structures and facilities with a view to
recovering broken concrete effectively for recycling purpose, where possible;
· Implement a trip-ticket system
for each works contract to ensure that the disposal of C&D materials are
properly documented and verified; and
· Implement an enhanced Waste
Management Plan similar to ETWBTC (Works) No. 19/2005 – “Environmental
Management on Construction Sites” to encourage on-site sorting of C&D
materials and to minimize their generation during the course of construction.
|
Good site
practice to minimize the waste generation and recycle the C&D materials
as far as practicable so as to reduce the amount for final disposal
|
Contractor
|
All construction
sites
|
Construction
stage
|
· Land (Miscellaneous
Provisions) Ordinance
· Waste Disposal Ordinance
· ETWB TCW No. 19/2005
|
Implemented
|
|
S7.5.1
|
WM3
|
C&D Waste
· Standard formwork or
pre-fabrication should be used as far as practicable in order to minimize the
arising of C&D materials. The use of more durable formwork or plastic
facing for the construction works should be considered. Use of wooden
hoardings should not be used, as in other projects. Metal hoarding should be
used to enhance the possibility of recycling. The purchasing of construction
materials will be carefully planned in order to avoid over ordering and
wastage;
· The Contractor should recycle
as much of the C&D materials as possible on-site. Public fill and C&D
waste should be segregated and stored in different containers or skips to
enhance reuse or recycling of materials and their proper disposal. Where
practicable, concrete and masonry can be crushed and used as fill. Steel
reinforcement bar can be used by scrap steel mills. Different areas of the
sites should be considered for such segregation and storage.
|
Good site
practice to minimize the waste generation and recycle the C&D materials
as far as practicable so as to reduce the amount for final disposal
|
Contractor
|
All construction
sites
|
Construction
stage
|
· Land (Miscellaneous
Provisions) Ordinance
· Waste Disposal Ordinance
· ETWB TCW No. 19/2005
|
Implemented
|
|
S7.5.1
|
WM4
|
Excavated Contaminated Soils
· Details of the mitigation
measures on handling of the contaminated soil shall be referred to Section on
Land Contamination below.
|
The contaminated
soil will be
excavated for
on-site reuse
|
Contractor
|
PBH4
|
Prior to
commencement of
construction
works within the
contaminated
area
|
· Practice Guide (PG) for
Investigation and Remediation of Contaminated Land
· GN/GM for land contamination
|
Implemented
|
|
S7.5.1
|
WM5
|
Land-based Sediment
· All construction plant and
equipment shall be designed and maintained
to minimize the risk of silt, sediments, contaminants or other pollutants being released into
the water column or
deposited in the
locations other than designated location;
· All vessels shall be sized
such that adequate draft is maintained between vessels and the sea bed at all
states of the tide to ensure
that undue turbidity is not generated by turbulence from vessel movement or propeller wash;
· Before moving the vessels
which are used for transporting dredged
material, excess material shall be cleaned from the decks and exposed fittings of vessels and
the excess materials shall
never be dumped into the sea except at the approved locations;
· Adequate freeboard shall be
maintained on barges to ensure that decks are not washed by wave action.
· The Contractors shall monitor
all vessels transporting material to ensure that no dumping outside the approved location takes place. The Contractor shall keep and
produce logs and other records
to demonstrate compliance and that journeys are consistent with designated locations and
copies of such records shall
be submitted to the engineers;
· The Contractors shall comply
with the conditions in the dumping license.
· All bottom dumping vessels
(Hopper barges) shall be fitted with tight fittings seals to their bottom openings to prevent leakage
of material;
· The material shall be placed
into the disposal pit by bottom dumping;
· Contaminated marine mud shall
be transported by spit barge of not
less than 750m3 capacity and capable of rapid opening and discharge at the disposal site;
· Discharge shall be undertaken rapidly,
and the hoppers shall be closed
immediately. Material adhering to the sides of the hopper shall not be washed out of the hopper and
the hopper shall remain closed until the barge
returns to the disposal site.
· For Type 3 special disposal
treatment, sealing of contaminant with geosynthetic containment before dropping designated mud pit would be a possible arrangement.
A geosynthetic containment method is a method
whereby the sediments are sealed
in geosynthetic containers and, the containers would be dropped into the designated contaminated
mud pit where they
would be covered
by further mud disposal and later by the mud pit capping at the disposal site, thereby
fulfilling the requirements for
fully confined mud disposal.
|
To control
pollution due to marine sediment
|
Contractor
|
Along CKR
alignment
|
Construction
stage
|
· ETWB TCW No. 34/2002
|
Implemented
|
|
S7.5.1
|
WM6
|
Chemical Waste
· Chemical waste that is
produced, as defined by Schedule 1 of the Waste Disposal (Chemical Waste)
(General) Regulation, should be handled in accordance with the Code of
Practice on the Packaging, Labelling and Storage of Chemical Wastes;
· Containers used for the
storage of chemical wastes should be suitable for the substance they are
holding, resistant to corrosion, maintained in a good condition, and securely
closed, have a capacity of less than 450 L unless the specification has been
approved by EPD, and display a label in English and Chinese in accordance
with instructions prescribed in Schedule 2 of the regulation;
· The storage area for chemical
wastes should be clearly labelled and used solely for the storage of chemical
waste, enclosed on at least 3 sides, have an impermeable floor and bunding of
sufficient capacity to accommodate 110% of the volume of the largest
container or 20% of the total volume of waste stored in that area, whichever
is the greatest, have adequate ventilation, covered to prevent rainfall
entering, and arranged so that incompatible materials are adequately
separated;
· Disposal of chemical waste
should be via a licensed waste collector, be to a facility licensed to
receive chemical waste, such as the Chemical Waste Treatment Centre which
also offers a chemical waste collection service and can supply the necessary
storage containers, or be to a reuser of the waste, under approval from EPD.
|
Control the
chemical waste and ensure proper storage, handling and disposal
|
Contractor
|
All construction
sites
|
Construction
stage
|
· Waste Disposal (Chemical
Waste) (General) Regulation
· Code of Practice on the
Packaging, Labelling and Storage of Chemical Waste
|
Implemented
after observation
|
|
S7.5.1
|
WM7
|
General Refuse
· General refuse generated
on-site should be stored in enclosed bins or compaction units separately from
construction and chemical wastes;
· A reputable waste collector
should be employed by the Contractor to remove general refuse from the site,
separately from construction and chemical wastes, on a daily basis to
minimize odour, pest and litter impacts. Burning of refuse on construction
sites is prohibited by law.
· Aluminum cans are often
recovered from the waste stream by individual collectors if they are segregated
and made easily accessible. Separate labelled bins for their deposit should
be provided if feasible;
· Office wastes can be reduced
through the recycling of paper if volumes are large enough to warrant
collection. Participation in a local collection scheme should be considered
by the Contractor.
|
Minimize
production of the general refuse and avoid odour, pest and litter impacts
|
Contractor
|
All construction
sites
|
Construction
stage
|
· Waste Disposal Ordinance
|
Implemented
|
|
Land Contamination
|
|
S8.9 & Appendix 8.4
|
LC2
|
Excavation of the Contaminated
Soil
· Prior to commencement of the
excavation works at the contamination zone, the zone should be clearly marked
out on site and the surface levels recorded. Excavation of contaminated
material should be undertaken using dedicated earth-moving plant.
· The excavated contaminated
soils would be stockpiled at designated area on site and covered by sheet to
prevent dispersion of contamination during stockpiling.
· The Contractor should pay
attention to the selection of suitable groundwater lowering schemes and
discharge points if the groundwater table is higher than the contaminated
soils during excavation. The Contractor should also obtain a valid Water
Pollution Control Ordinance (WPCO) discharge licence from EPD where
applicable.
|
The contaminated
soil will be
excavated for
on-site reuse
|
Contractor
|
PBH4
|
Prior to
commencement of construction works within the contaminated area
|
· Practice Guide (PG) for
Investigation and Remediation of Contaminated Land
· Guidance Notes for
Contaminated Land Assessment and Remediation
· Guidance Manual for Use of
Risk-Based Remediation Goals (RBRGs) for Contaminated Land Management
|
N/A
|
|
S8.9 & Appendix 8.4
|
LC3
|
· Following completion of the
excavation to the specified depth, at least one sample from the base of the
excavation and four
samples evenly
distributed along the boundary of the excavation shall be taken for a closure
assessment testing.
The acceptance
criterion is shown below:
|
Locations
|
Testing requirement
|
Acceptance Criteria
|
|
PBH4
|
PCBs
|
RBRGs (Public Park)
|
· If the results of analysis
below the RBRGs (Public Park), no further excavation will be required.
If the analysis indicates
presence of contamination (i.e. noncompliance of the acceptance criteria), further excavation
shall be carried out in 0.5m increment
vertically and/or horizontally depending
on the location(s) of the sample(s) which has exceeded the acceptance criteria. Further
sampling shall also be conducted
for compliance testing. The process of excavation,
sampling and compliance
testing should continue until all contaminated materials are removed and should be supervised by a Land Contamination Specialist.
|
N/A
|
|
Appendix 8.4
|
LC4
|
A Remediation Report (RR) to demonstrate adequate clean-up shall
be prepared and submitted to EPD for endorsement prior to the commencement of
any construction/development works within the sites. No
construction/development works shall be carried out prior to the endorsement
of the RR by EPD.
|
N/A
|
|
Hazard to Life
|
|
S9.18
|
H8
|
The driver and his assistant
should be physically healthy, experienced and have good safe driving
records. The driver should hold a proper driving licence for the approved
transport truck. Dedicated training programme and regular road safety
briefing sessions/ workshops should be provided to enhance their safe driving
attitude and practice. Smoking should be strictly prohibited.
|
To reduce the risk during explosives
transport
|
Contractor
|
Works areas at which explosives would be
used
|
Construction stage
|
-
|
N/A
|
|
S9.18
|
H9
|
Emergency response plans in
case of road accident should be prepared and implemented. The driver and his
assistant should be familiar with the emergency procedures including
evacuation, and proper communication/ fire-fighting equipment should be
provided to the driver and his assistant.
|
To reduce the risk during explosives
transport
|
Contractor
|
Works areas at which explosives would be
used
|
Construction stage
|
-
|
N/A
|
|
Landscape &
Visual
|
|
S10.10.1 Table 10.11
|
LV3
|
Good Site Management
· Large temporary stockpiles of
excavated material shall be covered with unobtrusive sheeting to prevent dust
and dirt spreading to adjacent landscape areas and vegetation, and to create
a neat and tidy visual appearance.
· Construction plant and building
material shall be orderly and carefully stored in order to create a neat and
tidy visual appearance.
|
Minimize visual impact
|
Contractor
|
Within Project site
|
Construction stage
|
-
|
Implemented
|
|
S10.10.1
Table 10.11
|
LV4
|
Screen Hoarding
· Decorative screen hoarding
should be erected to screen the public from the construction area. It should
be designed to be compatible with the existing urban context.
|
Minimize visual impact
|
Contractor
|
Within Project site
|
Construction stage
|
-
|
Implemented
|
|
S10.10.1 Table 10.11
|
LV5
|
Lighting Control during
Construction
· All lighting in the
construction site shall be carefully controlled to minimize light pollution
and night-time glare to nearby residencies and GIC. The Contractor shall
consider other security measures, which shall minimize the visual impacts.
|
Minimize visual impact
|
Contractor
|
Within Project site
|
Construction stage
|
-
|
Implemented
|
|
S10.10.1 Table 10.11
|
LV6
|
Erosion Control
· The potential for soil erosion
shall be reduced by minimizing the extent of vegetation disturbance on site
and by providing a protective cover over newly exposed soil.
|
Minimize
landscape impact
|
Contractor
|
Within Project
site
|
Construction
stage
|
-
|
Implemented
|
|
S10.10.1 Table 10.11
|
LV7
|
Tree Protection &
Preservation
· Carefully protected during
construction. Tree protection measures will be detailed at the Tree Removal
Application stage and plans submitted to the relevant Government Department
for approval in due course in accordance with ETWB TC no. 3/2006.
|
Minimize
landscape and visual impact
|
Contractor
|
Within Project
site
|
Construction
stage
|
· ‘Guidelines for Tree Risk
Management and Assessment Arrangement on an Area Basis and on a Tree Basis’,
Greening, Landscape and Tree Management (GLTM) Section, DEVB
· Latest recommended
horticultural practices from GLTM Section, DEVB
|
Implemented
|
|
S10.10.1 Table 10.11
|
LV8
|
Tree Transplantation
· For trees unavoidably affected
by the Project that have to be removed, where practical transplantation will
be chosen as the top priority method of removal. If this is not possible or
practical compensatory planting will be provided for trees unavoidably felled
(See LV10). For trees unavoidably affected by the Project works that are
transplanted, transplantation must be carried out in accordance with ETWB TCW
2/2004 and 3/2006.
|
Minimize
landscape and visual impact
|
Contractor
|
Within Project
site and designated off-site locations
|
Prior to
Construction stage
|
· ETWB TCW 3/2006
· Latest recommended
horticultural practices from Greening, Landscape and Tree Management (GLTM)
Section, DEVB
· ETWB TCW 2/2004
|
N/A
|
|
S10.10.1 Table 10.11
|
LV9
|
Compensatory Planting
· For trees unavoidably affected
by the Project that have to be removed, where practical transportation will
be chosen as the top priority method of removal but if this is not possible
or practical compensatory planting will be provided for trees unavoidably
felled. All felled trees shall be compensated for by planting trees to the
satisfaction of relevant Government projects. Required numbers and locations
of compensatory trees shall be determined and agreed separately with
Government during the Tree Felling Application process under ETWBTC 3/2006.
· Compensatory tree planting may
be incorporated into public open spaces and along roadside amenity areas
affected by the construction works and therefore be part of the bigger wider
planting plans. Onsite compensation planting is preferred but if necessary,
additional receptor sites outside the Works Area shall be agreed separately
with Government during the Tree Felling Application process.
|
Minimize visual
impact and also enhance landscape
|
Contractor
|
Within Project
site
|
Construction
stage
|
· ETWB TCW 3/2006
· Latest recommended
horticultural practices from Greening, Landscape and Tree Management (GLTM)
Section, DEVB
· ETWB TCW 2/2004
|
N/A
|
|
S10.10.1
Table
10.11
|
LV10
|
Screen Planting
· Tall screen/buffer trees,
shrubs and climbers should be planted, in so far as is possible, to soften
and screen proposed structures such as roads and central strip, vertical
edges and buildings and to enhance streetscape greening effect where
appropriate. Indiscriminate use of trees for screening must be avoided and
the principle of ‘right tree for the right place’ must be followed. This
detail will be provided at the Detailed Design stage. This measure may
additionally form part of the compensatory planting and will improve and
create a pleasant pedestrian environment.
|
Minimize visual
impact and
also enhance
landscape.
|
Contractor
|
Within
Project Site
|
Construction
Phase
|
· Guidelines on Greening of
Noise Barriers, issued April 2012, GLTMS, DevB
· ETWB TCW 2/2004
|
N/A
|
|
S10.10.1
Table
10.11
|
LV12
|
Reinstatement
· All works areas, excavated
areas and disturbed areas for tunnel construction and temporary road
diversion or any other proposed works shall be reinstated to former
conditions or better, with reasonable landscape treatment and to the
satisfaction of the relevant Government departments. (Specific mitigation for
disturbance to public open space is detailed separately under LV14)
|
Minimize landscape impact
|
Contractor
|
Within
Project Site
|
Construction
Phase
|
· N/A
|
N/A
|
|
Cultural
Heritage Impact (Construction Phase)
|
|
S11.4.4
|
CH1
|
The
contractor should be alerted during the construction on the possibility of
locating archaeological remains and as a precautionary measure, AMO shall be
informed immediately in case of discovery of antiquities or supposed
antiquities in the subject sites.
|
To preserve any cultural heritage items
which may be removed and damaged by the excavation
|
Contractor
|
During construction works for cut and
cover tunnels
|
Construction stage
|
· AMOs requirements
|
Implemented
|
|
EM&A
Project
|
|
S13.2
|
EM1
|
An
Independent Environmental Checker needs to be employed as per the EM&A
Manual
|
Control EM&A Performance
|
Highways Department
|
All construction sites
|
Construction stage
|
· EIAO Guidance Note No. 4/2010
· TM-EIAO
|
Implemented
|
|
S13.2-13.4
|
EM2
|
· An Environmental Team needs to
be employed as per the EM&A Manual;
· Prepare a systematic
Environmental Management Plan to ensure effective implementation of the
mitigation measures;
· An environmental impact
monitoring needs to be implemented by the Environmental Team to ensure all
the requirements given in the EM&A Manual are fully complied with.
|
Perform environmental monitoring &
auditing
|
Highways Department/ Contractor
|
All construction sites
|
Construction stage
|
· EIAO Guidance Note No. 4/2010
· TM-EIAO
|
Implemented
|
|
|
|
|
|
|
|
|
|
|
Appendix G
Monitoring Schedule of the Reporting Month
Appendix H
Calibration Certificates
(Air Monitoring)
Appendix I
The Certification
of Laboratory with HOKLAS Accredited Analytical Tests
Appendix J
Location Plan of
Air Quality Monitoring Station
Appendix K
Monitoring Data
(Air Monitoring)
Location:
|
Hong Kong International Trade and
Exhibition Centre (E-A1)
|
|
Monitoring date:
|
2, 8, 14, 20, 23 and 29 December 2022
|
|
Parameter:
|
TSP 1-hour
|
|
Other Factors:
|
Nearby traffic
|
|
Date
|
1-hour TSP (μg/m3)
|
|
Weather
|
Start Time
|
1st hour
(μg/m3)
|
2nd hour
(μg/m3)
|
3rd hour
(μg/m3)
|
|
2/12/2022
|
Fine
|
12:26
|
65
|
69
|
71
|
|
8/12/2022
|
Fine
|
12:30
|
66
|
63
|
68
|
|
14/12/2022
|
Fine
|
12:24
|
70
|
64
|
67
|
|
20/12/2022
|
Fine
|
12:29
|
65
|
69
|
63
|
|
23/12/2022
|
Fine
|
12:21
|
63
|
68
|
64
|
|
29/12/2022
|
Fine
|
12:24
|
66
|
67
|
65
|
Figure 1: Graphical
Illustration of Measured 1-hour TSP (μg/m3) Levels at E-A1
|
Location:
|
Hong Kong International Trade and
Exhibition Centre (E-A1)
|
|
Monitoring date:
|
2, 8, 14, 20, 23 and 29 December 2022
|
|
Parameter:
|
TSP 24-hour
|
|
Other Factors:
|
Nearby traffic
|
Figure 2:
Graphical Illustration of Measured 24-hour TSP (μg/m3) Levels
at E-A1
WIND DIRECTION DATA FOR 2, 3, 8, 9, 14, 15, 20, 21, 23, 24, 29 and 30 Dec 2022
WIND SPEED DATA FOR 2, 3, 8, 9, 14, 15, 20,
21, 23, 24, 29 and 30 Dec 2022
Appendix L
Waste Flow Table
Appendix M
Statistics on Complaint, Notifications of Summons and Successful
Prosecutions
Statistical Summary of Exceedances
|
Air Quality
|
|
Location
|
Action Level
|
Limit Level
|
Total
|
|
E-A1
|
0
|
0
|
0
|
Statistical Summary of
Environmental Complaints
|
Reporting Period
|
Environmental Complaint
Statistics
|
|
Frequency
|
Cumulative
|
Complaint Nature
|
|
1 December 2022
-
31 December 2022
|
0
|
2
|
N/A
|
Statistical Summary of
Environmental Non-compliance
|
Reporting Period
|
Environmental Non-compliance
Statistics
|
|
Frequency
|
Cumulative
|
Details
|
|
1 December 2022
-
31 December 2022
|
0
|
0
|
N/A
|
Statistical Summary of
Environmental Summons
|
Reporting Period
|
Environmental Summons
Statistics
|
|
Frequency
|
Cumulative
|
Details
|
|
1 December 2022
-
31 December 2022
|
0
|
0
|
N/A
|
Statistical Summary of
Environmental Prosecution
|
Reporting Period
|
Environmental Prosecution
Statistics
|
|
Frequency
|
Cumulative
|
Details
|
|
1 December 2022
-
31 December 2022
|
0
|
0
|
N/A
|
Appendix N
Monitoring Schedule of the Coming Month
1.
This is the 27th Monthly Environmental
Monitoring and Audit (EM&A) Report prepared by the Environmental Team (ET),
Cinotech Consultants Ltd., for Contract No. HY/2019/13 “Central Kowloon Route –
Buildings, Electrical and Mechanical Works”. This report summarized the
monitoring results and audit findings of the EM&A programme under the
issued EP No. EP-457/2013/D, and in accordance with the EM&A programme in
Kai Tak East Area during the reporting period from 1st December 2022 – 31st December 2022.
2.
The major site activities undertaken in Kai Tak
East Area in the reporting month included:
·
Excavation & sub-structure works.
3.
Environmental monitoring for the Project was
performed in accordance with the EM&A Manual and the monitoring results
were checked and reviewed. Joint weekly site inspections with the
representative of ET, Engineer Representative and the Contractor were conducted
on 6, 13, 20 & 28 December 2022, whereas joint site inspection with the
representative of IEC was conducted on 20 December2022. The implementation of
the environmental mitigation measures, Event and Action Plans and environmental
complaint handling procedures were also checked.
4.
A summary of the non-compliance (exceedance)
during the reporting month (December 2022) and the investigation results and/or follow-up actions is
provided below:
Air Quality
Monitoring
·
No Action/Limit Level exceedance for 1-hour TSP
was recorded.
·
No Action/Limit Level exceedance for 24-hour
TSP was recorded.
Landscape and Visual Monitoring
·
No non-conformity for landscape and visual was
recorded.
5.
Summary of complaint/summons/prosecution in the
reporting month is tabulated in Table I.
|
Event
|
Event Details
|
Follow-up/
Remedial Actions
|
Status/
Remarks
|
|
Number
|
Brief
Description
|
|
Complaints Received
|
1
|
Dust Nuisance from the site office at Muk
On Street on 7/12/2022 (Wednesday)
|
Enhance mitigation measures including watering more
frequently and install additional water sprinkles and hose for watering
|
The Complaint Investigation Report is being sent to
EPD.
|
|
Notification of Summons and Prosecutions Received
|
0
|
-
|
-
|
-
|
|
|
|
|
|
|
6.
There were no reporting changes during the
reporting month.
7.
The key works or activities will be anticipated
in the coming two months are as
follows:
·
Excavation & sub-structure works.
1.1
Central Kowloon Route (CKR) is a 4.7km long dual
3-lane trunk road across Central Kowloon linking Yau Ma Tei Interchange in West
Kowloon and the road network at Kai Tak Development and Kowloon Bay in East
Kowloon. The underground tunnel section will be about 3.9km long. In
particular, an underground tunnel of about 370m long in Kowloon Bay to the
north of To Kwa Wan Typhoon Shelter will be constructed.
1.2 The Environmental Impact Assessment Report for Central Kowloon Route
– Design and Construction (Register No.: AEIAR-171/2013) was approved under the
Environmental Impact Assessment Ordinance (EIAO) on 11 July 2013. An
Environmental Permit (EP No.: EP- 457/2013) was issued on 9 August 2013.
Variations of Environmental Permit (VEP) was subsequently applied and an EP (EP
No. EP-457/2013/C) was issued on 16 January 2017. The latest EP (EP No.
EP-457/2013/D) was issued by Environmental Protection Department (EPD) on 15
June 2021.
1.3 The construction of the CKR had been divided into different
sections. This Contract No. HY/2019/13 – Central Kowloon Route – Buildings,
Electrical and Mechanical Works (“The Project”) will include the architectural,
civil and structural construction works of Yau Ma Tei
Ventilation Building (YVB), Ho Man Tin Ventilation Building (HVB), Kai Tak
Ventilation Building (KVB) and Central Kowloon Route Administration Building
(ADB) for the CKR. The landscaping and electrical and
mechanical (E&M) works within the building sites will be involved as well.
1.4 Cinotech Consultants Limited was assigned as the Environmental Team (ET) to undertake the EM&A works for the Project. The construction of this Contract was
commenced on 12th December 2020.
1.5 This is the 27th Monthly EM&A Report which summarises the impact monitoring results and
audit findings for the EM&A programme in Kai Tak East Area during the
reporting period from 1st December 2022 – 31st
December 2022. The Kai Tak East Area site layout plan
for the Project is shown in Figure 1.1.
1.6 Different Parties with different levels of
involvement in the project organization include:
Ÿ Project Proponent – Highways Department (HyD)
Ÿ Engineer
Representative (ER) – Arup – Mott MacDonald Joint Venture (AMMJV)
Ÿ Environmental Team (ET) – Cinotech Consultants Limited (Cinotech)
Ÿ Independent Environmental Checker (IEC) – Environmental Resources
Management - Hong Kong Limited (ERM)
Ÿ Contractor
– Gammon Construction Limited (GCL)
1.7 The key contacts of
the Project are shown in Table 1.1.
|
Party
|
Role
|
Contact Person
|
Phone No.
|
|
AMMJV
|
Engineer Representative
|
Mr. Dennis Yu
|
3695 0419
|
|
Cinotech
|
Environmental Team
|
Ms. Betty Choi
|
2151 2072
|
|
ERM
|
Independent Environmental Checker
|
Ms. Mandy To
|
2271 3113
|
|
GCL
|
Contractor
|
Mr. Harry Lam
|
9353 6141
|
1.8
The Organizational Structure for Environmental
Management is shown in Figure 1.2.
1.9 The construction programme is presented in Appendix A.
1.10 The major site activities undertaken in the reporting month
included:
·
Excavation & sub-structure works.
1.11 The EM&A programme requires air quality monitoring, landscape and visual monitoring and environmental site audit. The EM&A requirements for each
parameter are described in the following sections, including:
Ÿ Environmental requirements and mitigation measures, as recommended
in the EM&A Manual under the EP.
1.12 The advice on the implementation status of environmental protection
and pollution control/mitigation measures is summarized in Section 6 of this
report.
1.13 All permits/licenses
obtained for the Project are summarized in Table 1.2.
|
Permit / License No.
|
Valid Period
|
Status
|
|
From
|
To
|
|
Environmental Permit (EP)
|
|
EP-457/2013/D
|
15 Jun 2021
|
N/A
|
Valid
|
|
Notification
of Construction Works under Air Pollution Control Ordinance (APCO)
|
|
457346
|
19 Jun 2020
|
End of Project
|
Valid
|
|
Billing
Account for Construction Waste Disposal
|
|
7037679
|
26 Jun 2020
|
N/A
|
Valid
|
|
Registration
of Chemical Waste Producer – Kai Tak
|
|
5211-286-G2347-54
|
15 Jul 2020
|
N/A
|
Valid
|
|
Wastewater
Discharge Licence - Kai Tak
|
|
WT00037178-2020
|
18 Dec 2020
|
31 Dec 2025
|
Valid
|
|
Construction
Noise Permit - Kai Tak Site (General Works [grouting, piling])
|
|
GW-RE0968-22
|
30 Sep 2022
|
29 Mar 2023
|
Valid
|
|
Construction
Noise Permit for Works at 2nd office
|
|
GW-RE1014-22
|
3 Oct 2022
|
1 Apr 2023
|
Valid
|
|
Wastewater
Discharge Licence at 2nd office
|
|
WT00041796-2022
|
20 Sep 2022
|
30 Sep 2027
|
Valid
|
2.1
As all of the air quality (1-hour TSP and
24-hour TSP) monitoring works in Kai Tak East Area are currently covered under
the Contract No. HY/2018/02 (Central Kowloon Route - Kai Tak East), the
corresponding monitoring parameters, equipment, methodology, results and
established Action and Limit Levels could be referred to Section 3 of the
EM&A report for Contract No. HY/2018/02 during this reporting month.
Observations
2.2 No Action/Limit Level exceedance was recorded for all 1-hour TSP and
24-hour TSP monitoring in the reporting month.
2.3 Site audits were carried out on a weekly basis to monitor and audit the
timely implementation of air quality mitigation measures within the site
boundaries of this Project. The summary of site audits is shown in Table 6.1 of this report.
Monitoring
Requirements
3.1
As no Noise
Sensitive Receiver (NSR) is located within 300m from the boundary of Kai Tak
East Area, no construction noise monitoring is required in Kai Tak East Area
for this Project.
Observations
3.2
Site audits were carried out on a weekly basis
to monitor and audit the timely implementation of construction noise mitigation
measures within the site boundaries of this Project. The summary of site audits is shown in Table
6.1 of this report.
4.1 Waste generated from this Project includes inert construction and
demolition (C&D) materials and non-inert C&D materials. Inert C&D
waste includes soil, broken rock, broken concrete and building debris, while
non-inert C&D materials are made up of C&D waste which cannot be reused
or recycled and has to be disposed of at the designated landfill sites.
4.2
The quantities of different types of waste
generated in the reporting month are summarised in Table 4.1. Details of the
amount of wastes generated by the major site activities of this Project during
the reporting month is shown in Appendix B.
Table 4.1
Quantities of Waste Generated from the Project
|
Quantity
|
|
|
Inert C&D Materials
|
Non-inert C&D Materials
|
|
Reporting Period
|
Total Quantity
Generated
(in '000m3)
|
Disposed as
Public Fill (in '000m3)
|
Others, e.g.
general refuse (in '000m3)
|
Metals
(in '000kg)
|
Paper/cardboard
Packaging
(in '000kg)
|
Plastics
(in '000kg)
|
Chemical waste (in '000kg)
|
|
December
2022
|
9.817
|
9.035
|
0.076
|
0
|
0
|
0
|
0
|
4.3 Site audits were carried out on a weekly basis to monitor and audit
to ensure that proper storage, transportation, and disposal practices of waste
materials generated during construction activities, such as construction and
demolition (C&D) materials and general refuse are being implemented. The summary of site audits is shown in Table
6.1 of this report. The implementation
status of the waste/chemical management measures in the reporting period are
summarized in Appendix C.
5
landscape and visual
5.1
According to the EM&A Manual, site audits would be undertaken during the construction phase of the
Project to check that the proposed landscape and visual mitigation measures are
properly implemented and maintained as per their intended objectives. Site
inspections of the implementation of landscape and visual mitigation measures would be undertaken at least once
every two weeks during the construction period.
5.2 Bi-weekly inspection of the implementation of landscape and visual
mitigation measures within the site boundaries of this Project was conducted on
6 & 20 December 2022. The implementation status of the landscape and visual
mitigation measures in the reporting period are summarized in Appendix C.
The summary of observations and recommendations made
for landscape and visual mitigation measures during site audits are shown in Table 6.1 of this report.
5.3 No non-compliance of the landscape and visual impact was recorded in
the reporting month.
6.1 Site audits were carried out on a weekly basis to monitor the timely
implementation of proper environmental management practices and mitigation
measures in the Project site.
6.2 Site audits were conducted on 6, 13, 20 & 28 December 2022 in
the reporting month. Joint site inspection with the representative of IEC was conducted on 20 December 2022. No non-compliance was observed
during the site audit.
6.3 According to Environmental Permit, the approved EIA Report (Register No.:
AEIAR-171/2013), and the EM&A Manual of the
Project, the mitigation measures detailed in the documents are recommended to
be implemented during the construction phase. An Environmental Mitigation Implementation
Schedule (EMIS) is provided in Appendix C.
6.4
The ET weekly site inspections were carried out
during the reporting month and the observations and follow-up actions in Kai
Tak East Area are summarized in Table 6.1.
Table 6.1 Observations and Recommendations
of Site Inspections
|
Parameters
|
Date
|
Observations
|
Follow-up
Actions
|
|
Water Quality
|
6 Dec 2022
|
Ponding water should be removed at KVB
site
|
Ponding water has been removed.
|
|
Air Quality
|
N/A
|
No environmental deficiency was
identified in the reporting period.
|
N/A
|
|
Noise
|
N/A
|
No environmental deficiency was
identified in the reporting period.
|
N/A
|
|
2.1
Waste /
Chemical Management
|
N/A
|
No environmental deficiency was
identified in the reporting period.
|
N/A
|
|
Land Contamination
|
N/A
|
No environmental deficiency was
identified in the reporting period.
|
N/A
|
|
|
N/A
|
No environmental deficiency was
identified in the reporting period.
|
N/A
|
|
|
N/A
|
No environmental deficiency was
identified in the reporting period.
|
N/A
|
Implementation
Status of Event and Action Plans
6.5
The Event and Action Plans for noise could be
referred to Appendix D of the EM&A report in
Contract No. HY/2018/02. One complaint was recorded in the reporting month.
Enhance dust mitigation measures as recommended in the complaint investigation
report has been implemented by the Contractor.
Air Quality
Monitoring
·
No Action/Limit Level exceedance for 1-hour TSP
was recorded.
·
No Action/Limit Level exceedance for 24-hour
TSP was recorded.
Landscape and
Visual Monitoring
·
No non-conformity for landscape and visual was
recorded.
6.6
One environmental complaint and no warning, notifications of summons and
successful prosecutions was received in the reporting month. The summary of
environmental complaint, warning, summon and notification of successful
prosecution for the Project is presented in Appendix D.
6.7
Status of required submission under
EP-457/2013/D during the reporting period are summarized in Table 6.2.
Table 6.2 Status of Required Submission under Environmental
Permit
|
EP Condition
(EP-457/2013/D)
|
Submission
|
Submission Date
|
|
Condition 3.4
|
Monthly EM&A Report
(November 2022)
|
|
7
future Key issues
7.1
Major site activities
undertaken for the coming two months include:
§ Excavation
& Sub-structure Works.
7.2
Key environmental issues in the coming two
months include:
Ÿ Stockpile accumulation on-site;
Ÿ Water spraying for dust generating activities and on haul road;
Ÿ Wastewater and runoff discharge from site;
Ÿ Coverage of open manholes to avoid dirty runoff to drainage system;
Ÿ Noise from operation of the equipment, especially for excavation
works and machinery onsite;
Ÿ Accumulation of general refuse and construction waste on-site;
Ÿ Proper storage of construction materials on-site; and
Ÿ Storage of chemicals/fuel and chemical waste/waste oil on-site.
8.1
This is the 27th
Monthly EM&A
Report which presents the
EM&A works undertaken in Kai Tak East Area during the reporting month from
1st December 2022 – 31st December 2022 in accordance with
the EM&A Manual and the requirements under the EP.
Air Quality
Monitoring
8.2 No Action/Limit Level exceedance was recorded for all 1-hour and
24-hour TSP monitoring in the reporting month.
Landscape and
visual
8.3 No non-compliance was recorded in the
reporting month.
Site Audit
8.4
4 ET joint weekly environmental site inspections
were conducted in the reporting month. Joint weekly
site inspections with the representative of ET, Engineer Representative and the
Contractor were conducted on 6, 13, 20 & 28 December 2022, whereas joint site
inspection with the representative of IEC was conducted on 20 December
2022. All environmental deficiencies observed during site inspections were
rectified by the Contractor.
Complaint, Notification
of Summons and Successful Prosecution
8.5
One environmental complaint and no notifications
of summons and successful prosecutions were received in the reporting month.
Figure 1.1
Site
Layout Plan
Figure 1.2
Project Organisation for Environmental
Monitoring and Audit
Appendix A
Construction Programme
Appendix B
Summary of Waste Generation and Disposal
Records
Appendix C
Environmental Mitigation Implementation
Schedule (EMIS)
Appendix
D
Summaries of Environmental Complaint, Warning, Summon
and Notification of Successful Prosecution
